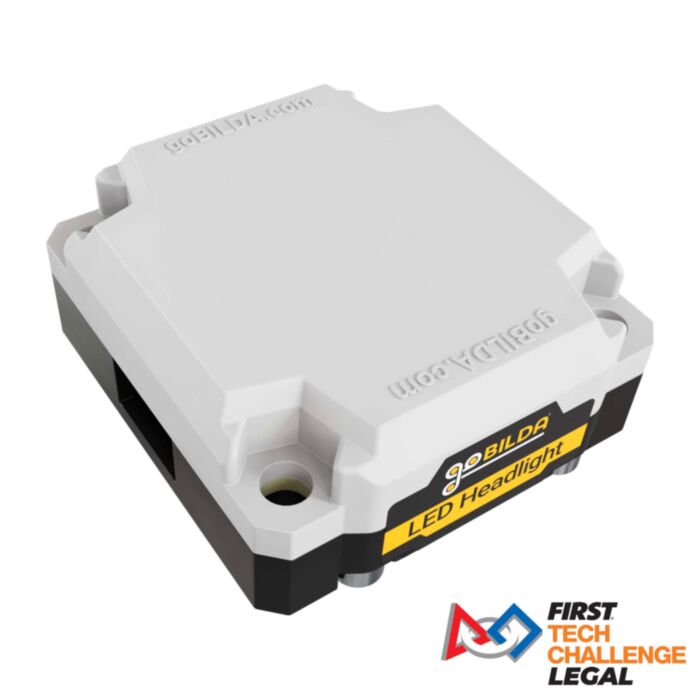

LED Headlight for FTC (275 Lumens, Dimmable, PWM Controlled)

SKU: GB-3118-0808-0003 Brand: goBilda

Light your robot’s way across the game field with the LED Headlight for FTC! Designed with the FIRST Tech Challenge in mind, this.....

$80.50 AUD, inc GST

$73.18 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 28 and Dec 05

Quantity Discounts:

6-12 $70.25 (exc GST)
12+ $68.05 (exc GST)

Light your robot’s way across the game field with the LED Headlight for FTC! Designed with the FIRST Tech Challenge in mind, this dimmable LED Headlight helps to illuminate the scenes that a robot's optics systems gathers visual data from—whether that optics system is a basic webcam, or high-end AI camera (like the HuskyLens).

Intelligent Illumination

Controlling this LED Headlight is as easy as controlling a servo! Just plug it into a servo port, and you’ll get fine-grained PWM control of the LED brightness. This allows you to dial-in the light for your computer-vision in a snap.

Providing consistent lighting to your robot increases the repeatability of its optic-centric actions during autonomous operation. The LED Headlight’s level of illumination is perfect for being able to be seen across a game field without being so bright you can’t look directly at it.

Input/Output Ports

The Headlight possesses two each of TJC8 connector ports and JST-PH connector ports. While they are FH-MC, all ports can act as either input or output ports, and all ports use PWM as their communication protocol.

Two TJC8 ports across two opposite sides allow for signals and power to be delivered to the Headlight via your servo wiring setup. The Headlight also has JST PH ports for connecting to controllers like the REV Control Hub. These ports are located such that when the Headlight is placed over another component’s 14mm hole, the JST PH ports are accessible through the hole.

Easy Attachment

The Headlight possesses four M4 thru-holes on the goBILDA® 32mm square pattern. Each thru-hole has a hex counterbore for the easy capture of hex head screws and locknuts.

Downloads

STEP File

Specs

Weight	36g (Includes wire and mounting hardware)
Input Voltage Range (Recommended)	5-15V
PWM Signal Voltage	3.3-5V
PWM Range	500-2500µsec
Input Connectors	TJC8 [FH-MC] x 2, 3-Pos JST PH [FH-MC] x 2
Included Hardware	20mm Length M4 Socket Head Screw x 4, M4 Nylock Nut x 4
Included Cable	3-Pos TJC8 [MH-FC] to 3-Pos JST PH [MH-FC] Adaptor (300mm Length)

This product is listed in:

goBILDA>ELECTRONICS>Lights
