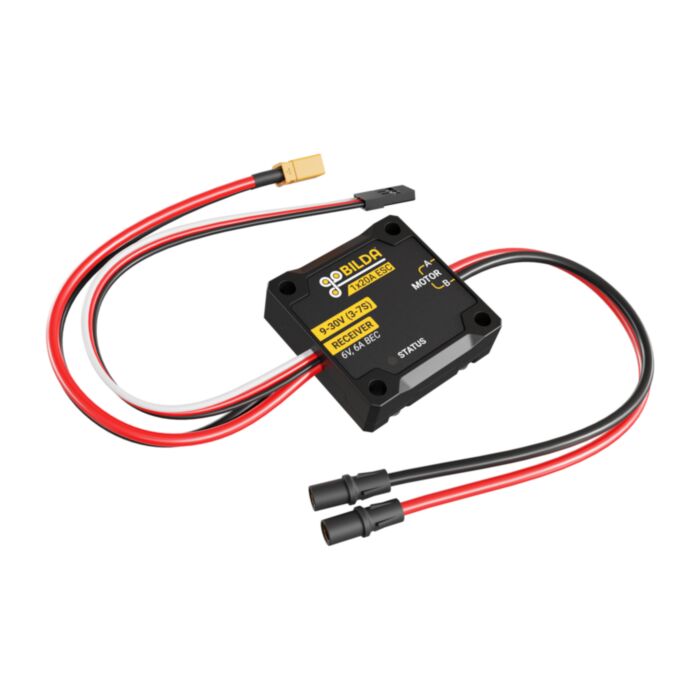

1x20A Motor Controller (9-30V Input)

SKU: GB-3105-0101-0020 Brand: goBilda

This motor speed controller is a compact, easy way to control the speed and direction of a brushed DC motor! Just plug in.....

$99.65 AUD, inc GST

$90.59 AUD, exc GST

Available with a lead time
Expect dispatch between Jun 16 and Jun 23

Quantity Discounts:

10+ $86.06 (exc GST)
25+ $81.54 (exc GST)

This motor speed controller is a compact, easy way to control the speed and direction of a brushed DC motor! Just plug in your motor, a battery (between 9V and 30V), and a receiver to get your motor moving.

Wiring

Receiver
If you are using an R/C receiver, simply plug this 3-wire connector into the desired channel. The built-in 6V BEC (which can supply 6A continually) will power your receiver via the red wire. It can also be plugged into a servo controller or an Arduino (via jumper wires) or anything that can produce a PWM signal. It responds proportionally to a signal between 1100 - 1900 microseconds. This range was chosen to allow most standard radio systems to achieve the full motor power without reprogramming.
9-30V In
Plug a battery or power supply (9-30V) into the XT30 connector. XT30 connectors are keyed, which prevents them from being plugged in backwards.
Motor
If you are rocking a Yellow Jacket, Saturn, or other motor which has 3.5mm bullet connectors, just plug it in! If your motor does not have bullet connectors, check out our bullet connector leads and adaptors. Brushed DC motors are reversible so you don't need to worry about plugging it in backwards. If the motor spins the wrong direction, just swap the red and black wires.

Mounting

The case has four holes, spaced on a 32mm square. This allows the motor controller to align with the 8mm grid pattern found throughout the goBILDA® lineup of parts. M4 attachment hardware is included to help you fasten it down to your project. If you have multiple motor controllers, you can stack them using longer M4 screws. If you're not working with goBILDA® parts, and just need to fasten the motor controller to a surface that is void of any holes, use the case as a template to mark the proper hole locations. The mounting holes have a 4mm diameter which is also compatible with #6 (yes, imperial) screws if your DIY project has you digging through random bits of hardware to piece your project together.

Protection

The board has safety features built in to protect it from silly wiring errors and/or punishment beyond what it should be asked to hold up to. While the XT30 connector itself is keyed, we know that sometimes input connectors get removed and/or replaced, so we added reverse-voltage protection. The board also has over-current protection that will kick in if your motor is pulling so much current that there's risk of damaging the board. In a similar fashion, if the motor controller gets too hot, it will shut down until the temperature reduces to a reasonable level. The case itself is another line of defense, protecting the electronics within from physical abuse as your project gets bashed around.

Safety Features

Reverse-Voltage Protection
Over-Current / Short-Circuit Protection
Over-Temperature Protection
Signal Arm Zone

Downloads

STEP File

Specs

Weight	52g (includes mounting hardware)
Channels	1
Compatible Motor Type	Brushed DC
Signal Input	R/C PWM
Signal Voltage	3.3 - 5V
PWM Range	1100 - 1900µs
Voltage Range	9 - 30V (3 - 7S)
Continuous Current	20A
Burst Current	30A
Power Connector	XT30 (FH-MC)
Motor Connector	3.5mm Bullet (MH-FC)
Signal Connector	2.54mm (0.1”) Pitch Female (TJC8)
BEC Voltage	6.2V
BEC Current	6A
BEC Burst Current	7.5A
Included Hardware	4 x 20mm Length M4 Socket Head Screw, 4 x M4 x 0.7mm Nylock Nut

This product is listed in:

goBILDA>MOTION>Motors>Motor Controllers
goBILDA>ELECTRONICS>Motor Controllers
goBILDA>ELECTRONICS>Motors>Motor Controllers
