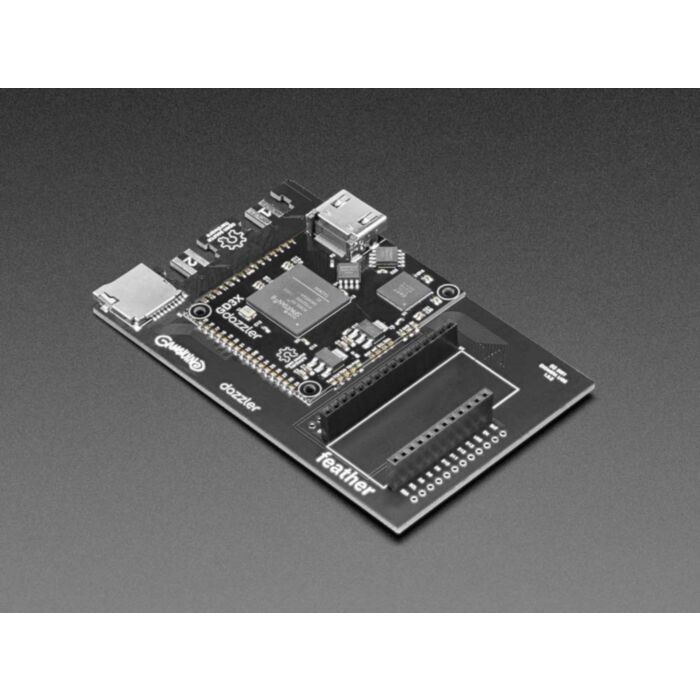

Gameduino 3X Dazzler for Feather M4 by Excamera Labs

SKU: ADA4969 Brand: Adafruit

The Gameduino 3X Dazzler is an Adafruit Feather M4-compatible underwing that outputs HD picture and sound to any HDMI display or TV.

$104.95 AUD, inc GST

$95.41 AUD, exc GST

Quantity Discounts:

5-10 $91.59 (exc GST)
10+ $88.73 (exc GST)

Out of Stock

Description

The Gameduino 3X Dazzler is an Adafruit Feather M4-compatible underwing that outputs HD picture and sound to any HDMI display or TV.

The Dazzler is ideal for game designers using CircuitPython, makers who want rich, responsive data and text visualizations, and anyone who wants superb visuals for their CircuitPython project.

The graphics and sound are generated by a powerful BT815 EVE embedded GPU. The shield also has two Wii Classic ports for a plug-and-play game console. With an easy-to-use graphics drawing API and dozens of samples and demos to use as starting points, it’s by far the most powerful Python-powered gaming system available today. There's documentation and examples for using the 'bteve` library, a C-accelerated SPI interface library for the graphics co-processor.

Every aspect of the design is open source and hackable:

the PCB design
the Verilog code for the HDMI, J1 CPU, and system peripherals
the J1 CPU running on the FPGA
the J1's firmware that drives the Dazzler's extra features

The board itself has additional "hacking" interfaces: a JTAG port for FPGA reloading, and a UART header for direct chat with the onboard FPGA. Its unique combination of tightly coupled GPU and FPGA opens up new creative possibilities. As a truly open platform, the Dazzler can be anything you want it to be.
