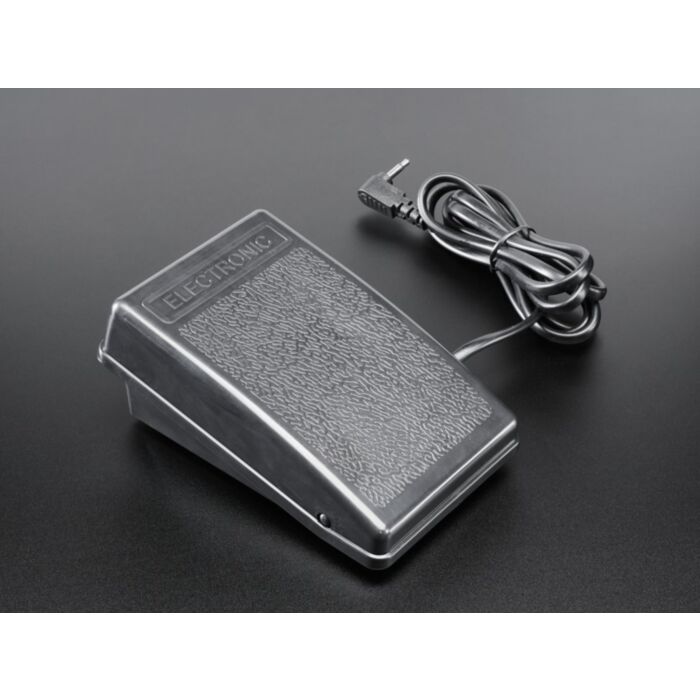

Foot Pedal Potentiometer - Sewing Machine Speed Controller

SKU: ADA3739 Brand: Adafruit

Adafruit have had a foot pedal switch in the store for a while but some people have contacted Adafruit asking if there was a way to retrofit it to perform variable speed control...

$68.35 AUD, inc GST

$62.14 AUD, exc GST

Quantity Discounts:

6-12 $60.27 (exc GST)
12+ $59.03 (exc GST)

Out of Stock

Adafruit have had a foot pedal switch in the store for a while but some people have contacted Adafruit asking if there was a way to retrofit it to perform variable speed control, like a potentiometer. And here it is! This is a Foot Pedal Potentiomenter (a.k.a Sewing Machine Speed Controller).

This is a really nice quality one, very sturdy, with a friendly 3.5mm 'audio' connector on the end, so it's incredibly easy to integrate into your project. You can use a 3.5mm terminal-block adapter, in-line wired jack, breadboard jack, or a panel mount jack. A lot of the cheap samples Adafruit looked at have a wall plug, are very low resistance (because they're meant to go in-line with the mains power) or are not very durable.

When no pressure is placed on the pedal, you'll read about 20 KO. When pressed down all the way, you'll read about 1 KO, and the resistance change is linear with the motion. Connect one side to ground, then the other side to a 10K resistor pull-up to your microcontroller's logic voltage. Then read the divided analog voltage, like you would with a photo-cell or other 'resistive' type sensor.

Technical Details

Power cord length: ~5ft
Pedal body: 135 x 85 x 56mm
Resistance: approx. 1KO - 20KO
Rated voltage: 15V DC
Rated current: 3mA max

Product Dimensions: 135.0mm x 85.0mm x 54.0mm / 5.3" x 3.3" x 2.1"

Product Weight: 188.0g / 6.6oz
