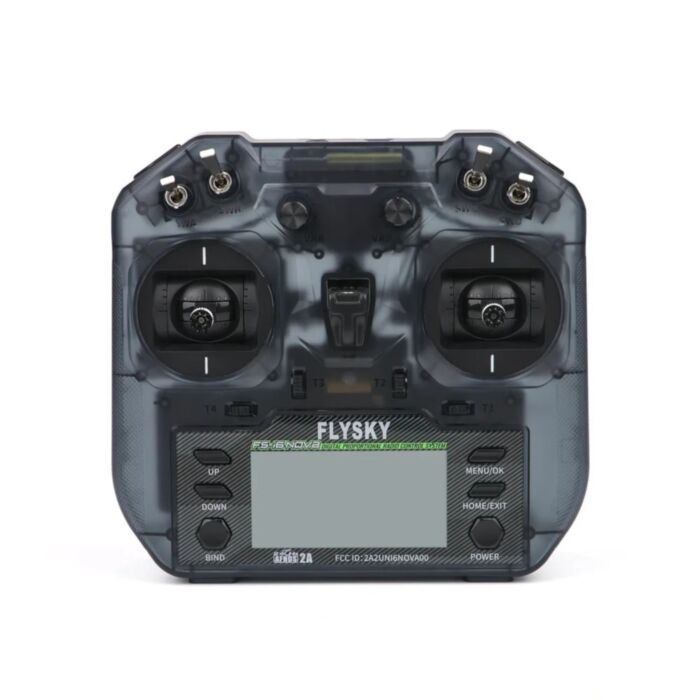

FlySky i6 Nova AFHDS 2A Transmitter - Grey Transparent

SKU: CE11240 Brand: FlySky

Command robots, cars, planes and helis with ten channels, then sharpen your skills on PC simulators over USB-C.

$96.99 AUD, inc GST
$88.17 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 09 and Dec 30

Quantity Discounts:

  • 8+ $81.87 (exc GST)

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

A classic hobby radio, reimagined with more controls and can be paired with a micro receiver sized for small FPV builds.

The original FS-i6 tops out at six channels, which runs short on bigger builds. The Nova has 12 physical controls that you can assign across 10 output channels.

Its ground range is over 500 m without RF interference, and it supports two-way communication. The transmitter works with any AFHDS 2A receiver, including the FS-X14S, FS-iA4B and FS-iA8X.

Power it with 4 × AA batteries (or rechargeable Eneloops) or a 2S lithium pack through the DuPont or JST power connectors. The radio has no built-in charging, so charge 2S packs externally.

Features

  • The right control for each function - three-position switches, latching and momentary push buttons, and full-range rotary knobs, all at 1024-step resolution.

  • Practise before you fly - the USB-C port connects to mainstream simulators including Liftoff, TRYP FPV, DRL, FPV Freerider and Uncrashed, and also handles firmware updates and power.

  • Teach a new pilot safely - wired trainer mode through the 3.5 mm DSC port, or wireless trainer mode with the FS-WTM01 module (sold separately).

  • Interference-resistant link - 135 hopping frequencies on the 2.4 GHz band.

  • Reliable signal - built-in dual antennas, a PCB antenna plus a copper-tube antenna.

  • Know before the battery is flat - a built-in low-voltage alarm warns you before power runs out.

  • Grab and go - an integrated carry handle makes it easy to take to the field.

  • Watch your video feed - accepts an optional smartphone mount (sold separately) for monitoring a live video feed.

Specifications

FS-i6 Nova Transmitter

Property

Specification

Channels

10 output channels (12 hardware controls)

RF Protocol

AFHDS 2A

RF Frequency

2.4 GHz ISM

Hopping Frequencies

135

RF Output Power

< 20 dBm

Channel Resolution

1024

Antenna

Built-in dual (PCB + copper tube)

Display

Monochrome LCD, 128 × 64

Data Interfaces

USB-C, 3.5 mm DSC trainer port

Charging

None (charge 2S packs externally)

Power Supply

4 × AA or 2S lithium (4–9 V DC)

Low-Voltage Alarm

Yes

Firmware Update

Supported

System Language

English or Chinese (set by firmware)

Operating Temperature

-10 °C to +60 °C

Operating Humidity

20%–95%

Dimensions

168.6 × 155.6 × 87.9 mm

Weight

360 g (excluding batteries)

Certifications

CE, SRRC
