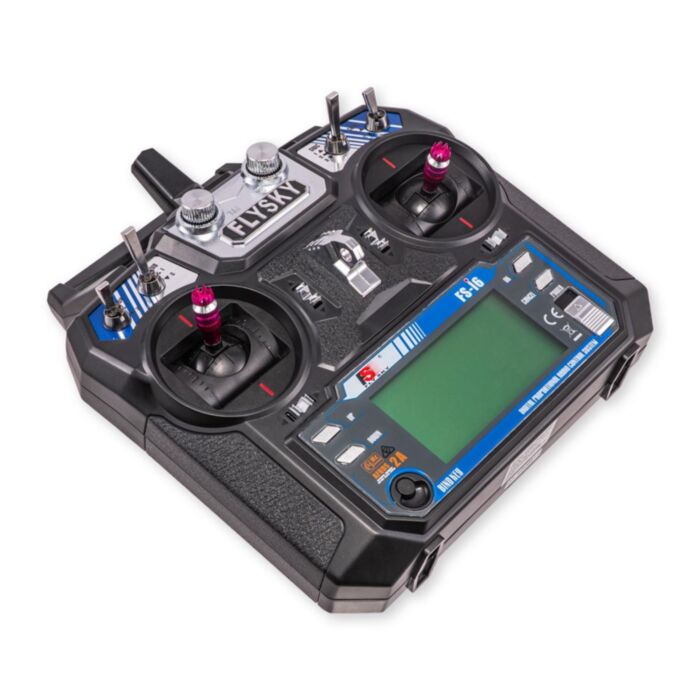

FlySky FS-i6 AFHDS 2A Remote Control

SKU: CE10452 Brand: X7

Take control of your RC aircraft or robotics with the FlySky FS-i6 Transmitter. Utilising the interference-resistant AFHDS 2A protocol, this 6-channel system provides reliable, long-range telemetry for custom RC projects.

$72.05 AUD, inc GST

$65.50 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Recommended Essentials:

Panasonic Ni-MH Battery Charger with 4x AA Eneloop Batteries

$52.95

Flysky FS-X14S S-Bus Receiver

$31.75

FlySky FS-iA4B Receiver

$30.30

For use in Australia

Operate only in bands and with settings that are permitted for your location and application. Check this product’s supported frequencies in the description/specs.
If you intend to operate outside shared/licence‑exempt conditions (e.g. in other bands, at higher power, with high‑gain antennas, or extended duty cycles), you must have the appropriate authorisation.

For use in other regions

Follow the spectrum rules for your country/region and select frequencies and settings accordingly.

A declaration of use will need to be submitted during checkout.

The FlySky FS-i6 is a programmable, 6-channel 2.4GHz AFHDS 2A radio telemetry system designed to provide control over a wide array of RC vehicles. Acting as the command centre for your project, it transmits high-resolution control signals to a paired receiver, making it a staple for fixed-wing aircraft, multicopters, and even robotic platforms.

For makers transitioning from basic "toy-grade" controllers, the FS-i6 solves the common frustration of signal interference and limited customisation. By utilising a digital frequency hopping system and allowing for 20 distinct model profiles, this transmitter eliminates the need for multiple controllers and provides the reliability required for long-range outdoor flight or interference-heavy workshop environments.

Despite its entry-level price point, the FS-i6 features an ergonomic, solid chassis and a clear, backlit LCD for real-time telemetry and programming. It is built to a high standard of engineering, featuring high-gain omnidirectional antennas and a 4096-step stick resolution that ensures smooth, granular movement for every servo or motor in your build.

For simple, one-way communication over one wire, the FS-X14S Sbus receiver is the go to, especially for custom robotics projects where your own microcontroller is handling actuator movement. Or if RC/PWM is your protocol of choice, the FS-iA4B is perfect.

Requires 4x AA Batteries (sold separately), we recommend the Eneloop NiMH cells (also available without a charger), allowing the controller to last ages before requiring a recharge

Features

Maintain a rock-solid connection in cluttered RF environments thanks to the AFHDS 2A (Automatic Frequency Hopping Digital System) which constantly switches between 142 channels to find the clearest path.
Monitor your vehicle’s health in real-time using the integrated bidirectional telemetry, allowing you to track receiver voltage and sensor data directly on the transmitter screen.
Scale your hobby without clutter by utilising the 20-model memory, which lets you switch between different aircraft or robots with unique trims and mixes.
Achieve professional-grade precision with 4096 levels of stick resolution, providing the fine motor control necessary for stable hovering and aerobatic manoeuvres.
Customise your control logic through the intuitive menu system, featuring programmable mixes, adjustable throttle curves, and sub-trims to fine-tune your hardware's mechanical performance.
Future-proof your gear with a dedicated data port that supports firmware updates and allows for connection to a PC for simulators or a microcontroller or SBC for robotics projects.

Specifications

Property	Specification
Channels	6 Channels
Model Type	Glider / Heli / Fixed-wing / Multi-rotor
RF Range	2.408 – 2.475 GHz
Bandwidth	500 KHz
RF Protocol	AFHDS 2A / AFHDS
Modulation Type	GFSK
Stick Resolution	4096 steps
Low Voltage Warning	Alerts below 4.2V (Adjustable)
Antenna Length	26 mm (Dual Antenna)
Dimensions	174 x 89 x 190 mm
Power Input	6V DC (4 x AA Batteries)
Display	STN Transflective LCD (128 x 64 pixels)

Additional Resources

Firmware and Manual Downloads

Packing List

1x FS-i6 Remote Control
1x FS-i6A Recevier Module
