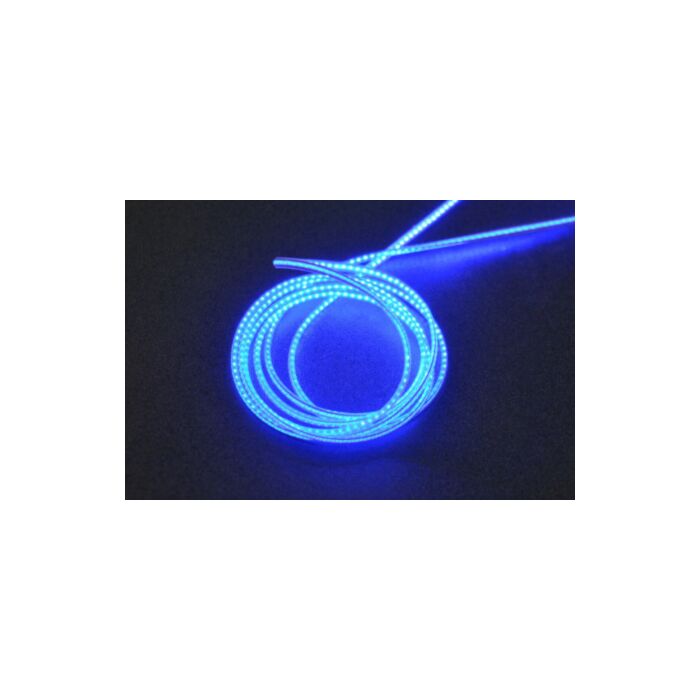

Flexible LED Filament (24V 1200mm, Blue)

SKU: FIT0931 Brand: DFRobot
The 24V 1200mm Blue Color Wire LED Flexible Filament is perfect for makers and the E-Textiles industry. With its high brightness, adjustable power...
$24.10 AUD, inc GST
$21.91 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 20 and Dec 24

Quantity Discounts:

  • 10-25 $21.25 (exc GST)
  • 25+ $20.82 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Comprised of 640 LEDs, this high-brightness flexible filament is 1200mm long and only 2mm in diameter, making it perfect for DIY lighting decoration and 360° all-angle lighting fixtures. It comes with adjustable brightness and requires a 21-24V power supply, with the positive electrode located at the small round hole end and the negative electrode at the non-porous end. The filament can be bent and folded as desired, offering 360-degree light coverage without dead angles.

Note: To prevent damage from excessive heat, it is recommended to use a power supply of 21-22V for extended periods.

Dimension of Flexible LED Filament

Figure: Dimension


24V 1200mm LED Flexible Filament (2700K)24V 1200mm LED Flexible Filament (2200K)
24V 1200mm Green LED Flexible Filament24V 1200mm Red LED Flexible Filament
24V 1200mm Blue LED Flexible Filament12V 600mm LED Flexible Filament (2200K)

Figure: Flexible LED Filament Lighting Effects

Clicking the image will take you to the corresponding product page.

Features

  • 1200mm in length, high brightness, suitable for DIY
  • 21-24V power supply, adjustable brightness
  • Compact size, positive and negative poles identified
  • Flexible filament, can be bent and folded as desired
  • Long lifespan of 5000-10000 hours
  • Applications

  • E-Textiles (smart fabrics): Incorporate electronic functionality.
  • LED filament light bulbs: Resemble traditional incandescent light bulbs with visible filaments for aesthetic and light distribution purposes but with the high efficiency of light-emitting diodes (LEDs) .
  • Specification

  • Length: 1200mm
  • Emitting Color: Blue
  • Color Rendering Index: 80
  • Luminous Flux: 500lm
  • Supply Voltage: 21-24V
  • Working Current: 300mA @ 22V
  • Power: 6.6W @ 22V
  • Operating Temperature: -30 to +55°C
  • Storage Temperature: -10 to +40°C
  • Storage Humidity: 60%RH
  • Lifespan: 5000-10000 hours
  • Parts List

  • 24V 1200mm LED Flexible Filament (Blue) x1
