Flexible 16x16 NeoPixel RGB LED Matrix

SKU: ADA2547 Brand: Adafruit

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

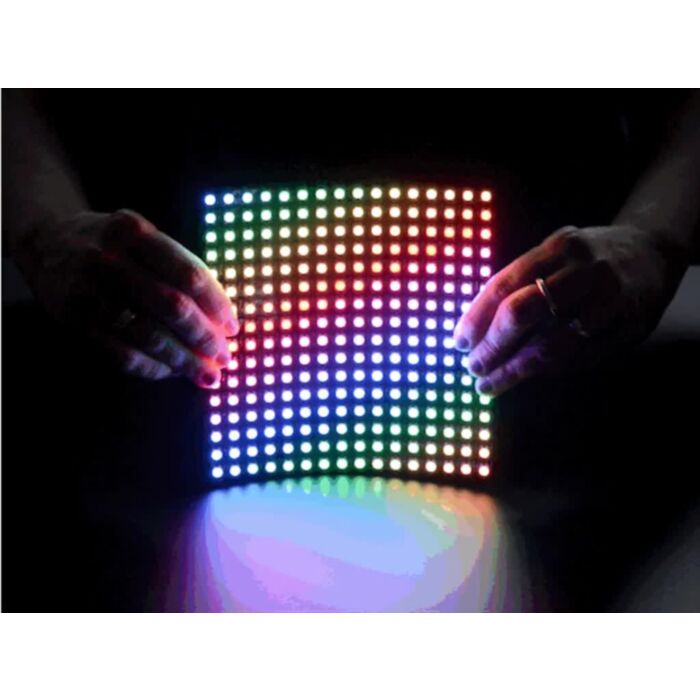

For advanced NeoPixel fans, Adafruit now have a bendable, Flexible 16x16 NeoPixel LED Matrix! Control all 256 ultra-bright LEDs using a single microcontroller pin, set each LED as you wish to scroll messages or draw little images. This matrix has a thick flexible PCB backing that can be gently bent and curved around surfaces

You can use this matrix just like any other NeoPixel-compatible product.

Don't forget, with 256 LEDs, you could use over 15A of current if you turn on all the LEDs on to white (which Adafruit really do not recommend because Adafruit don't think the flex PCB can handle that much current). Try to keep the current draw at undrer 5A, you can use Adafruit's 5V 4A or 5V 10A power supply. For portable use, if you are drawing less than 3A, try out this 5V@3A UBEC.

We also have a flexible NeoPixel Matrix in 8x32 if you love that 4:1 aspect ratio.

Please note: Flexible PCBs are not designed for repeated flexing! While we think this product may work in wearables or other situations where the matrix is bent around, we do not offer any guarantees or refunds if you end up cracking the LEDs or traces! This is for advanced users only, who already know how to use NeoPixels and are comfortable with the high current requirements and protecting the matrix from damage. There are no returns, refunds or replacements for damaged product.

Don't forget to read Adafruit's NeoPixel Uber guide for more information on how to care and feed your NeoPixels!

Technical Details

160mm x 160mm x 2mm / 6.3" x 6.3" x 0.08"
Weight (with IDC cables): 46g
WS2812 Datasheet
SK6812 Datasheet
May ship with either WS2812B or SK6812-based LEDs. They are the same brightness, color and protocol
