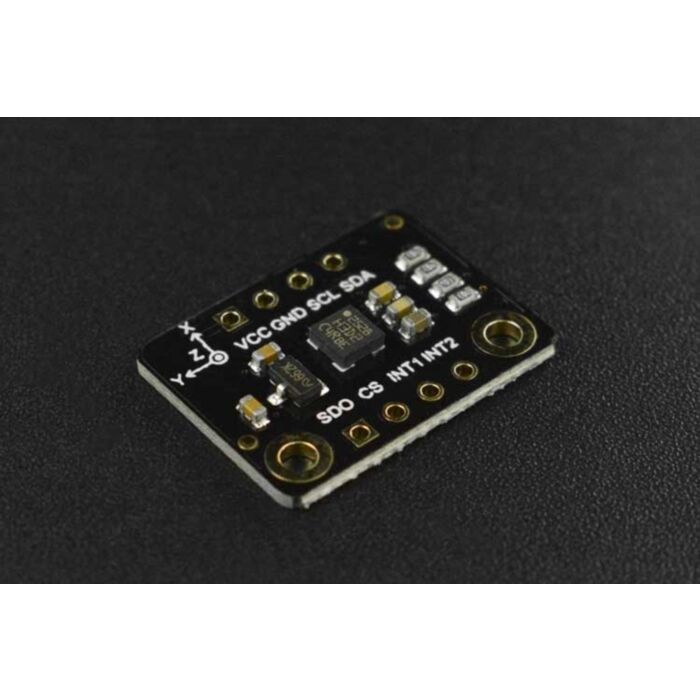

Fermion: I2C H3LIS200DL Triple-Axis Accelerometer (Breakout) (±100g/±200g)

SKU: SEN0408 Brand: DFRobot
The H3LIS200DL is an ultra low-power(down to 10uA) and low noise 3-axis accelerometer. It has user selectable scales of ±100g/±200g and is capable of measuring accelerations...
$26.35 AUD, inc GST
$23.95 AUD, exc GST

Quantity Discounts:

  • 10-25 $23.24 (exc GST)
  • 25+ $22.75 (exc GST)

Out of Stock

Sign up to get notified when it's available to order.

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The H3LIS200DL is an ultra low-power(down to 10uA) and low noise 3-axis accelerometer. It has user selectable scales of ±100g/±200g and is capable of measuring accelerations with output data rates from 0.5Hz to 1kHz. The device contains two programmable independent interrupt engines that is able to recognize dedicated inertial events, which makes it more playable.

Connect Diagram

Features

  • Selectable Large Scale Range: ±100g/±200g
  • Two programmable interrupts
  • Smart sleep to wake-up function that allows advanced power saving

Applications

  • High-speed impact detection and recording
  • Free-fall detection
  • Automobile collision test

Specification

  • Operating Voltage: 3.3 V
  • Operating Current: minimum 10uA (low-power mode) / 0.3mA-0.4mA (normal mode)
  • Interface: I2C/SPI
  • I2C Address: 0x19 (Default) / 0x18 (Selectable)
  • Selectable Scale: ±100g / ±200g
  • Frequency: 0.5Hz ~ 1KHz
  • 8-bit Data Output
  • Operating Temperature: -40°C ~ 85°C
  • 10000 g High Shock Survivability
  • ECOPACK®RoHS and “Green” Compliant
  • Dimension: 15*20 (mm) / 0.59*0.79”

Documents

Parts List

  • Fermion: H3LIS200DL Triple Axis Accelerometer (Breakout) x1
  • 2.54-4P Black Single Row Pin Header x2
