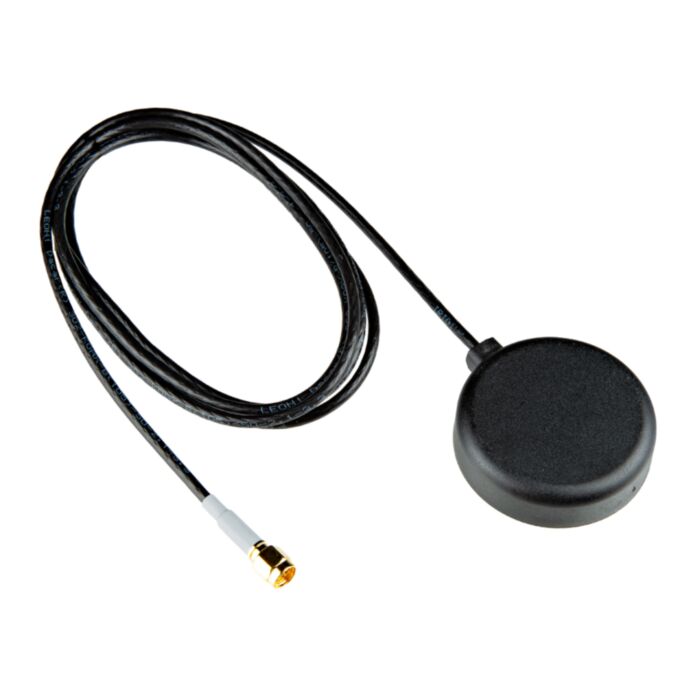

External Iridium® Certified Compact Magnetic Adhesive Mount Antenna

SKU: WRL-25068 Brand: Sparkfun

This powerful low-profile antenna has a peak gain of ~5.1 dBi and ~82.3% of efficiency...

$78.15 AUD, inc GST

$71.05 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

5+ $68.92 (exc GST)
25+ $67.49 (exc GST)
100+ $64.65 (exc GST)

The 2J7426MPz by 2J Antennas is a high performance magnetic mount antenna which is designed specifically to communicate efficiently with the Iridium® Satellite Communication system. Manufactured with high quality polycarbonate (PC) and acrylic-styrene-acrylate terpolymer (ASA), a thermoplastic combination that offers strong resistance to UV, moisture, heat and enhances mechanical properties.

The antenna housing is waterproof to IP69 and designed to operate in extremely harsh environments, including those with frequent exposure to water, dust, and debris. This antenna has a recommended operational and storage temperature of between -40C to +85C. The magnetic mount allows for easy installation and removal between vehicles or assets, and it is easily converted to an adhesive type for greater flexibility.

Delivered with a standard SMA-Male Connector and standard 300cm long high quality coaxial LL100 cable.

Iridium® has certified the 2J7426MPz Antenna for commercial use in connection with the Iridium Communications System.

Features

Standards: IRIDIUM®
Frequency: 1616-1627 MHz
VSWR: ~1.1:1
Efficiency: ~82.3%
Peak Gain: ~5.1dBi
Impedance: 50Ohm
Radiation Pattern: Hemispherical
Polarization: RHCP
Connector Type: SMA-Male
Cable Length: 3m (9.84')
Mounting: Magnetic / Adhesive
Dimensions: Ø 54 x 14.7
Operating Temperature: -40 °C to +85 °C
Certificates: IP67, IP69, Iridium Certified

Documents

Datasheet

This product is listed in:

Wireless>Satellite communication
