RockBLOCK 9603 - Iridium SatComm Module

SKU: WRL-14498 Brand: Sparkfun

The RockBLOCK 9603 allows you to send and receive short messages from anywhere on Earth with a clear view of the sky. It works far beyond the reach of WiFi and GSM...

$609.95 AUD, inc GST

$554.50 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 03 and Jan 06

Quantity Discounts:

3-5 $537.86 (exc GST)
5+ $526.77 (exc GST)

The RockBLOCK 9603 allows you to send and receive short messages from anywhere on Earth with a clear view of the sky. It works far beyond the reach of WiFi and GSM networks. Maybe you want to transmit weather information from mid-ocean? Or use it to control your robot in the middle of the desert? Perhaps you need to communicate in an emergency, when other networks might not be available? RockBLOCK can help.

RockBLOCK 9603 is the smaller version of the standard RockBLOCK Mk2. It has the same capabilities, but is specifically designed to be as small and light as possible. The RockBLOCK 9603 is targeted primarily at systems integrators and product developers, where space inside your enclosure is at a premium.

It has a small form factor Molex connector to link the serial, power and signaling lines to your controller. This may be marginally harder to use for hobbyists than the 0.1" dot pitch header used on the standard RockBLOCK product.

At the heart of RockBLOCK 9603 is an Iridium 9603 modem. The RockBLOCK hosts the 9603 and provides it with an antenna and power supply requirements. It exposes the modem’s serial interface via a breakout connector over serial, and offers an SMA connector for external antenna usage.

Note: The RockBLOCK does require a monthly rental service to exchange information with the Iridium satellite network. You only pay for months in which you wish to use the RockBLOCK. No annual contract is required. Line rental costs £10GBP (about $13USD) per month and includes access to the RockBLOCK management system for managing your devices. The billing system is built-in, and allows you to pay for only what you use.

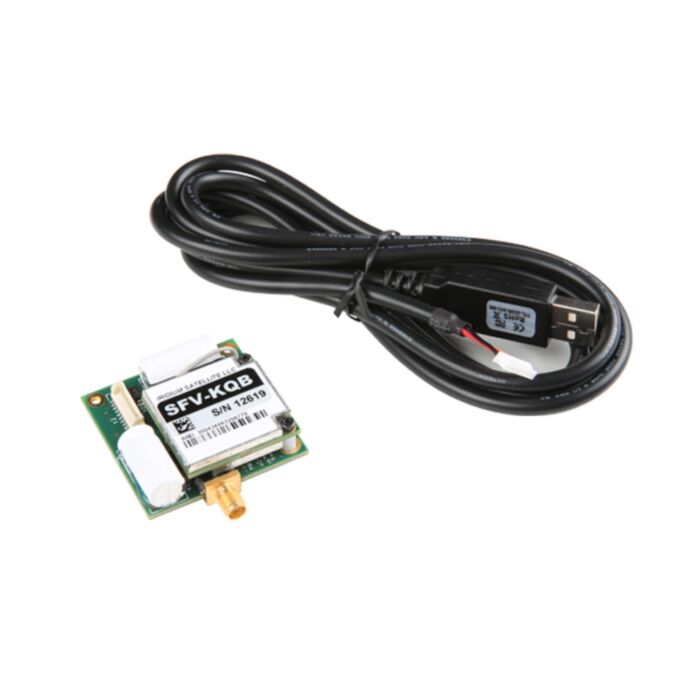

Includes

1x RockBLOCK 9603 Module
1x FTDI USB Cable

Features

Operating Power: 5VDC, 100mA min/450mA max
Plug-and-play satellite communication
Available as a PCB for product integration
Full 2-way communication system — just 45x45x15mm
Integrated antenna and power conditioning
Optional external antenna connector (SMA)
Truly global operation, using the Iridium satellite network
Data arrives via email, or directly to your own web service via HTTP POST
Dimensions: 45mm x 45mm x 15mm
Weight: 36g
