Ethernet Shield for Arduino - W5500 Chipset

SKU: ADA2971

$69.50 AUD, inc GST
$63.18 AUD, exc GST

More Views

Ethernet Shield for Arduino - W5500 Chipset
69.5 AUD

SKU: ADA2971

$69.50 AUD, inc GST
$63.18 AUD, exc GST
In stock, with a short lead time. 109 units dispatch in 4 to 7 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Fri, 25th of Aug with Express Post within Australia.

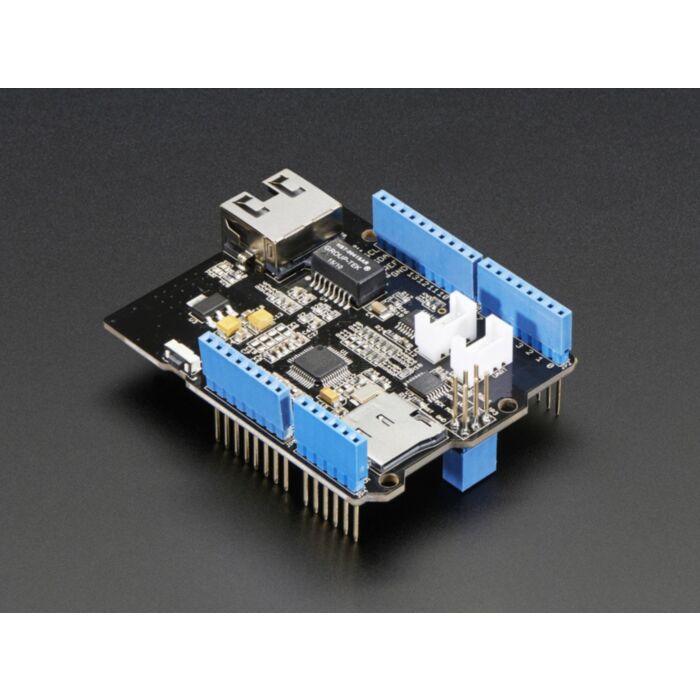

The W5500 Ethernet Shield for Arduino from Seeed Studio is a great way to set up your projects with internet connectivity with just a single chip.  Similar to the Arduino Ethernet Shield, but with a newer chipset, this ethernet shield supports both TCP and IP Protocols in TCP, UDP, ICMP, IPv4, ARP, IGMP, and PPoE format.  The RJ45 ethernet port is also low enough so you can stack another shield on top of it

The board includes a microSD card holder and has a working voltage of 5V.  It also requires an Arduino to use - either Uno or Mega - to use.  To learn more about this ethernet shield, check out the Seeedstudio Wiki.

Adafruit recommend this library fork with the shield, its just like the original Ethernet library but with W5500-chip support!

Technical Details

  • Supports Hardwired TCP/IP Protocols : TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
  • Supports 8 independent sockets simultaneously
  • Supports Power down mode
  • Supports Wake on LAN over UDP
  • Supports High Speed Serial Peripheral Interface(SPI MODE 0, 3)
  • Internal 32Kbytes Memory for TX/RX Buffers
  • 10BaseT/100BaseTX Ethernet PHY embedded
  • Supports Auto Negotiation (Full and half duplex, 10 and 100* based )
  • Not supports IP Fragmentation
  • 3.3V operation with 5V I/O signal tolerance
  • LED outputs (Full/Half duplex, Link, Speed, Active)
  • Micro-SD card socket
  • Grove connector for I2C and UART

Product Dimensions: 71.0mm x 53.0mm x 23.0mm / 2.8" x 2.1" x 0.9"

Product Weight: 25.0g / 0.9oz

Documentation and Resources:
