ESP32 LoRa 1-Channel Gateway

SKU: SPX-14893 Brand: Sparkfun

Retired Product

Replaced by: WRL-15006

This product has been replaced by: WRL-15006
This product is no longer available. This page is only for reference.

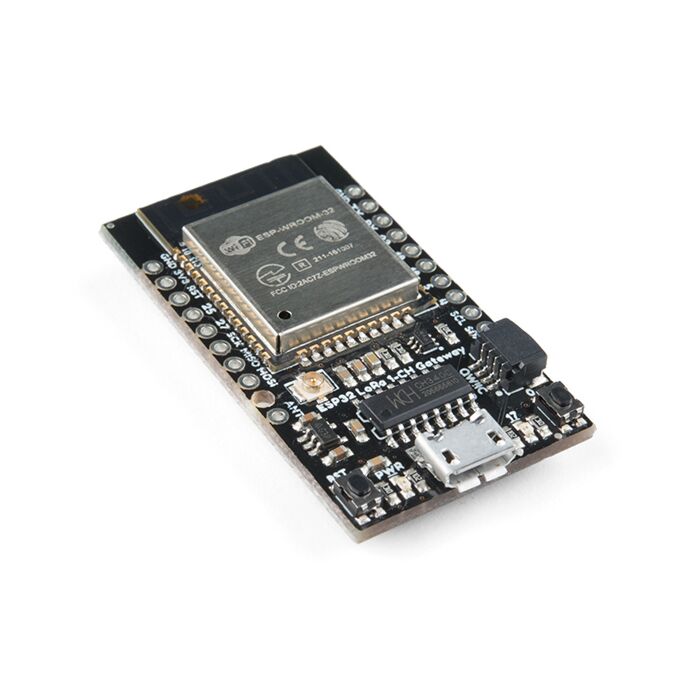

The ESP32 LoRa 1-CH Gateway combines an ESP32 – a programmable microcontroller featuring both WiFi and Bluetooth radios – with an RFM95W LoRa transceiver to create a single-channel LoRa gateway. It’s a perfect, low-cost tool for monitoring a dozen-or-so LoRa devices, and relaying their messages up to the cloud.

Complete with a Qwiic connector and a breadboard-compatible array of ESP32 pin-breakouts, this board can can also serve as a general-purpose ESP32/RFM95W development platform. So, instead of using it as a LoRaWAN gateway, you can turn it into a LoRa device, and use the powerful ESP32 microcontroller to monitor sensors, host a web server, run a display or more.

These boards are a great way to begin dipping your toes into the world of LoRa and LoRaWAN. Not only can they be programmed as a versatile single-channel gateway, but they can also be used as a LoRa device or a general ESP32/RFM95W development board.

For more information, check out our ESP32 LoRa 1-CH Gateway, LoRaWAN, and the Things Network tutorial, which explains how to set the board up, and get it connected to The Things Network.

Experimental Product: SparkX products are rapidly produced to bring you the most cutting edge technology as it becomes available. These products are tested but come with no guarantees. Live technical support is not available for SparkX products. Head on over to our forum for support or to ask a question.

Features

ESP32-WROOM-32 module
- WiFi, BT BLE microcontroller
- Integrated PCB antenna
Hope RFM95W LoRa modem
- Frequency range: 868/915 MHz
- Spread factor: 6-12
- SPI control interface
U.FL antenna connector for LoRa radio
Reset and ESP32 pin0 buttons
14 GPIO ESP32 pin-breakouts
Power and user LEDs
Qwiic connector
CH340C USB-to-Serial interface
Micro-B USB connector for power and programming

Documents

Product Repository – GitHub repository where you can find all of our latest hardware and software design files.
Hardware
- Schematic – PDF schematic
- Eagle Files – PCB design files
- ESP32 WROOM Datasheet – Datasheet for the ESP32 WROOM module
- RFM95W Datasheet – Datasheet for the RFM95W LoRa radio module
Software

ESP-1ch-Gateway-v5.0 – Single-Channel LoRaWAN Gateway Arduino firmware used in this tutorial.
Arduino-LMIC library – LoRaMAC-in-C (LMIC) Arduino library used to create LoRaWAN devices.
ESP-1CH-TTN-Device-ABP – Single-channel LoRaWAN device example using the Arduino-LMIC library.
