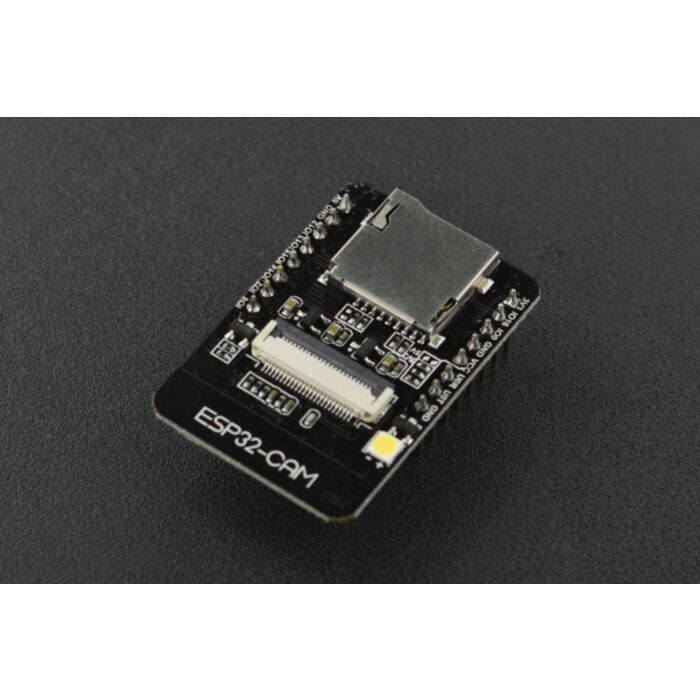

ESP32-CAM Development Board

Rating:
100% of 100
SKU: DFR0602 Brand: DFRobot Guides (1)
ESP32-CAM is a low-cost ESP32-based development board with onboard camera, small in size. It is an ideal solution for IoT application, prototypes constructions and...
$22.10 AUD, inc GST
$20.09 AUD, exc GST

Quantity Discounts:

  • 10-25 $19.49 (exc GST)
  • 25+ $19.09 (exc GST)

Out of Stock

Sign up to get notified when it's available to order.

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

If this product is out of stock, check out our alternative ESP32S3 Sense (with camera)

The ESP32-CAM is a low-cost ESP32-based development board with an onboard camera (AF2569 as seen in image 4), that is small in size. It is an ideal solution for IoT applications, prototype constructions, and DIY projects.

The board integrates WiFi, traditional Bluetooth, and low-power BLE, with 2 high-performance 32-bit LX6 CPUs. It adopts 7-stage pipeline architecture, on-chip sensor, Hall sensor, temperature sensor, and so on, and its main frequency adjustment ranges from 80MHz to 240MHz.
Fully compliant with WiFi 802.11b/g/n/e/i and Bluetooth 4.2 standards, it can be used as a master mode to build an independent network controller, or as a slave to other hosts, and MCUs to add networking capabilities to existing devices.
ESP32-CAM can be widely used in various IoT applications. It is suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals, and other IoT applications. It is an ideal solution for IoT applications.


Schematic Diagram

Dimension Diagram

Notes:

  • Ensure your power supply can provide at least 5V 2A, otherwise, there can be artifacts appearing in your images.
  • ESP32 GPIO32 pin is used to control the power of the camera, so when the camera is working, pull the GPIO32 pin low.
  • Since the IO pin is connected to camera XCLK, it should be left floating in use, and do not connect it to high/low level.
  • The product has been equipped with default firmware before leaving the factory, and we do not provide additional ones for you to download. So, please be cautious when you choose to burn other firmware.
  • This board will need to be programmed via an FTDI Connector as it doesn't have an external port.

Features

  • Up to 160MHz clock speed, Summary computing power up to 600 DMIPS

  • Built-in 520 KB SRAM, external 4MPSRAM

  • Supports UART/SPI/I2C/PWM/ADC/DAC

  • Support OV2640 and OV7670 cameras, Built-in Flash lamp.

  • Support image WiFI upload

  • Support TF (SD) card

  • Supports multiple sleep modes.

  • Embedded Lwip and FreeRTOS

  • Supports STA/AP/STA+AP operation mode

  • Support Smart Config/AirKiss technology

  • Support for serial port local and remote firmware upgrades (FOTA)

Specification

  • SPI Flash: default 32Mbit

  • RAM: built-in 520 KB+external 4MPSRAM

  • Dimension: 27*40.5*4.5(±0.2)mm/1.06*1.59*0.18”

  • Bluetooth: Bluetooth 4.2 BR/EDR and BLE standards

  • Wi-Fi: 802.11b/g/n/e/i

  • Support Interface: UART, SPI, I2C, PWM

  • Support TF card: maximum support 4G

  • IO port: 9

  • Serial Port Baud-rate: Default 115200 bps

  • Image Output Format: JPEG( OV2640 support only ), BMP, GRAYSCALE

  • Spectrum Range: 2412 ~2484MHz

  • Antenna: onboard PCB antenna, gain 2dBi

  • Transmit Power: 802.11b: 17±2 dBm (@11Mbps);

                                  802.11g: 14±2 dBm (@54Mbps);

                                  802.11n: 13±2 dBm (@MCS7)

  • Receiving Sensitivity: CCK, 1 Mbps : -90dBm;

                                          CCK, 11 Mbps: -85dBm;

                                          6 Mbps (1/2 BPSK): -88dBm;

                                          54 Mbps (3/4 64-QAM): -70dBm;

                                          MCS7 (65 Mbps, 72.2 Mbps): -67dBm

  • Power consumption: Turn off the flash: 180mA@5V

                                          Turn on the flash and adjust the brightness to the maximum: 310mA@5V

                                          Deep-sleep: the lowest power consumption can reach 6mA@5V

                                          Moderm-sleep: up to 20mA@5V

                                          Light-sleep: up to 6.7mA@5V

  • Security: WPA/WPA2/WPA2-Enterprise/WPS

  • Power supply range: 5V

  • Operating temperature: -20 °C ~ 85 °C

  • Storage environment: -40 °C ~ 90 °C, < 90%RH

  • Weight: 10g

Documents

Shipping List

  • ESP32-CAM Development Board x1
  • AF2569 Camera Module x1
