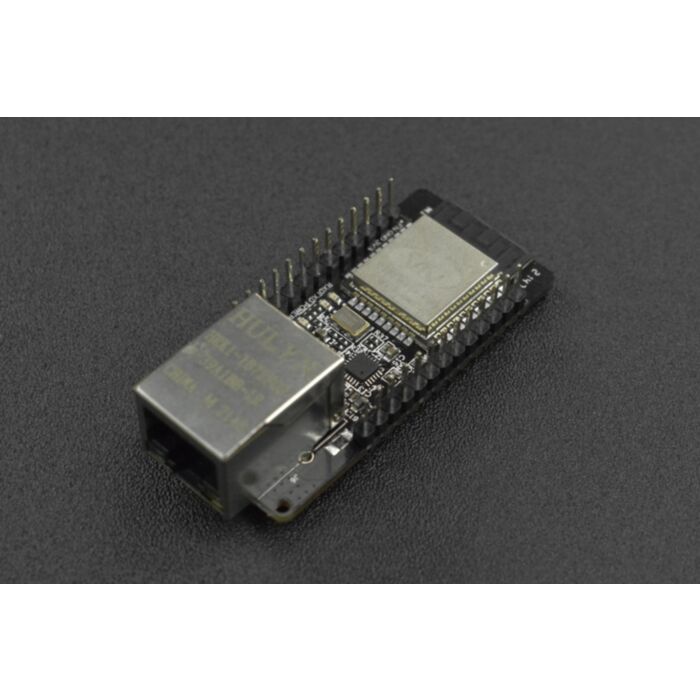

Embedded Serial to Ethernet Module

SKU: DFR0963 Brand: DFRobot

WT32-ETH01 is an embedded serial to Ethernet module based on the ESP32 series WT32-S1 MCU. Integrating an optimized TCP/IP protocol stack and supporting...

$34.45 AUD, inc GST

$31.32 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

10-25 $30.38 (exc GST)
25+ $29.75 (exc GST)

This is an embedded serial-to-Ethernet module based on the ESP32 series, also can be called a gateway. The module integrates an optimized TCP/IP protocol stack, which is convenient for users to easily complete the networking functions of embedded devices while reducing development time costs.

The ESP32 series of ICs are SOCs that integrate 2.4GHz Wi-Fi and Bluetooth dual-mode, with ultra-high radio frequency performance, stability, versatility, reliability, and ultra-low power consumption.

The module has diverse and powerful functions. It supports four working modes: TCP Server, TCP Client, UDP Server, and UDP Client; supports serial port, WiFi, Ethernet, and Bluetooth four data ports for pairwise combination, and 6 data transparent transmission modes; supports WiFi to connect to the Internet or local area network through a router, establish a TCP/UDP connection, and access the user's designated server.; support user's secondary development based on ESP32.

Embedded Serial to Ethernet Module

The module can be used in agriculture, industry, medical equipment, and other fields. It is an excellent choice for data transmission in IoT scenarios, such as smart agricultural sensor data monitoring.

The module can collect and transmit data from sensors such as air temperature and humidity, soil temperature and humidity, soil PH value, and carbon dioxide concentration to the server.

The module has abundant IO ports, which can realize the functions of temperature acquisition and mutual control of ventilation and heating equipment.

Note: The applicable temperature of the product is -20°C~+70°C

Features

Supports complete TCP/IP protocol stack

Abundant wireless communication interface

Multiple working modes are available

Applications

IoT scenarios

Smart agricultural sensor data monitoring

Specification

Wi-Fi

RF certification: FCC/CE/RoHS

Protocol: 802.11 b/g/n/e/i(802.11n, up to 150Mbps)A-MPDU and A-MSDU aggregation, 0.4 second guard interval support

Frequency Range: 2.4~2.5GHz

Bluetooth

Protocols: Compliant with Bluetooth V4.2 BR/EDR and BLE standards

Radio frequency: NZIF receiver with -97dBm sensitivity

Hardware

Network port Specifications: RJ45, 10/100Mbps, cross-direct connection adaptive

Serial baud rate: 80~5000000

On-board Flash: 32Mbit

Operating Voltage: 5V or 3.3V power supply (optional)

Working current: Average 80mA

Supply current: Minimum 500mA

Working temperature range: -40°c ~ +85°c

Ambient temperature range: Normal temperature

Packaging: Half pad/ through-hole connector (optional)

Software

Wi-Fi mode: Station/ SoftAP/ SoftAP+station/ P2P

Wi-Fi security mechanism: WPA/ WPA2/ WPA2-Enterprise/ WPS

Encryption type: AES/ RSA/ ECC/ SHA

Firmware upgrade: Remote OTA upgrade via network

Software development: SDK used for further development

Network protocol: IPv4, TCP/ UDP

IP access methods: Static IP, DHCP (default)

Simple transmission mode: TCP Server/ TCP Client/UDP Server/ UDP Client

User configurations: AT+ commands set

Documents

AT Command Examples of WT32-ETH01 Wired Module_v1.1.pdf

AT Commands of WT32-ETH01 Wired Module_v1.1.pdf

WT32-ETH01_datasheet_V1.1.pdf

Parts List

Embedded Serial to Ethernet Module x1
