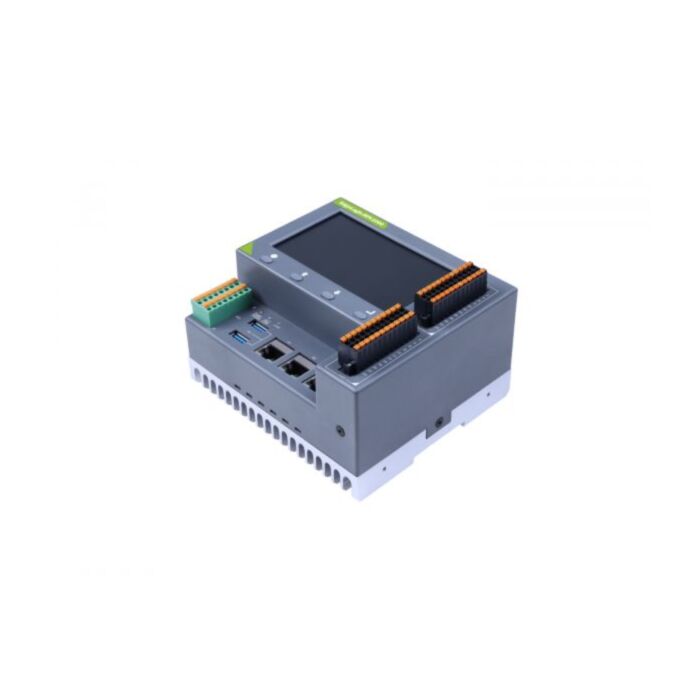

EdgeLogix-RPI-1000-CM4104032

SKU: SS102991734 Brand: Seeed Studio
EdgeLogix-RPI-1000-CM4104032 Raspberry Pi-based industrial controller offers you the greatest performance when it comes to the novel automation essentials...
$1,094.95 AUD, inc GST
$995.41 AUD, exc GST

Quantity Discounts:

  • 3-6 $955.59 (exc GST)
  • 6+ $925.73 (exc GST)

Out of Stock

Sign up to get notified when it's available to order.

Restrictions apply to this equipment as it uses button/coin cell batteries:

  • The equipment is intended to be used in trades, professions or industries
  • The equipment is not intended for sale to the general public
  • The equipment is not intended to be used where children are present
  • You are aware that this equipment may not meet child safety testing requirements as it is not intended to be used by consumers or general public, but rather, is intended to be used in trades, professions or industries in conjunction with the limitations and restrictions listed above
  • You are aware that these restrictions are due to a change in Australian legislation in 2022 for button/coin cell batteries

Button Battery Warning

A declaration of use will need to be submitted during checkout.

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

EdgeLogix-RPI-1000-CM4104032 Raspberry Pi-based industrial controller offers you the greatest performance when it comes to the novel automation essentials like all-in-one application scenarios. With intensive IO ports mounted, modular design, extensive industrial bus protocols(high-speed local bus) supported, and wireless capabilities equipped along with cloud services support, it has extraordinarily increased the ability to manage complex systems and sophisticated machines.

Feature

  • High-Performance All-in-one with High Performance:
    • A high-performance PLC/PAC, IPC, lightweight HMI, IIoT gateway, OPC UA Server, and Industry PC all in one device.

  • Powerful Processors and Flexible OS:
    • Powered by Raspberry Pi Compute Module 4, up to 4GB RAM and 32GB eMMC, support Debian, Linux, and Ubuntu OS.

  • Rich IO Resources and Robust Scalability:
    • Up to 24 optoisolated DI, DO along with RS485, RS232, CAN-FD, and 3 Gigabit Ethernet ports. High-speed local BUS extension, supporting additional DIO, ADC, and Relay expansion modules.*

  • Multiple Wireless Capabilities and IT Connectivity:
    • Build-in 2.4G/5G Wifi, BLE, mini-PCIe slot for 4G LTE and LoRaWAN modules.

    • Built-in IT connectivity: DHCP/DNS, OPC UA, and Web service

  • Industrial Software and Cloud Services Support:
    • Support IEC 61131-3 with CODESYS, Node-RED, and MQTT.

    • Support AWS, and Azure cloud services.*



EdgeLogix-RPI-1000 industrial controller series offers you the greatest performance and scalability when it comes to novel industrial essentials and the next generation of industry controls. With multiple delicate modules mounted on the board, they present as multifunctional devices that provide you the all-in-one automation services. More than a PLC, or PAC, it even combines the functions of the IIoT Gateway, Lightweight HMI, OPC UA Server, and Industry PC.



Powerful Processors and Flexible OS:

EdgeLogix-RPi-1000-CM4104032 leverages the processing power of the AI-enabled Raspberry Pi Compute Module 4(CM4), running up to 1.5GHz, equipped with 4 GB RAM and 32 GB eMMC, supporting Debian, Linux, and Ubuntu Operate Systems.

Rich IO Resources and Robust Scalability

This high-scalability equipment has been engineered with 24 optoisolated DI, DO along with RS485, RS232, CAN-FD, and high-speed local BUS extension, which increases its ability to process more complex systems. By designing in modularization, it also supports additional DIO, ADC, and Relay expansion modules.

Multiple Wireless Capabilities and IT Connectivity

The Logix employs high integration of communication, including three Gigabit Ethernet network interfaces, along with multiple wireless capabilities and IT connectivity. It is greatly qualified for IIoT(Industrial Internet of Things), where you can utilize it to build IoT Gateways.



Communication Capabilities



IT Connectivity



  • Three Gigabit Ethernet RJ45 Port

  • Build-in WiFi 2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac

  • Mini PCIe Slot support 4G LTE Mod

  • ModMini PCIe Slot support 4G LTE Module/LoRaWAN Gateway Module



  • DHCP/DNS

  • OPC UA

  • Web service



Industrial Software and Cloud Services Support

With the great Raspberry Pi industrial software ecosystem, you will find that EdgeLogix has plentiful software, autonomous platforms, and cloud services supported. With massive documentation and open communities, troubleshooting can be precise and expeditious.

Industrial Software

Cloud Services

  • IEC 61131-3 with CODESYS

  • Node-RED

  • MQTT

  • AWS

  • Azure



Application

  • Software-defined PLC

  • IoT Gateway

  • SCADA

  • Power System

  • Industrial Controller

  • Automation and Control Systems

Specification



Parameters



Detail



Basic



CPU Core



4-core Raspberry Pi CM4



Memory



4GB



Storage



32GB



Onboard Screen



4.3 inches

480 x 800 pixels



Wireless



WiFi



2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac equipped



Bluetooth



Bluetooth 5.0, BLE equipped



Cellular



4G supported



LoRa



Mini PCIe LoRaWAN module supported



Interface



Ethernet



1000M RJ45 *3



HDMI



HDMI 2.0

up to 4k@60fps



USB



USB2.0 A*2



USB2.0 Type C*1



RS Serial



RS485 *5 (Optoisolated)



RS232 *2 (Optoisolated)



RS232 *1



CAN BUS



CAN BUS with CAN-FD *2 (Optoisolated)



DI



12 (Optoisolated)



DO



12 (Optoisolated)



Extra features



RTC



RTC



Watch Dog Timer



Stand alone



Encryption Chip



Atecc608a(optional)



Operation temperature



-20 to +60 °C

Certification

RoHS, CE, FCC, TELEC, UKCA



Part List

EdgeLogix-RPi-1000-CM4104032

x1



FAQ

How can I get started with EdgeLogix?

You can install the original Debian OS and directly program firmware to support underlying hardware interfaces and drivers. Thanks to the great Raspberry Pi Ecosystem, you can also utilize third-party software like Codesys and Ignition Edge, or directly use MQTT, as well as cloud servers like AWS and Azure.

Documentations

EdgeLogix-RPI-1000 3D File
