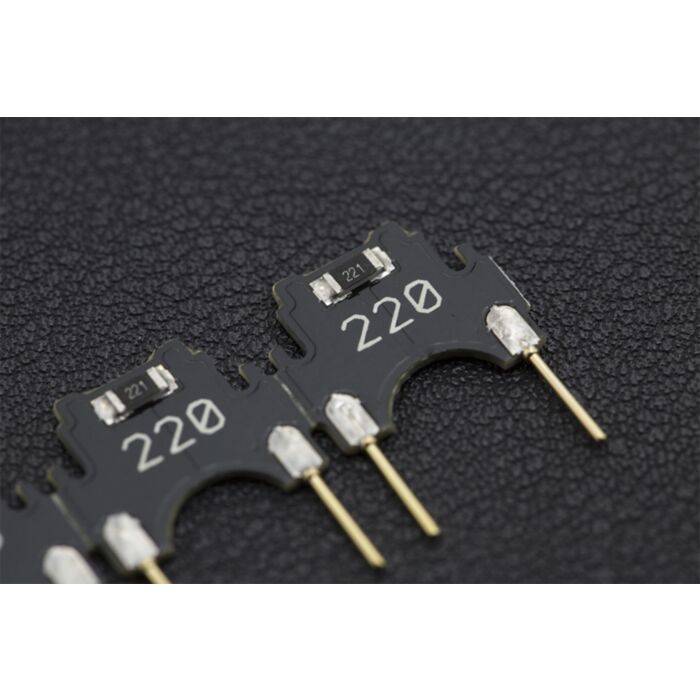

ECell: Breadboard-Plugin Resistor

SKU: FIT0423 Brand: DFRobot

Introducing "The Breadboard-Plugin Kit" - the first kit in the ECell series. The Breadboard-Plugin Kit provides a range of common components such as resistors, capacitors, diodes, transistors etc. that are compatible with a solderless breadboard. This resistor package module has gold-plated pins making it solid and durable and also gives it excellent conductivity. It plugs neatly and easily in the breadboard and is both reliable and reusable.

$11.95 AUD, inc GST

$10.86 AUD, exc GST

Available with a lead time
Expect dispatch between May 06 and May 10

Quantity Discounts:

10-25 $10.54 (exc GST)
25+ $10.32 (exc GST)

Introduction

*Difficulty reading confusing resistor color codes
*Deforming component pins and breadboard tie-points after use
*Using components with a different pin-pitch than your breadboard
*Confusing the order of a transistor's collector, emitter and base pins
*Using a confusing mess of jumper wires to connect small components

The Breadboard-Plugin Kit is designed by Maker LeoYan, and is produced and sold by DFRobot

This is a Resistor package only,click here to get the whole component kit.

FEATURES

Easy to recognize: resistance values, capacitance values, polarity and pin functions are clearly marked on each component
Easy to learn: standard circuit symbols are clearly marked on each component helping you learn how to read schematic diagrams
Easy to use: Pins plug directly in to the breadboard, saving a confusing mess of jumper wires
Easy to Plug/unplug: The 0.64mm diametral pin perfectly matches standard breadboard tie-points
High-reliability: Each component is manufactured using ENIG technology making the circuit connection reliable and durable
Environmentally-friendly: Each part is durable and reusable making it friendly to the environment

Specification

Resistor: 220R,1K,4.7K,10K

Documents

Wiki Doc

Parts List

Resistor 220R x4
Resistor 1K x4
Resistor 4.7K x4
Resistor 10K x4
