Pololu Tic T500 USB Multi-Interface Stepper Motor Controller (Connectors Soldered)

Rating:
100% of 100
SKU: POLOLU-3134 Brand: Pololu
The Tic T500 USB Multi-Interface Stepper Motor Controller makes basic control of a stepper motor easy, with quick configuration over USB using our free software. The controller supports six control interfaces: USB, TTL serial, I²C, analog voltage (potentiometer), quadrature encoder, and hobby radio control (RC)
$52.60 AUD, inc GST
$47.82 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 10th of Dec

Quantity Discounts:

  • 6-12 $45.91 (exc GST)
  • 12+ $44.47 (exc GST)
- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The Tic family of stepper motor controllers makes it easy to add basic control of a bipolar stepper motor to a variety of projects. These versatile, general-purpose modules support six different control interfaces: USB for direct connection to a computer, TTL serial and I²C for use with a microcontroller, RC hobby servo pulses for use in an RC system, analog voltages for use with a potentiometer or analog joystick, and quadrature encoder for use with a rotary encoder dial. They also offer many settings that can be configured using Pololu's free configuration utility (for Windows, Linux, and macOS). This software simplifies initial setup of the device and allows for in-system testing and monitoring of the controller via USB (a micro-B USB cable is required to connect the Tic to a computer).

The table below lists the members of the Tic family and shows the key differences among them.

 Tic T500Tic T834Tic T825Tic T249Tic 36v4
Operating voltage range:4.5 V to 35 V(1)2.5 V to 10.8 V8.5 V to 45 V(1)10 V to 47 V(1)8 V to 50 V(1)
Max continuous current per phase(no additional cooling):1.5 A1.5 A1.5 A1.8 A4 A
Peak current per phase(additional cooling required):2.5 A2 A2.5 A4.5 A6 A
Microstep resolutions:fullhalf1/41/8fullhalf1/41/81/161/32fullhalf1/41/81/161/32fullhalf1/41/81/161/32fullhalf1/41/81/161/321/641/1281/256
Automatic decay selection:Yes  YesYes
Automatic gain control (AGC):   Yes
Driver IC:MP6500DRV8834DRV8825TB67S249FTGdiscrete MOSFETs

1 See product pages and user’s guide for operating voltage limitations.

Tic T500 USB Multi-Interface Stepper Motor Controller, bottom view with dimensions.

Tic T834 USB Multi-Interface Stepper Motor Controller, bottom view with dimensions.

Tic T825 USB Multi-Interface Stepper Motor Controller, bottom view with dimensions.

Tic T249 USB Multi-Interface Stepper Motor Controller, bottom view with dimensions.

Tic 36v4 USB Multi-Interface High-Power Stepper Motor Controller, bottom view with dimensions.

Features and specifications

  • Open-loop speed or position control of one bipolar stepper motor
  • A variety of control interfaces:
    • USB for direct connection to a computer
    • TTL serial operating at 5 V for use with a microcontroller
    • I²C for use with a microcontroller
    • RC hobby servo pulses for use in an RC system
    • Analog voltage for use with a potentiometer or analog joystick
    • Quadrature encoder input for use with a rotary encoder dial, allowing full rotation without limits (not for position feedback)
    • STEP/DIR inputs for compatibility with existing stepper motor control firmware
  • Acceleration and deceleration limiting
  • Maximum stepper speed: 50,000 steps per second
  • Very slow speeds down to 1 step every 200 seconds (or 1 step every 1428 seconds with reduced resolution).
  • Selectable microstep modes up to 1/256-step resolution:
    • The Tic 36v4 supports full-step to 1/256-step modes
    • The Tic T825, Tic T834, and T249 support full-step to 1/32-step modes
    • The Tic T500 supports full-step to 1/8-step modes
  • Digitally adjustable current limit
  • Optional safety controls to avoid unexpectedly powering the motor
  • Input calibration (learning) and adjustable scaling degree for analog and RC signals
  • 5 V regulator (no external logic voltage supply needed)
  • Optional limit switch inputs with homing capabilities
  • Optional kill switch inputs
  • STEP/DIR outputs for controlling external stepper motor drivers
  • Connects to a computer through USB via a USB A to Micro-B cable (not included)
  • Free configuration software available for Windows, Linux, and macOS
  • Arduino library makes it easy to get started using these controllers with an Arduino or compatible board
  • Comprehensive user’s guide

Details for item #3134

The Tic T500 is based on the MP6500 IC from Monolithic Power Systems. This driver IC features automatic decay mode selection, using internal current sensing to automatically adjust the decay mode as necessary to provide the smoothest current waveform. The Tic T500 can operate from 4.5 V to 35 V and can deliver up to approximately 1.5 A continuous per phase without a heat sink or forced air flow (the peak current per phase is 2.5 A). This version is sold with connectors soldered so no soldering is necessary to use it.

Powering the Tic T500 with a supply voltage between 4.5 V and 5.5 V might cause its logic voltage to be lower than normal, which could affect operation. See the user’s guide for more information.

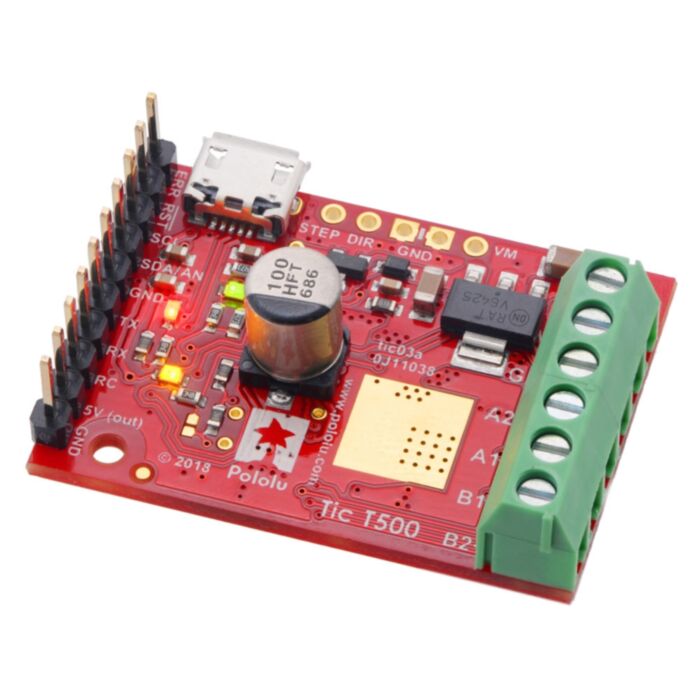

Tic T500 USB Multi-Interface Stepper Motor Controller (Connectors Soldered).

A version is also available with header pins and terminal blocks included but not soldered.

People often buy this product together with:

Stepper Motor: Bipolar, 200 Steps/Rev, 20×30mm, 3.9V, 0.6 A/PhaseStepper Motor: Bipolar, 200 Steps/Rev, 20×30mm, 3.9V, 0.6 A/Phase
Pololu Stamped Aluminum L-Bracket for NEMA 17 Stepper MotorsPololu Stamped Aluminum L-Bracket for NEMA 17 Stepper Motors
Stepper Motor: Bipolar, 200 Steps/Rev, 42×38mm, 2.8V, 1.7 A/PhaseStepper Motor: Bipolar, 200 Steps/Rev, 42×38mm, 2.8V, 1.7 A/Phase

Dimensions

Size:1.50" × 1.05" × 0.47"
Weight:8.2 g

General specifications

Model:Tic T500
Motor driver:MP6500
Control interface:USB; non-inverted TTL serial; I²C; RC servo pulses; analog voltage; quadrature encoder
Minimum operating voltage:4.5 V1
Maximum operating voltage:35 V
Continuous current per phase:1.5 A2
Maximum current per phase:2.5 A3
Maximum step rate:50000 PPS
Microstep resolutions:full, 1/2, 1/4, and 1/8
Reverse voltage protection?:Y
Connectors soldered?:Y

Identifying markings

PCB dev codes:tic03a, tic03b
Other PCB markings:0J11038, 0J11910

Notes:

1
Powering the Tic T500 with a supply voltage between 4.5 V and 5.5 V might cause its logic voltage to be lower than normal, which could affect operation. See the user’s guide for more information.
2
Without a heat sink or forced air flow.
3
With sufficient additional cooling.
