Digital Temperature & humidity sensor (With Stainless Steel Probe)

Rating:
100% of 100
SKU: SEN0148 Brand: DFRobot

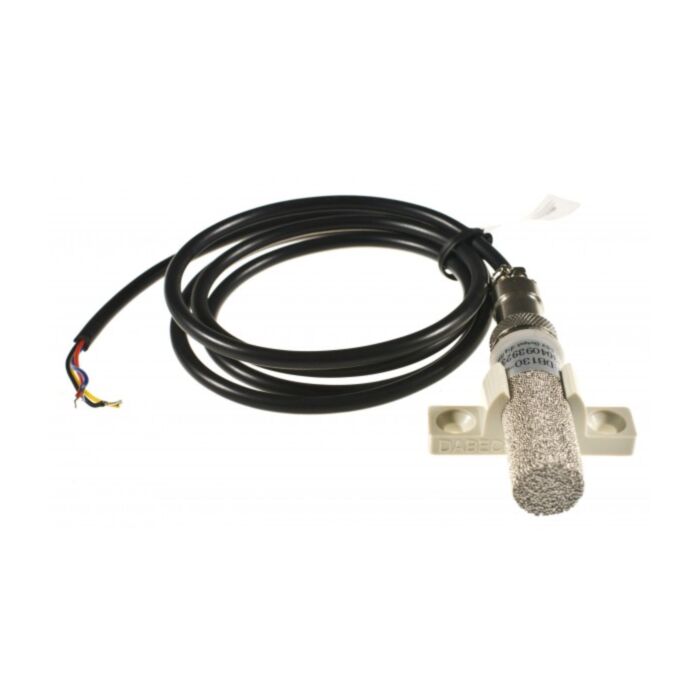

This is an anti-rust, robust and precise SHT1x sensor, which can master enterprise-class and industrial-level applications.
$53.05 AUD, inc GST
$48.23 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 31 and Jan 06

Quantity Discounts:

  • 6-12 $46.78 (exc GST)
  • 12+ $45.82 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This is an anti-rust, robust and precise SHT1x sensor, which can master enterprise-class and industrial-level applications. It can be applied in various fields: telepoint base stations, electronic control cabinet, production site, storehouse, machine rooms, greenhouses, animal farming, medicine stock and etc. Metallic package enables it to deal with the very dusty or other severe circumstance. the wall-hanging style makes it easy to install.

The metallic mesh covering the sensor adopts method of infiltering copper during sintering to enhance the temperature resistance, pressure resistance, and wearing resistance of it. The 2-wire serial interface and internal voltage regulation allows for easy and fast system integration. Moreover, it's Arduino compatible and we will supply the library for it.

Specification
  • Power consumption: 0.15mW(Average)
  • Interface Type: Two-Wire interface(Digital)
    • Red wire - 5v
    • Blue wire - GND
    • Yellow wire - Clock wire
    • Black wire - Data wire
  • Humidity Ranger:0-100%RH
  • Temperature ranger: -10 - 80°C
  • Humidity accuracy:±5.0%RH
  • Temperature accuracy:±0.5°C
  • Size: 49mm x 14mm
Connection


Caution: the line to the ground is blue instead of black.

Parts List
  • Digital Temperature and humidity sensor (1 unit)
Documents

This product is listed in:

Sensors>Weather>Temperature & Humidity
