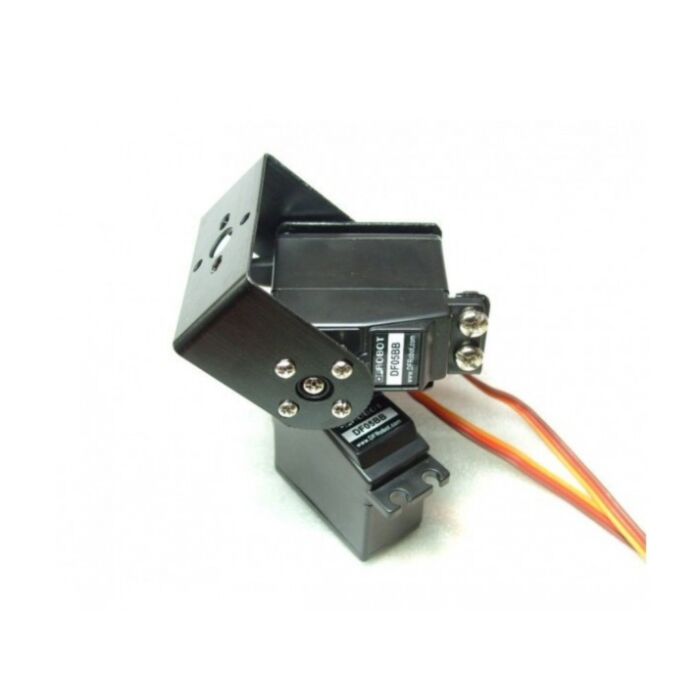

DF05BB Tilt/Pan Kit (5kg)

SKU: FIT0045 Brand: DFRobot
This DF05BB Pan and Tilt assembly for horizontal surface mount. Made using two DFRobot servo brackets. Perfect for your small remote piloted robot! Includes hardware and two DF05 ball bearing servos.
$48.60 AUD, inc GST
$44.18 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

  • 10-25 $42.42 (exc GST)
  • 25+ $41.09 (exc GST)
- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This DF05BB Pan and Tilt assembly for horizontal surface mount. Made using two DFRobot servo brackets. Perfect for your small remote piloted robot! Includes hardware and two DF05 ball bearing servos.

Specification

  • Working Voltage: 4.8-6V
  • Working current: 0.1-0.8 A
  • Torque: 4.8kg-cm @ 4.8V ; 5.5kg-cm @6V
  • Average speed: 60 rpm
  • Rotation range: 0- 120
  • Working Temperature: 0°C~55°C
  • Size: 41x20x38mm
  • Weight: 48g


Parts List

  • DF05BB Standard Servo  (2 untis)
  • Aluminum multifunction  bracket (1 units)
  • Aluminum U-shape bracket  (1 unit)
  • Bearing cup (1 unit)
  • High-quality sets of screw nuts (1 set)

Assembly guide

Assembling the base plate

Attaching the base plate to servo

Adding the second servo to the tilt arm kit

Adding the final arm to the tilt arm kit
