DB15 Screw Terminal Adapter for MCP23X/26X Advanced Motor Controllers

SKU: POLOLU-3596 Brand: Pololu

This screw terminal breakout adapter for a DB15 (sometimes also called DA-15) connector is designed to work with the MCP233, MCP236, MCP263, and MCP266...

$25.80 AUD, inc GST

$23.45 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

10+ $22.52 (exc GST)
25+ $21.81 (exc GST)

This adapter breaks out connections from a 15-pin D-subminiature connector (popularly called DB15, but more properly DA-15) to a set of screw terminals, making accessing those pins easier during prototyping. The adapter is designed specifically to work with the MCP Advanced Motor Controllers that feature a DB15 connector: the MCP233, MCP236, MCP263, and MCP266. However, it could also be used as a generic breakout board for other hardware that uses the same connector, like old computer joysticks or MIDI devices (where it is called a game port).

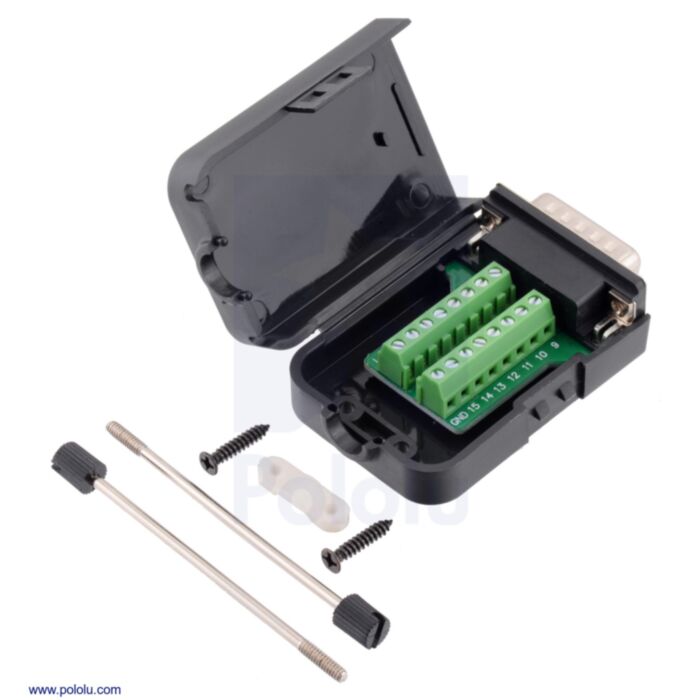

DB15 Screw Terminal Adapter for MCP23X/26X Advanced Motor Controllers with included hardware.

DB15 Screw Terminal Adapter for MCP23X/26X Advanced Motor Controllers.

DB15 screw terminal adapter mated to an MCP266 Advanced Motor Controller.

The adapter includes a plastic housing, connector screws, and a small clip that can be screwed into the housing for wire strain relief.

DB15 Screw Terminal Adapter for MCP23X/26X Advanced Motor Controllers with included hardware.

People often buy this product together with:

MCP263 Dual 60A, 34VDC Advanced Motor Controller

MCP233 Dual 30A, 34VDC Advanced Motor Controller

Dimensions

Size:	2.6" × 1.7" × 0.8"¹
Weight:	40 g

Notes:

1: The adapter length, 2.6", excludes the screw knobs, which extend the length by about 0.3" when installed and fully tightened.
