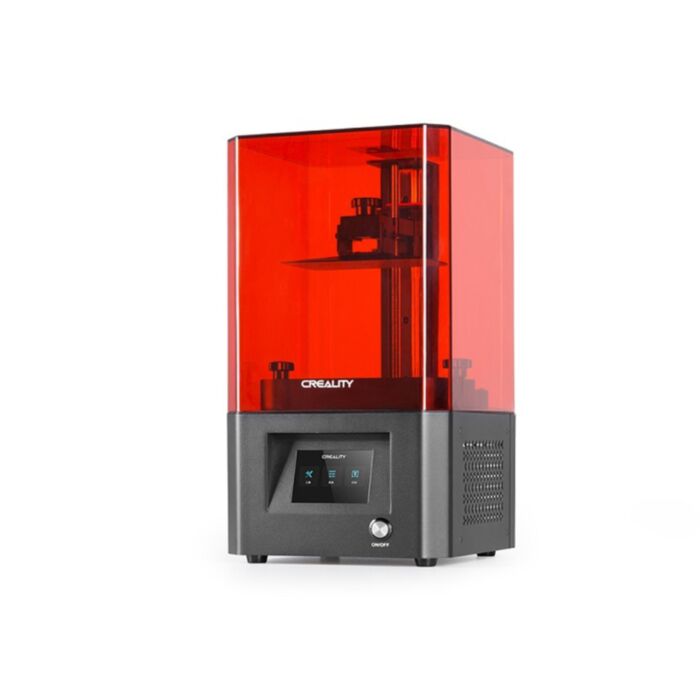

Creality LD-002H UV Resin 3D Printer

A new and improved version of the LD-002R, bigger, better, faster. The LD-002H is everything the LD-002R wishes it could be.

Features

• Upgrade UV Light Source Module: The Creality LD-002H is equipped with a UV integrated light source, providing improved light transmission. The UV light achieves 8000uw/cm². A consistent UV light source is the most important factor in printing. It's so strong in fact that you'll need new exposure settings if you've got the older LD-002R! Check out Tim's excellent guide to get it just right!
• Z-axis Linear Rail: The linear rail provides a much stronger structural mechanism for the Z-axis, resulting in better, more refined prints.
• Air Filtration System with Activated Carbon: Activated carbon can effectively reduce the emission of the odor from resin and is more environmental-friendly.
• Easy Leveling System: Simply lower the printing platform atop an ordinary piece of paper. Then hand tighten the leveling nut to complete the leaving process.
• Powerful Slicer Software: The Creality LD-002H resin printer is supported by CHITU BOX software for slicing. CHITU BOX is easy to use, with one-key functions to add a model, adjust supports, model size, etc.
• 3.5 Inchi Full-color Touch Screen: A simple UI design interface can monitor real-time printing information, is easy to operate, and user-friendly.
• NEW ITEM: Hi-Res 6.08” 2K monochrome screen: The Creality LD-002H utilizes a 1620*2560 monochrome LCD for layer exposure. Not only does it increases print speed up to 200% or more, but the life of the screen is increased by up to 400%.

Technical Specifications

• Molding Tech: LCD
• Layer height: 0.03-0.05mm
• Print Size: 130 x 82 x 160mm
• Machine Size: 221 x 221 x 403mm
• Package Size: 295 x 295 x 540mm
• Screen: 3.5inch Touch Screen
• Screen resolution: 1620 x 2560
• Print Speed: 1-4 layers/s
• XY axis precision: 0.051mm
• Machine weight: 6.5Kg
• Gross Weight: 8.3Kg
• Uplift Speed: 50-200mm/min
• Rated Power: 72W
• Resin: Check out the full range of Creality resins

Check out Creality's Unboxing Video

For technical support and advice setting up your Printer, we recommend engaging the Creality's Official Technical Support Page.

Hobbyist machines such as this have a 6-month warranty against manufacturing defects for non-consumable parts. There is no warranty for user error or induced damage. Professional grade machines include a 12-month warranty as they are constructed with more durable hardware.
