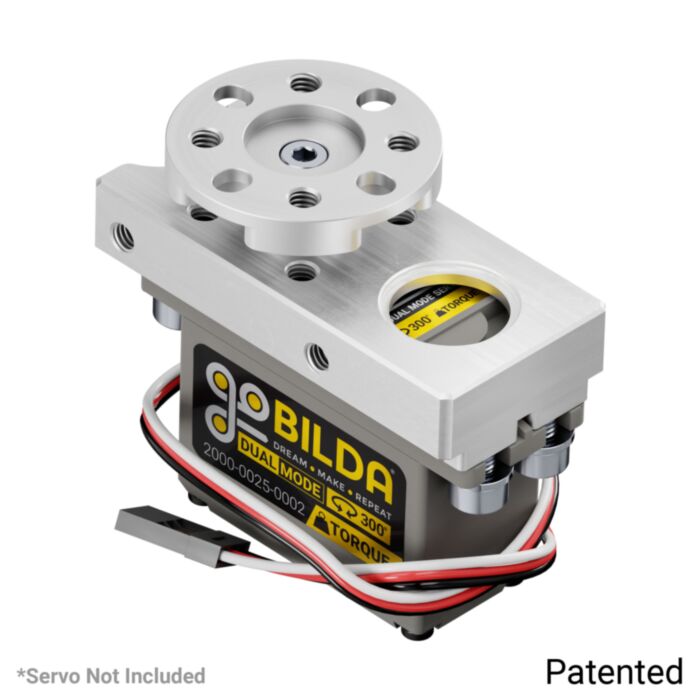

Compact ServoBlock™ (27mm Width, For Standard Size H25T Spline Servo, Hub-Shaft)

SKU: GB-3217-2701-2501 Brand: goBilda
This 25 tooth ServoBlock® isolates radial loads from your servo with a robust frame that’s highly compact, super mountable, and rocking an.....
$91.30 AUD, inc GST
$83.00 AUD, exc GST

Available with a lead time
Expect dispatch between Jun 05 and Jun 12

Quantity Discounts:

  • 10-25 $78.85 (exc GST)
  • 25+ $74.70 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This 25 tooth ServoBlock® isolates radial loads from your servo with a robust frame that’s highly compact, super mountable, and rocking an integrated bearing to support its Hub-Shaft.

Compared to the 43mm Width Compact ServoBlock (SKU: 3217-0001-2501), this ServoBlock™ is even more abbreviated in its design, boasting a 27mm width that helps it fit just right in 1143 Series Mini Low-Side U-Channel.

The threaded holes on the face and sides provide for secure attachment via M4 screws. The hub-shaft, meanwhile, maintains the goBILDA® 16mm square pattern of surrounding structure with thru-holes and threaded holes to provide for easy attachment of almost any goBILDA® component.

Importantly, the 14mm diameter protrusion of the integrated pillow block fits through the 14mm diameter holes of Mini Low-Side U-Channel. As a result, when you’re using this ServoBlock® with a goBILDA® 2000 Series Servo, its Hub-Shaft rises 8mm from the face of channel!

Downloads

Specs

Weight 35g (with Included Hardware)
IP Patented
Included Hardware - M3 Screw 8mm Length M3 Screw (1 screw)
Included Hardware - M4 Screws 8mm Length M4 Screws (4 screws)
Included Hardware - Washers 4mm ID x 8mm OD Washers (4 washers)
