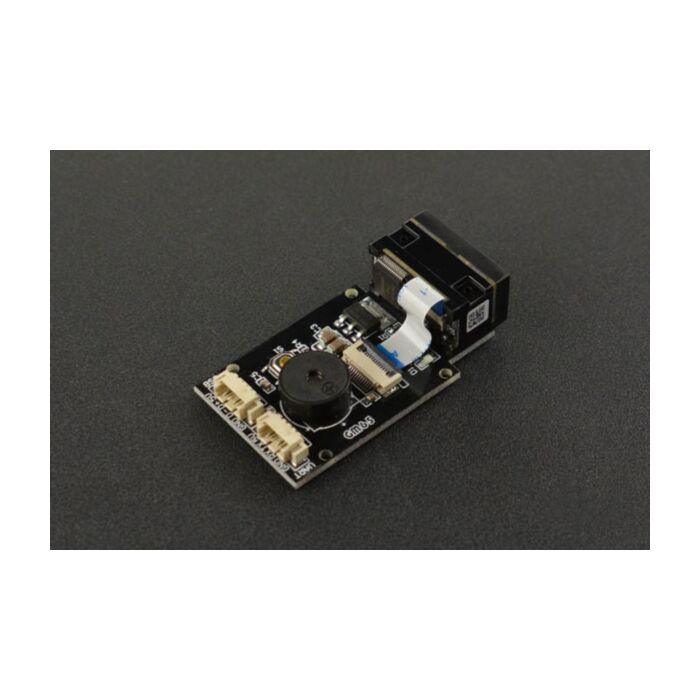

CM65 QR & Barcode Scanner Module

Rating:

100% of 100

SKU: DFR0660 Brand: DFRobot

This CM65 code scanner module can accurately read the barcode or QR code on paper or screen at high speed (about 1s) even in the poorly-lit environment. By using...

$95.75 AUD, inc GST

$87.05 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 30 and Feb 03

Quantity Discounts:

6-12 $84.44 (exc GST)
12+ $82.69 (exc GST)

This CM65 code scanner module can accurately read the barcode or QR code on paper or screen at high speed (about 1s) even in the poorly-lit environment.

By using the intelligent image recognition algorithm, this module can easily decode all kinds of common 1D/2D codes. Through the onboard micro USB and UART interface, it can be directly plugged into a computer or integrated to various devices. The module is configurable via scanning ‘configuration mode’ so as to meet some strict scanning requirements. Besides that, with an onboard light source, this scanner can work well even in the dark and provide consistent scanning performance in the extreme temperature range.

This module can be easily embedded into multi-medium barcode scanning equipment, including self-service vending machine, subway gate machine, access control, payment machine, etc.

Specification

Optical System: CMOS
Capture Light Source: 617nm LED
Lighting Source: 6500K LED
Scanning Angle: 34° (horizontal), 26° (vertical)
Minimum Contrast: 30%
Resolution: 648x488
Voltage: DC 5V
Ambient Light: 0~86000lux
Interface: USB, UART
1D Codes Supported: Codebar, Code 11, Code 39/Code 93, UPC/EAN, Code 128/EAN128, Interleaved 2 of 5, Matrix 2 of 5, MSI Code, Industrial 2 of 5, GS1 Databar(RSS)
2D Codes Supported: QR code, Data Matrix, PDF417
Light Source: white
Operating Temperature: 0°C ~ 50°C
Storage Temperature: -40°C ~ 70°C
Operating Humidity: 10%~80%
Scan Angles: roll 360°; pitch ±60°; skew ±65°
Current: 120mA(scanning), 30mA(standby)

Documents

Datasheet

Shipping List

1x CM65 QR & Barcode Scanner Module
1x USB adapter cable
1x Pigtail with connector
