Chip Quik SMD Removal Kit - SMD1

SKU: ADA2660

$34.00 AUD, inc GST
$30.91 AUD, exc GST
Chip Quik SMD Removal Kit - SMD1
34 AUD

SKU: ADA2660

$34.00 AUD, inc GST
$30.91 AUD, exc GST
1 reviews 0 5 5

Removing SMD parts more complex than a resistor or SOT-23 can be a real bear. You want to get the part off without damaging traces, and if possible, without damaging the part either. You could haul out your hot air tool or you could go in surgically with this handy SMD Removal Kit from Chipquik - SMD removal is made easy! It uses a special metal alloy that bonds to your solder but stays liquid for a long time so can melt it over the existing pads and then remove with tweezers. This version has a leaded alloy, best for use with lead-based solder.

In just four steps you're rocking and rolling:

  1. Apply flux [Adafruit used the Chipquick Tack Flux 10cc Syringe] to all leads of SMD
  2. Solder alloy uniformly on all pins of SMD
  3. Lift SMD or slide SMD from board
  4. Clean site with swab dipped in flux, solder wick, alcohol pad.
  5. **TA-DA**

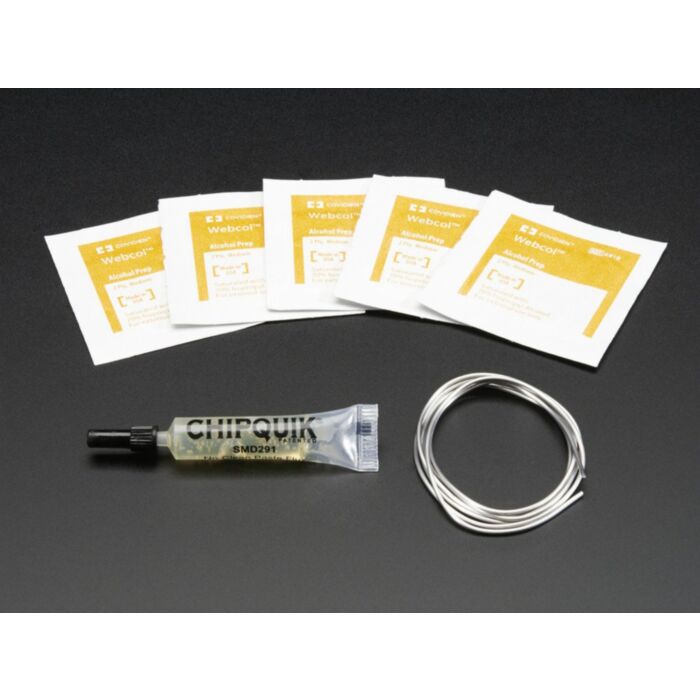

Kit Includes:

  • 2.5 feet of Removal Alloy
  • 1x tube of No-Clean Paste Flux
  • 5x Alcohol wipes
  • Instruction sheet

Technical Details

This product is listed in:

Documentation and Resources:
  • The Maker Revolution
  • The Maker Revolution celebrates the creation of new devices and the modification of existing ones - the transition from a consumer buying goods to eventually having a major part in their creation. The Maker Revolution places strong emphasis on free (...
  • Soldering 101
  • Imagine being a builder without a hammer, or a car without a brake, this is kind of useful, but nowhere near as useful as it could be. This is like being a maker/DIY’er/enthusiast without being able to solder. Sure you can breadboard your desig...
  • Choosing a Soldering Iron
  • Hello, and welcome to our tutorial where we’ll be looking at two different types of soldering irons and which one is going to be best for your workshop. We’ll be specifically looking at soldering irons, not how to solder, so for more info...

Product Comments


Customer Reviews

  1. Review by Hugh verified purchaser
    Rating
    100

    Removed an eeprom from TiVo. SMD removal kit worked a treat leaving the PCB in excellent condition ready for the new chip. My soldering ability would be described as 'amateur competent' but it's not my day job. (Posted on 18/11/2017)
