Search results for: 'led driver breakout'

Expand your project possibilities, with the Adafruit AW9523 GPIO Expander and LED Driver Breakout - a cute and powerful I2C expander with a lot of tricks up it's sleeve.

This is the magic sauce in Adafruit's 7-segment and matrix backpacks, now available in breadboard-friendly breakout board format. The HT16K33 is a neat little chip that...

The SparkFun LP55231 LED Driver Breakout is a self-contained solution for developing and deploying the nine-channel I2C LED controller. Remarkably simple, the breakout...

This breakout board is something Adafruit designed in-house to help Adafruit work with 'dot-clock' 40-pin TFT displays that require the RGB pixel data to be clocked in continuously...

This carrier board for ST’s VNH5019 motor driver IC operates from 5.5 to 24 V and can deliver a continuous 12 A (30 A peak). It works with 2.5 to 5 V logic levels, supports ultrasonic (up to 20 kHz) PWM, and features current sense feedback (an analog voltage proportional to the motor current). Along with built-in protection against reverse-voltage, over-voltage, under-voltage, over-temperature, and over-current, these features make this product a great general-purpose motor driver.

For all of you out there who want to control 24 channels of PWM, Adafruit salute you! They also would like you to check out this breakout board for the TLC5947 PWM driver...

This is a breakout board for the WS2812B RGB LED. The WS2812B is actually an RGB LED with a WS2811 built right into the LED! All the necessary pins are broken out to 0.1" spaced headers for easy bread-boarding. Several of these breakouts can even be chained together to form a display or an addressable string.

Start your addressable LED project faster than ever with the SparkFun WS2812B RGB LED Breakout (with Headers). This version of the board comes with...

For all of you out there who want to control 12 channels of PWM, Adafruit salute you! They also would like you to check out this breakout board for the TLC59711 PWM driver...

Add a splash of RGB LEDs to a project you're working on, with this adorable 13x9 RGB LED matrix breakout. It features -- no surprise -- 117 RGB LEDs,...

Stepper motors are used for CNC machines, 3D printers, and whenever else one needs precise, powerful motion. But to get good behavior from steppers you...

Stepper motors are used for CNC machines, 3D printers, and whenever else one needs precise, powerful motion. But to get good behavior from steppers you...

The Adafruit Sparkle Motion Mini is part of our series of "Sparkle Motion" boards, which are our attempt to make the best small WLED-friendly...

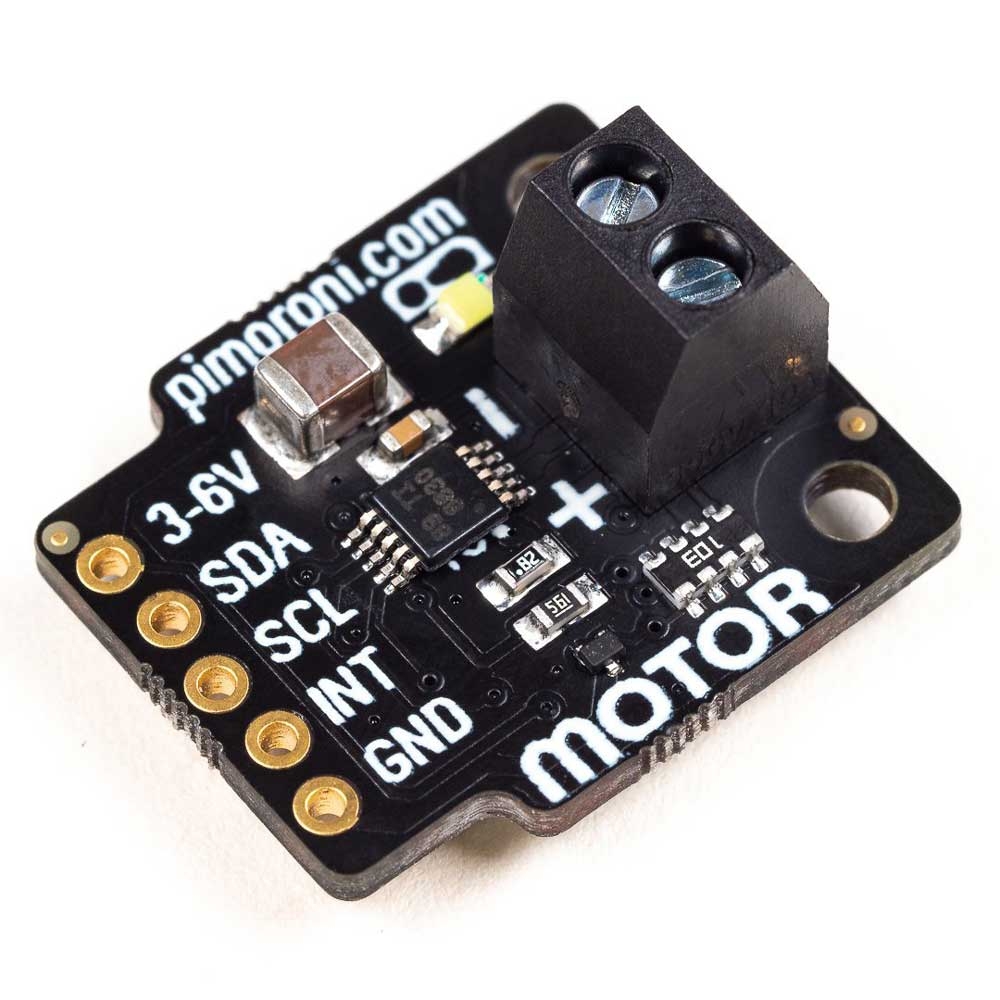

An H-bridge DC motor driver with configurable current limit (0.2 or 1A) and up to four different I2C addresses. Great for DIY robot builds.

The Adafruit Sparkle Motion Mini is part of our series of "Sparkle Motion" boards, that are our attempt to make the best small WLED-friendly...

Sparky the Blue Smoke Monster shows up whenever the magic smoke is let of of an electronic component. And his very favorite is whenever folks first start...

An all-in-one, RP2350 powered controller for HUB75 LED matrix panels....

Stepper motors are used for CNC machines, 3D printers, and whenever else one needs precise, powerful motion. But to get good behavior from steppers, you...

What is better than smart RGB LEDs? Smart RGB+White LEDs! These NeoPixels now have 4 LEDs in them (red, green, blue and white) for excellent lighting effects. Make...

These are the smallest NeoPixel breakouts around! Tiny, bright RGB pixels to your project. These little PCBs are only 8mm x 10mm and have two sets of three pads...

The TLC5940 is a 16 channel PWM unit with 12 bit duty cycle control (0-4095), 6 bit current limit control (0-63), and a daisy chainable serial interface. This breakout board is a good way to take full advantage of this useful IC. All 16 PWM channels are broken out to standard 0.1" headers, which run alongside convenient voltage and ground rails. Also, because the TLC5940 can be daisy-chained, the breakout is designed to support that feature. On the left-hand side of the board all serial inputs are broken out to 0.1" headers and likewise with output on the right-hand side.

For those of Adafruit who are maybe a little tired of rainbows, Adafruit now have 'smart LEDs' in monochrome! Make your own smart Warm White LED arrangement with the same integrated...

The SparkFun AS7343 Qwiic Spectral Sensor enables users to measure light in both the visible spectrum (VIS) and near-infrared (NIR) ranges, all on a...

The SparkFun AS7262 Visible Spectral Sensor Breakout brings spectroscopy to the palm of your hand, making it easier than ever to measure and characterize how different...

Transform your Raspberry Pi Pico into a electronic adventure playground packed with physical computing goodies including an LCD screen, motor drivers, a mini breadboard, and much more!

This perky Pico W-powered controller for WS2812/Neopixel/SK6812 LEDs is perfect for coding up some wireless blinkenlight shenanigans...

UPDI stands for Unified Program and Debug Interface, but this board is so smol and cute that we will call it the Unusually Playful Device Interfacer and...

The Adafruit Feather series gives you lots of options for a small, portable, rechargeable microcontroller board. Perfect for fitting into your next prop build! This...

Are you low on I/O? No problem! The SX1509 Breakout is a 16-channel GPIO expander with an I2C interface – that means with just two wires, your microcontroller can interface with 16 fully configurable digital input/output pins. But the SX1509 can do so much more than just simple digital pin control. It can produce PWM signals, so you can dim LEDs. It can be set to blink or even breathe pins at varying rates. And, with a built-in keypad engine, it can interface with up to 64 buttons set up in an 8x8 matrix.

These are the smallest NeoPixel breakouts around! Tiny, bright RGB+White pixels to your project. These little PCBs are only 9.1mm x 9.1mm and have two sets of three pads on the back for soldering wires. These ultra-bright LEDs have a constant-current driver cooked right into the LED package! The pixels are chainable - so you only need 1 pin/wire to control as many LEDs as you like.

The SparkFun AS7263 Near Infrared (NIR) Spectral Sensor Breakout brings spectroscopy to the palm of your hand, making it easier than ever to measure and characterize...

The Klip Motor Driver for BBC microbit allows you do more than just drive motors. It breaks out pins 0, 1, 2, 3V & GND from the microbit & connects to ZIP LEDS.

An all-in-one, USB-C powered controller for WS2812/Neopixel and APA102/Dotstar addressable LED strips...

An easy, solderless, swappable way to use breakouts with your Raspberry Pi Pico - add up to three Pimoroni breakouts (2 x I2C and 1 x SPI) to the sturdy slots and get coding and creating!

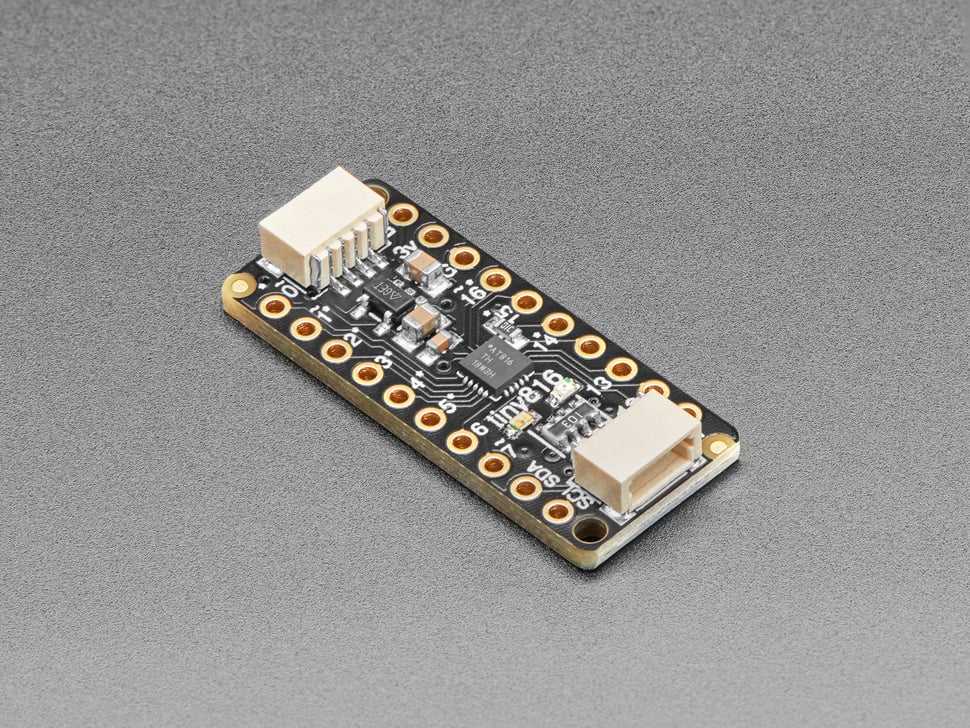

This breakout board is a "three in one" product:The ATtiny1616 is part of the 'next gen' of AVR microcontrollers, and now we have a cute...

Add a stylish navigational aid to your project with our fully assembled ANO scroll wheel encoder breakout!...

UPDI stands for Unified Program and Debug Interface, but this board is so smol and cute that we will call it the Unusually Playful Device Interfacer and...

Display meaningful output from your micro:bit project with the Kitronik :VIEW Graphics128 OLED display. Add a monochrome 128x64 display to the BBC...
