Capacitive Liquid Level Sensor for Arduino

Skip to the beginning of the images gallery

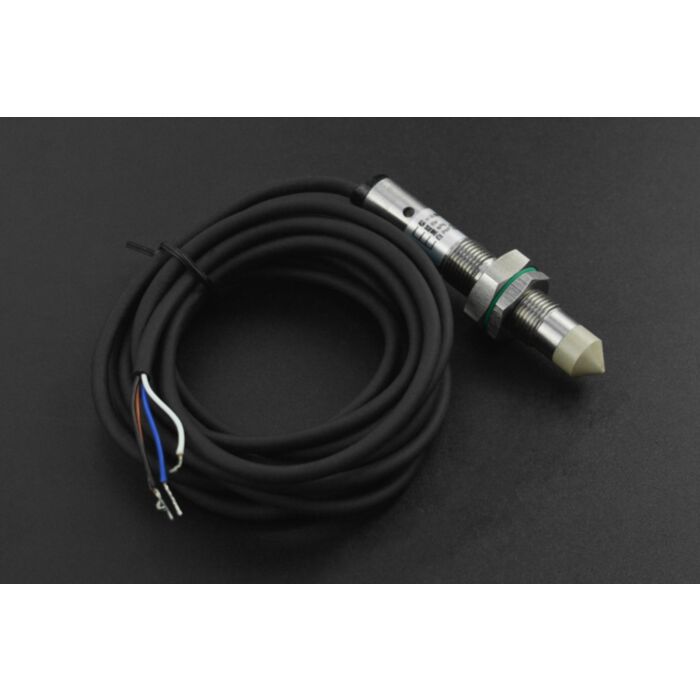

Capacitive Liquid Level Sensor for Arduino

SKU: SEN0507 Brand: DFRobot

This capacitive liquid sensor with adjustable sensitivity can be used to detect high-viscosity and low-corrosive liquids, such as glue, lubricating oil,...

$104.95 AUD, inc GST

$95.41 AUD, exc GST

Available with a lead time
Expect dispatch between Feb 10 and Feb 13

Quantity Discounts:

5-10 $92.55 (exc GST)
10+ $90.64 (exc GST)

Introduction

Different from our previous liquid level sensors, this capacitive liquid sensor can be used to detect high-viscosity and low-corrosive liquids, such as glue, lubricating oil, grease, ink, engine oil, powder and other special materials. The sensitivity of the sensor can be adjusted by the knob (clockwise to increase, counterclockwise to decrease) to adapt to more media. It has an indicator light to feedback the sensor status in real time, and comes with polarity protection and over-current protection mechanism.

Capacitance contact detection: Determine whether there is liquid and distinguish between liquids by detecting the capacitance of the liquid.

Conical head of anti-hanging-liquid design: Reduces the phenomenon of hanging liquid in detecting.

Special circuit design: Even if there are liquid residues, foam, scabs, etc. in the probe part, the appearance of false signals can be avoided by adjusting the sensitivity.

Stability design: With temperature compensation, the liquid level sensor can detect stably in the range of low temperature -25°C and high temperature 75°C. These detailed designs ensure the stability of detection performance to a large extent.

Material: The head is made of PEEK material, the shell is made of 316 stainless steel, with general anti-corrosion performance, M12*1 standard thread, easy to install.

Precautions

The liquid sensor should not be used in the following cases:

Temperature exceeds 75°C

Pressure higher than 0.3MP

There is dry glue on the probe that can't be removed

Features

Can detect high viscosity and low corrosive liquids

Conical head of anti-hanging-liquid design

NPN+PNP dual output

Applications

Detect high viscosity and low corrosive liquids

Specification

Detection Mode: Contact detection

Detection Principle: Capacitive detection

Power Supply Voltage: 12-24V

Detection Object: High viscosity and low corrosive liquid

Speed: Response speed is 20ms, switch output frequency is 50Hz

Output Signal: NPN+PNP Dual Output

Output Current: Max100mA

Working Power: <0.5W

Working Temperature: -25°C~+80°C

Protection Level: IP65

Appearance Material: PEEK/316 stainless steel

Protection Mechanism: Polarity protection, over-current protection

Wiring Instructions: Brown-positive, blue-negative, black-NPN, white-PNP

Parts List

Capacitive Liquid Level Sensor x1

Screwdriver x1
