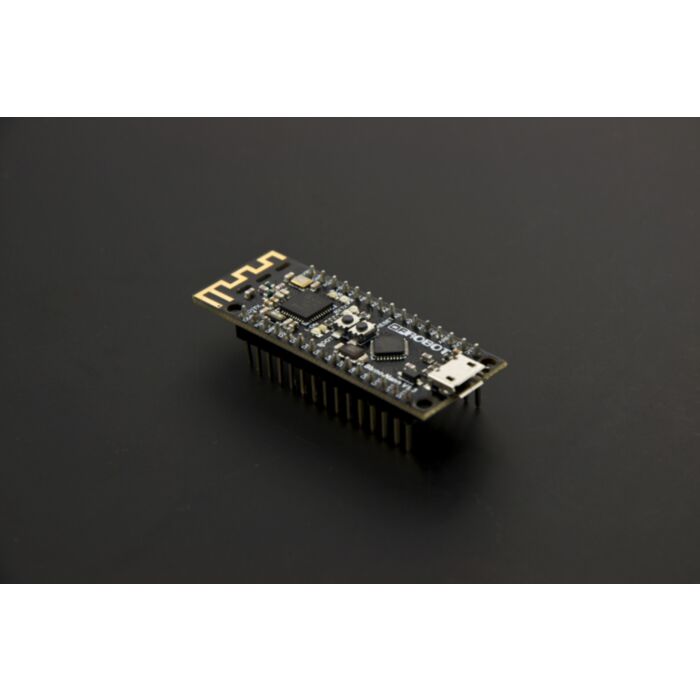

Bluno Nano

SKU: DFR0296 Brand: DFRobot

Here comes the second member in DFRobot Bluno family, the Bluno Nano. Came in a size of a gum, the Bluno Nano is perfect for BLE projects with limited space or weight.

$42.10 AUD, inc GST

$38.27 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 29th of Apr

Quantity Discounts:

10-25 $37.13 (exc GST)
25+ $36.36 (exc GST)

Introduction

Here comes the second member in DFRobot Bluno family, the Bluno Nano. Came in a size of a gum, the Bluno Nano is perfect for BLE projects with limited space or weight.

Everything is getting smart now: wristbands and watches monitor your daily behaviours and become social; phone-controlled camera add-ons move and take shots as you like; smart gardens grow virtually in your ipad and sharing is made easy... The Bluetooth Low Energy technology has made it easy and achievable. It is exciting to see more and more smart gadgets poping out, but, isn't building own smart device and solving your own problems even cooler?

DFRobot's Bluno family is first of its kind in intergrating BT 4.0(BLE) module into Arduino Uno, making it an ideal prototyping platform for developers to go wireless. You will be able to develope your own smart bracelet , smart pedometer and more. Through the low- power Bluetooth 4.0 technology, real-time low energy communication can be made really easy.

Bluno Nano also integrates a TI CC2540 BT 4.0 chip with the Arduino UNO development board. It allows wireless programming via BLE, supports Bluetooth HID, supports AT command to config the BLE, and you can upgrade BLE firmware easily. Bluno is also compatible with all Arduino Uno pins which means any project made with Uno can directly go wireless! Whatsmore, we also developed the App for the Bluno (both Android and IOS), and they are completely opensource, so that you can modify and develope your own hardware-software platform.

Note: For expanding I/O ports, the Bluno Nano is compatible with all Arduino-Nano-compatible expansion shields. If you want to use Bluno Nano via other expansion shields, some extra wirings will be needed.

Version patch

v1.3 - Improve the design of antenna to support up to 50m BLE communication by two Bluno nano

Specification

On-board BLE chip: TI CC2540
Wireless Programming Via BLE
Support Bluetooth HID
Support AT command to config the BLE
Transparent communication through Serial
Upgrade BLE firmware easily
DC Supply:USB Powered or External 7V~12V DC
Microcontroller: Atmega328
Bootloader: Arduino Uno
Compatible with the Arduino Uno pin mapping
Size: 53x19x12mm
Weight: 20g

Documents

Demo Tutorial

Bluno Nano share the same Tutorial with Bluno

Parts List

Bluno Nano x1
