Big Easy Driver

SKU: ROB-12859

$30.38 AUD, inc GST
$27.62 AUD, exc GST

More Views

Big Easy Driver
30.38 AUD

SKU: ROB-12859

$30.38 AUD, inc GST
$27.62 AUD, exc GST
2 reviews 0 5 4.5

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

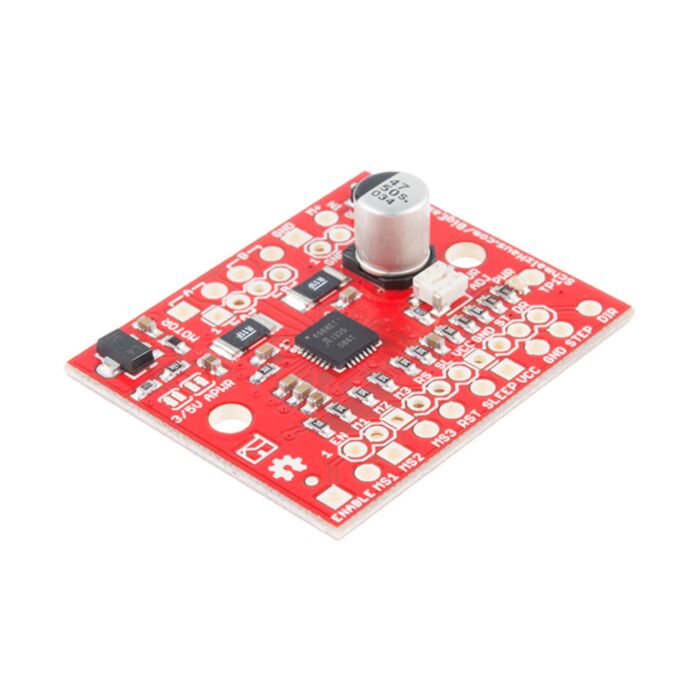

The Big Easy Driver, designed by Brian Schmalz, is a stepper motor driver board for bi-polar stepper motors up to a max 2A/phase. It is based on the Allegro A4988 stepper driver chip. It’s the next version of the popular Easy Driver board.

Each Big Easy Driver can drive up to a max of 2A per phase of a bi-polar stepper motor. It is a chopper microstepping driver which defaults to 16 step microstepping mode. It can take a maximum motor drive voltage of around 30V, and includes on-board 5V/3.3V regulation, so only one supply is necessary. Although this board should be able to run most systems without active cooling while operating at 1.4-1.7A/phase, aheatsink is required for loads approaching 2A/phase. You can find the recommended heatsink in the related items below.

Note: This product is a collaboration with Brian Schmalz. A portion of each sales goes back to him for product support and continued development.

Features:

  • Bi-polar Microstepping Driver
  • 2A/Phase Max
  • 1.4-1.7A/Phase w/o Heatsink
  • Max Motor Drive Voltage: 30V
  • On-board 5V/3.3V Regulation

Documents:

This product is listed in:

Documentation and Resources:
  • The Maker Revolution
  • The Maker Revolution celebrates the creation of new devices and the modification of existing ones - the transition from a consumer buying goods to eventually having a major part in their creation. The Maker Revolution places strong emphasis on free (...
  • Motor Drivers vs. Motor Controllers
  • If you’ve ever built a robot with wheels, or any motorised parts really, you’ll have come across the issue of needing to drive it from your microcontroller. Because a standard chip is only able to output a small amount of current, you&rsq...

Product Comments


Customer Reviews

  1. Review by Brian verified purchaser
    Rating
    80

    Nothing wrong with these drivers, plenty of examples.
    I have found the TB6600, also sold by Core, to be better value, easier to use and more flexible. (Posted on 21/06/2018)

  2. Review by Paul verified purchaser
    Rating
    100

    As advertised. (Posted on 2/06/2016)
