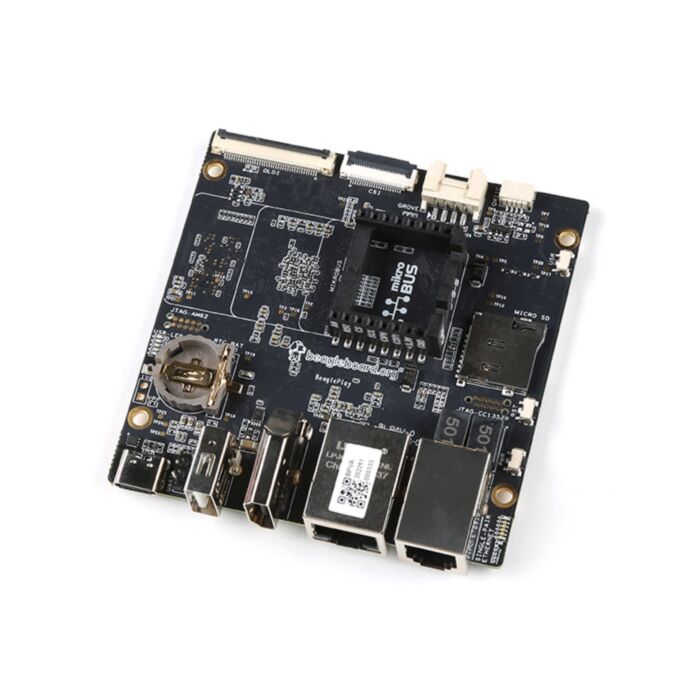

BeaglePlay

SKU: DEV-22659 Brand: Sparkfun

The BeaglePlay by BeagleBoard is a Single Board Computer is designed to simplify the complexities of embedded system development...

$229.95 AUD, inc GST

$209.05 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 28 and Dec 02

Quantity Discounts:

5-10 $202.77 (exc GST)
10+ $198.59 (exc GST)

Restrictions apply to this equipment as it uses button/coin cell batteries:

The equipment is intended to be used in trades, professions or industries
The equipment is not intended for sale to the general public
The equipment is not intended to be used where children are present
You are aware that this equipment may not meet child safety testing requirements as it is not intended to be used by consumers or general public, but rather, is intended to be used in trades, professions or industries in conjunction with the limitations and restrictions listed above
You are aware that these restrictions are due to a change in A ustralian legislation in 2022 for button/coin cell batteries

Button Battery Warning

A declaration of use will need to be submitted during checkout.

BeaglePlay is an open-source single board computer designed to simplify the process of adding sensors, actuators, indicators, human interfaces, and connectivity to a reliable embedded system. It features a powerful 64-bit, quad-core processor and innovative connectivity options, including WiFi, Gigabit Ethernet, sub-GHz wireless, and single-pair Ethernet with power-over-data-line. With compatibility with 1,000s of off-the-shelf add-ons and a customized Debian Linux image, BeaglePlay makes expansion and customization easy. It also includes ribbon-cable connections for cameras and touch-screen displays, and a socket for a battery-backed real-time-clock, making it ideal for human-machine interface designs.

BeaglePlay is built around Texas Instruments AM62x Sitara™ Processors which is a Quad-Core Arm® Cortex®-A53 Human-machine-interaction SoC. It comes with 2GB DDR4 RAM, 16GB eMMC storage, Full size HDMI, USB-A host port, USB-C power & connectivity port, serial debug interface, and much more.

Features

Processor: TI AM6254 (multicore A53s with R5, M4s and PRUs)
PMIC: TPS6521901
Memory: 2GB DDR4
Storage: 16GB eMMC
WiFi:
- PHY: WL1807MOD (roadmap to next-gen TI CC33XX WiFi 6 & BLE)
- Antennas: 2.4GHz & 5GHz
BLE/SubG:
- CC1352P7 M4+M0 with BeagleConnect firmware
- BeagleConnect Wireless enabled
- Antennas: 2.4GHz & SubG IEEE802.15.4 software defined radio (SDR)
Ethernet:
- PHY: Realtek RTL8211F-VD-CG Gigabit Ethernet phy
- Connector: integrated magnetics RJ-45
Single-pair Ethernet:
- BeagleConnect Wired enabled
- PHY: DP83TD510E 10Mbit 10BASE-T1L single-pair Ethernet phy
- Connector: RJ-11 jack
- Power (PoDL): Input: N/A (protection to 12V), Output: 5V @ 250mA
USB type-C:
- PD/CC: None, HS shorted to both sides
- Power: Input: 5V @ 3A, Output: N/A (USB-C DRP Not supported)
HDMI:
- Transmitter: IT66121
- Connector: full-size
Other Connectors:
- microSD
- USB 2.0 type-A (480Mbit)
- mikroBUS connector (I2C/UART/SPI/MCAN/MCASP/PWM/GPIO)
- Grove connector (I2C/UART/ADC/PWM/GPIO)
- QWIIC connector (I2C)
- CSI connector compatible with BeagleBone AI-64, Raspberry Pi Zero / CM4 (22-pin)
- OLDI connector (40-pin)

Documents

Datasheet
