Beaglebone Black

SKU: DEV-12076

$94.59 AUD, inc GST
$85.99 AUD, exc GST

More Views

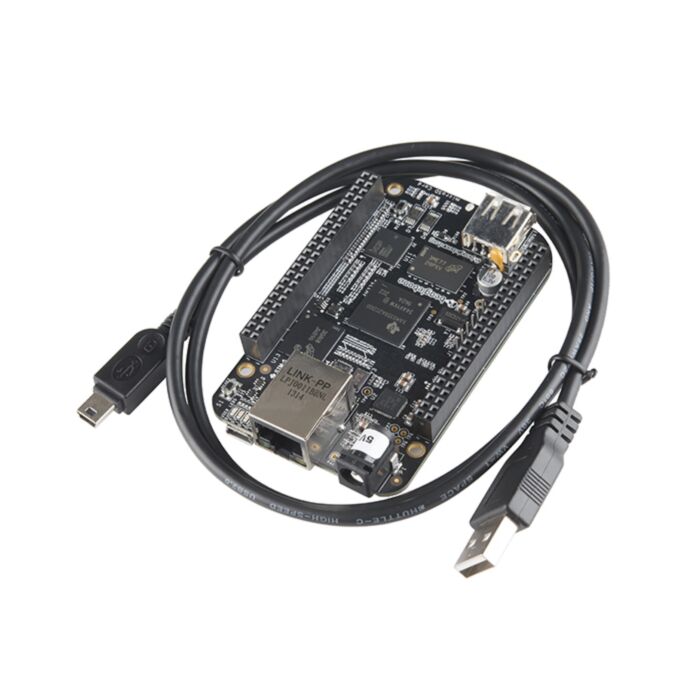

Beaglebone Black

SKU: DEV-12076

$94.59 AUD, inc GST
$85.99 AUD, exc GST

Retired Product

This product has been retired and kept here for reference.

NOTE: We are filling the rest of the orders with the next shipment. If you would like to place a new order for a Beaglebone Black check out the Rev C page to pre-order.

We are limiting orders to 1 unit, if you require more you will need to contact customer service.

The Beaglebone Black is a low-cost credit-card-sized development platform with good support from a fast growing community. The Beaglebone Black differs slightly from the regular version by providing you with an onboard micro HDMI port, 512MB of DDR3L DRAM, 2GB onboard flash memory, an AM3358 processor at 1GHz, and making JTAG optional with a user supplied header. Ultimately, the Beaglebone Black is still perfect for physical computing and smaller embedded applications.

With plenty of I/O and processing power for real-time analysis provided by the TI Sitara™ AM3358 ARM® Cortex™-A8 processor, Beaglebone Black can be complemented with cape plug-in boards which augment Black’s functionality.They’re called capes because Underdog is a beagle and he wears a cape. Makes sense, right?

At over 3 million Dhrystone operations per second and vector floating point arithmetic operations, Beaglebone Black is capable of not just interfacing to all of your robotics motor drivers, location or pressure sensors and 2D or 3D cameras, but also running OpenCV, OpenNI and other image collection and analysis software to recognize the objects around your robot and the gestures you might make to control it. Through onboard micro HDMI or VGA and LCD expansion boards, it is capable of decoding and displaying multiple video formats utilizing a completely open source software stack and synchronizing playback over Ethernet or USB with other BeagleBoards to create massive video walls. If what you are into is building 3D printers, then Beaglebone Black has the extensive PWM capabilities, the on-chip Ethernet and the 3D rendering and manipulation capabilities all help you eliminate both your underpowered microcontroller-based controller board as well as that PC from your basement.

Features:

  • AM3358 1GHz ARM® Cortex-A8 Processor
  • 2GB 8-bit eMMC Onboard Flash
  • 3D Graphics Accelerator
  • NEON Floating-Point Accelerator
  • 2x PRU 32-bit Microcontroller
  • Connectivity:
    • USB Client for power and communications
    • USB Host
    • Ethernet
    • Micro HDMI
    • 2x 46-pin Headers
  • Software Compatability
    • Angstrom Linux
    • Android
    • Ubuntu
    • Cloud9 IDE on Node.js with BoneScript
    • and More…

Includes:

  • 1x 3ft USB-A to Mini-B USB Cable

Documents:

This product is listed in:

Documentation and Resources:
  • The Maker Revolution
  • The Maker Revolution celebrates the creation of new devices and the modification of existing ones - the transition from a consumer buying goods to eventually having a major part in their creation. The Maker Revolution places strong emphasis on free (...
