BD65496MUV Single Brushed DC Motor Driver Carrier

Skip to the beginning of the images gallery

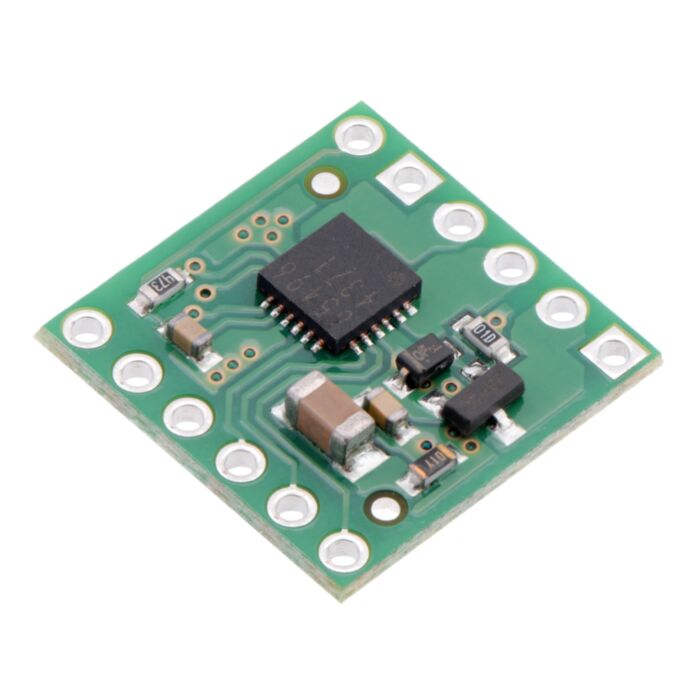

BD65496MUV Single Brushed DC Motor Driver Carrier

SKU: POLOLU-2960 Brand: Pololu

This compact breakout board for ROHM’s BD65496MUV motor driver offers an operating voltage range of 2 V to 16 V and can deliver a continuous 1.2 A (5 A...

$22.70 AUD, inc GST

$20.64 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 21st of May

Quantity Discounts:

10-25 $20.02 (exc GST)
25+ $19.60 (exc GST)

BD65496MUV Single Brushed DC Motor Driver Carrier, bottom view with dimensions.

The BD65496MUV from ROHM is a tiny H-bridge motor driver IC that can be used for bidirectional control of one brushed DC motor at 2 V to 16 V. It can supply up to about 1.2 A continuously and can tolerate peak currents up to 5 A for a few milliseconds. The BD65496MUV is a great IC, but its small surface-mount package makes it difficult for the typical student or hobbyist to use; Pololu's breakout board makes it easy to use with standard solderless breadboards and 0.1" perfboards. Since this board is a carrier for the BD65496MUV, Pololu recommend careful reading of the BD65496MUV datasheet (481k pdf). The board ships populated with SMD components, including the BD65496MUV and a reverse battery protection circuit.

Features

Single-channel H-bridge motor driver with shoot-through protection and internal free-wheeling diodes (can drive one DC motor)
Motor supply voltage: 2 V to 16 V
Logic supply voltage: 2.5 V to 5.5 V
Output current: up to 1.2 A continuous (5 A peak for a few milliseconds)
Two possible interface modes: IN/IN or EN/IN (one pin for speed and another for direction)
Configurable switching speed allows for PWM frequencies up to 500 kHz
Under-voltage lockout on the logic supply and protection against over-temperature
Carrier board adds reverse-voltage protection on the motor supply
Compact size (0.6"×0.6")

Included hardware

Two 1×6-pin breakaway 0.1" male headers are included with the BD65496MUV motor driver carrier, which can be soldered in to use the driver with breadboards, perfboards, or 0.1" female connectors. (The headers might ship as a single 1×12 piece that can be broken in half.) The right picture above shows the two possible board orientations when used with these header pins (parts visible or silkscreen visible). You can also solder your motor leads and other connections directly to the board.

Using the motor driver

Minimal wiring diagram for connecting a microcontroller to a BD65496MUV Single Brushed DC Motor Driver Carrier (default IN/IN mode).

Motor and power connections are made on one side of the board and control connections are made on the other. The driver requires an operating voltage between 2 V and 16 V to be supplied to the reverse-protected power input, VIN, and a logic voltage between 2.5 V and 5.5 V to be supplied to the VCC pin; the logic voltage can typically be supplied by or shared with the controlling device.

The BD65496MUV offers two possible control interface modes: IN/IN and EN/IN. The PWM (MODE) pin is used to select the control interface. If the PWM (MODE) pin is left disconnected or driven low, as shown in the minimal wiring diagram above, the selected interface is IN/IN, which generally requires two PWM signals, one for INA and another for INB. If this pin is driven high, as shown in the wiring diagram below, the selected interface is EN/IN, which turns the INB pin into a “motor direction” input and the INA pin into an enable input that can be supplied with a PWM signal to control speed.

Minimal wiring diagram for connecting a microcontroller to a BD65496MUV Single Brushed DC Motor Driver Carrier (EN/IN mode).

The PS (power save) pin can be driven low to put the driver into a low-power state and turn off the motor outputs, which is useful if you want to let the motor coast. The PS pin is pulled high through a 47 kO pull-up resistor on the carrier board so that the driver is enabled by default; the quiescent current draw of the board will be dominated by the current through this resistor when the pin is driven low to put the driver to sleep. In most applications, this pin can be left disconnected or can serve primarily as a way to enable coasting. For applications where a low-power mode is desirable, the 47 kO pull-up resistor can be removed (this resistor is located right next to the PS pin), or the logic voltage (VCC) for the driver can be dynamically supplied by a digital output of your microcontroller.

The following truth table (taken directly from the BD65496MUV datasheet) shows how the driver operates:

Pinout

PIN	Default State	Description
VIN		Reverse-protected power supply input; supply this pin with 2 V to 16 V.
VCC		2.5 V to 5.5 V logic power supply connection. Logic supply current draw is typically only a few milliamps at most, so in many applications this pin can optionally be dynamically powered by a microcontroller digital output.
GND		Ground connection points for the motor and logic supplies. The control source and the motor driver must share a common ground.
OUTA		H-bridge output A.
OUTB		H-bridge output B.
PWM (MODE)	LOW	Drive mode selection pin. LOW=IN/IN; HIGH=EN/IN.
INA	LOW	Motor control input A (functions like an enable pin in EN/IN mode).
INB	LOW	Motor control input B (functions like a direction pin in EN/IN mode).
PS	HIGH	Sleep/coast input. Drive low to tri-state the driver outputs and enable power-save mode.
TR1	LOW	Turn-on and turn-off time selection input 1.
TR2	LOW	Turn-on and turn-off time selection input 2.

All of the driver inputs except PS are internally pulled low through 100 kO pull-down resistors. The PS pin is pulled high on the carrier board through a 47 kO pull-up resistor that overpowers the driver IC’s internal 300 kO pull-down.

The TR1 and TR2 pins control the driver’s turn-on and turn-off time. Both pins are low by default, resulting in a default turn-on time of 150 ns (typical) and a default turn-off time of 50 ns (typical); this allows for PWM frequencies up to 500 kHz. If such a high switching frequency is not required, the TR1 and TR2 inputs can be configured for longer turn-on and turn-off times to help reduce electromagnetic interference (EMI). See the datasheet for more information.

Real-world power dissipation considerations

The BD65496MUV datasheet rates this driver for a maximum continuous current of 1.2 A. In Pololu's tests, Pololu found that the chip was able to deliver 1.2 A comfortably over the full operating voltage range, with the driver temperature only approaching the thermal shut down point at the very low end of the motor supply range. At 9 V in, Pololu did not see the driver’s thermal shutdown activate until Pololu pushed the continuous current past 1.5 A for many minutes, but Pololu generally advise against running so close to the limit that the driver overheats. Pololu's tests were conducted at 100% duty cycle with no forced air flow; PWMing the motor will introduce additional heating proportional to the frequency.

This product can get hot enough to burn you long before the chip overheats. Take care when handling this product and other components connected to it.

Schematic

BD65496MUV single brushed DC motor driver carrier schematic diagram.

This schematic is also available as a downloadable pdf (139k pdf).

People often buy this product together with:

DRV8838 Single Brushed DC Motor Driver Carrier

DRV8801 Single Brushed DC Motor Driver Carrier

MAX14870 Single Brushed DC Motor Driver Carrier

Dimensions

Size:	0.6" × 0.6"¹
Weight:	0.6 g¹

General specifications

Motor driver:	BD65496MUV
Motor channels:	1
Minimum operating voltage:	2 V
Maximum operating voltage:	16 V
Continuous output current per channel:	1.2 A
Peak output current per channel:	5 A²
Maximum PWM frequency:	500 kHz³
Minimum logic voltage:	2.5 V
Maximum logic voltage:	5.5 V
Reverse voltage protection?:	Y

Identifying markings

PCB dev codes:	md28a
Other PCB markings:	0J8950

Notes:

1: Without included hardware.
2: For no longer than 10 ms; duty cycle < 5%.
3: TR1 and TR2 low.

File downloads

ROHM BD65496MUV DC motor driver datasheet (481k pdf)
BD65496MUV single brushed DC motor driver carrier schematic diagram (139k pdf)

Printable schematic for the BD65496MUV single brushed DC motor driver carrier.
Drill guide for the BD65496MUV Single Brushed DC Motor Driver Carrier (28k dxf)

This DXF drawing shows the locations of all of the board’s holes.
Dimension diagram of the BD65496MUV Single Brushed DC Motor Driver Carrier (287k pdf)
3D model of the BD65496MUV Single Brushed DC Motor Driver Carrier (3MB step)

Recommended links

ROHM BD65496MUV product page

ROHM’s product page for the BD65496MUV, where you can find the latest datasheet and additional resources.
