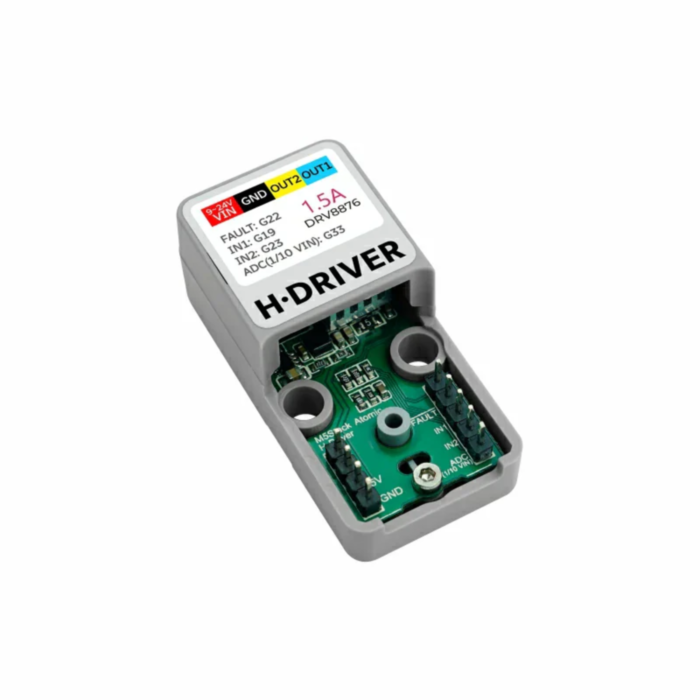

ATOMIC H-Bridge Motor Driver - 24V 1.5A

SKU: CE010056 Brand: M5Stack

Explore the ATOMIC H-Bridge Motor Driver, a compact 24V/1.5A DC motor controller featuring integrated protection circuits, real-time voltage monitoring, and seamless compatibility with ATOM series controllers.

$18.75 AUD, inc GST

$17.05 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 02 and Dec 13

Quantity Discounts:

10-25 $16.54 (exc GST)
25+ $16.19 (exc GST)

The ATOMIC H-Bridge Motor Driver revolutionises DC motor control with its compact design and robust feature set. This sophisticated 24V/1.5A motor controller integrates seamlessly with ATOM series controllers, providing precise bidirectional motor control with built-in protection circuits for reliable operation in both prototype development and educational environments.

Key Features

High-performance DRV8876 motor driver chip supporting 9-24V DC power input
1.5A continuous output current with 2A peak capacity
Real-time voltage monitoring through ADC pin G33
Comprehensive protection suite including undervoltage lockout, overcurrent, and thermal protection
Integrated DC/DC circuit for efficient power management
3.3V logic level compatibility
EMI reduction through spread spectrum clock technology

How to Use

Implementation of the ATOMIC H-Bridge Motor Driver is straightforward. Connect your DC power supply (9-24V) to the VH3.96-4P connector - we recommend the Core Electronics 24V DC 5A Fixed 2.1mm Tip Power Supply for reliable operation. The driver interfaces directly with ATOM series controllers through the built-in pins, enabling immediate motor control through standard programming interfaces.

For more advanced applications requiring higher power handling, consider the Sparkfun L298N Full-Bridge Motor Driver which supports up to 46V and 4A total current.

Technical Specifications

Input Voltage Range: 9-24V DC
Output Current: 1.5A continuous, 2A peak
Dimensions: 48 x 24 x 17.5mm
Weight: 15.7g
Protection Features: UVLO, CPUV, OCP, TSD

What's in the Box

1x ATOMIC H-Bridge Motor Driver Base
1x VH3.96-4P connector

Compatibility

Designed specifically for integration with ATOM series controllers, this H-bridge driver provides optimal performance when paired with DC motors operating within the 9-24V range. The 3.3V logic level compatibility ensures seamless integration with modern microcontrollers and development boards.

Additional Resources

Comprehensive documentation available through the official M5Stack documentation portal

About M5Stack

M5Stack specialises in developing modular electronic solutions that emphasise reliability and ease of integration. Their product range focuses on creating sophisticated yet accessible components for educational institutions, professional developers, and electronics enthusiasts. The company maintains high manufacturing standards while providing comprehensive documentation and support resources.

This product is listed in:

Breakouts & Modules>Motor Drivers & Controllers>Brushed DC Motor Drivers
Breakouts & Modules>Motor Drivers & Controllers>Brushed DC Motor Controllers
