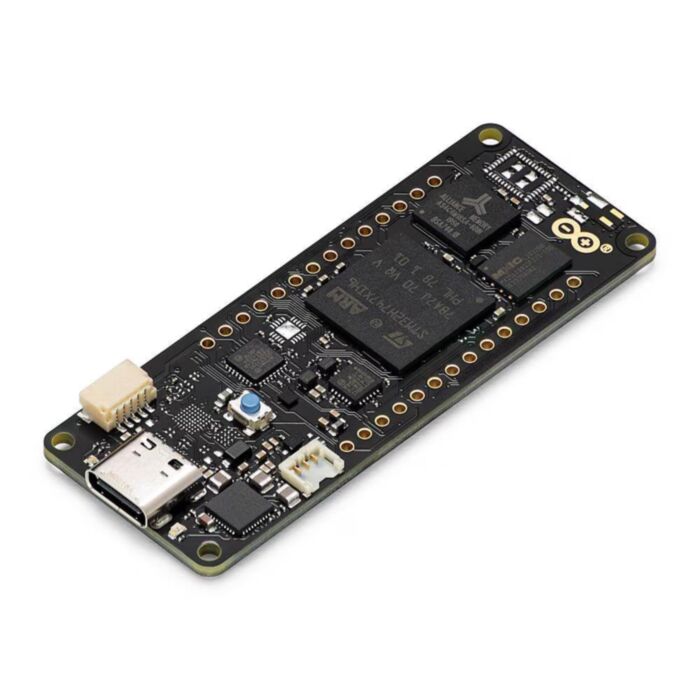

Portenta H7 Lite packs the processing power of a high-end dual-core MCU into a compact Portenta form factor, offering real-time control alongside high-level language and edge-AI capabilities. It suits projects that require fast, parallel processing but no onboard radio or advanced video/security extras.
Technical Specifications
Item | Specification |
---|---|
Processor | ST STM32H747XI dual-core MCU: Arm Cortex-M7 up to 480 MHz and Arm Cortex-M4 up to 240 MHz. |
On-chip memory | 2 Mbyte Flash; 1 Mbyte SRAM (core device). |
External memory | 8 Mbyte SDRAM and 16 Mbyte QSPI Flash (external). |
High-density connectors | Two 80-pin Portenta high-density connectors for carrier boards and shields. |
USB | USB-C programming/power connector with host and device operation; OTG and power delivery features supported on the connector. |
Security/crypto | Secure element / crypto chip options: ATECC608 and NXP SE050C2 on variants; secure storage and cryptographic acceleration supported. |
MKR compatibility | MKR-compatible header signals (PWM, ADC, SPI, UART, I2C) for compatibility with MKR-style accessories. |
Power | Integrated PMIC (NXP PF1550) with Li-Po charging and programmable I/O voltages; typical busy-loop and deep-sleep current values documented in the datasheet. |
Certifications | UKCA, CE, FCC and RoHS declarations listed for the Portenta family. |
