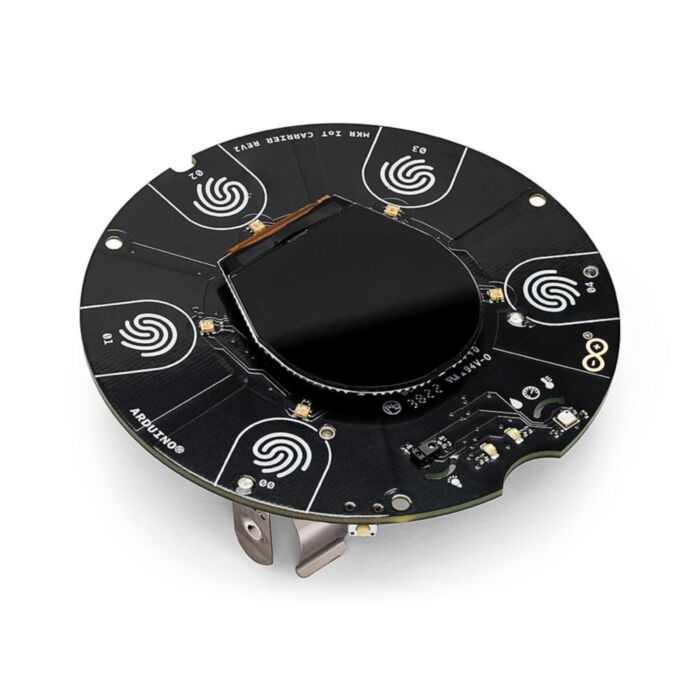

Arduino MKR IoT Carrier Rev2

SKU: ABX00073 Brand: Arduino

With this carrier in combination with any board from the MKR family, you can quickly create your next IoT project without any extra components. This...

$144.95 AUD, inc GST
$131.77 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 06 and Dec 10

Quantity Discounts:

  • 5-15 $126.50 (exc GST)
  • 15+ $123.86 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

With this carrier in combination with any board from the MKR family, you can quickly create your next IoT project without any extra components. This carrier has all you need in sensors and actuators to create cool projects connected to the Internet.

Using the MKR IoT Carrier Rev2 in combination with any board of the MKR family, you can quickly build:

  • Environment monitoring stations: Using the sensors on the carrier, you can map different phenomena around you. You can easily measure temperature, humidity, barometric pressure and air quality or detect the movement of the board, and in case you want to expand the sensor you can use any of the grove connectors to connect analog or I2C grove compatible modules. All this information can be stored in the SD card or sent directly to the Arduino IoT Cloud.
  • GUI IoT interface: Even if you want to visualize sensor data or design your own user interface, you can use the OLED color display to create your own navigation menus or use the LEDs and the buzzer for feedback.
  • Control external devices: Control electronic appliances up to 24 Volts using the two on-board relays. Either you want to turn on or off your reading lamp remotely through the Arduino IoT Cloud Remote app or use any of the sensor data to affect the behavior of the lamp.

Technical Specifications

Humidity, temperature barometric and VOC sensor BME688
IMU LSM6DSOX
Ambient light, proximity, color and gesture sensor APDS-9960
Capacitive buttons 5 (Qtouch Pad)
Actuators Buzzer, 5 RGB LEDs
24V Relays 2 (V23079)
Display KD013QVFMD002-01
Grove connectors 2 connected to analog pins (A0/A6), 1 connected to I2C
Micro SD card slot Micro SD card not included
Battey holder (Battery not included) 18650 Li-Ion rechargeable battery

Documentation
