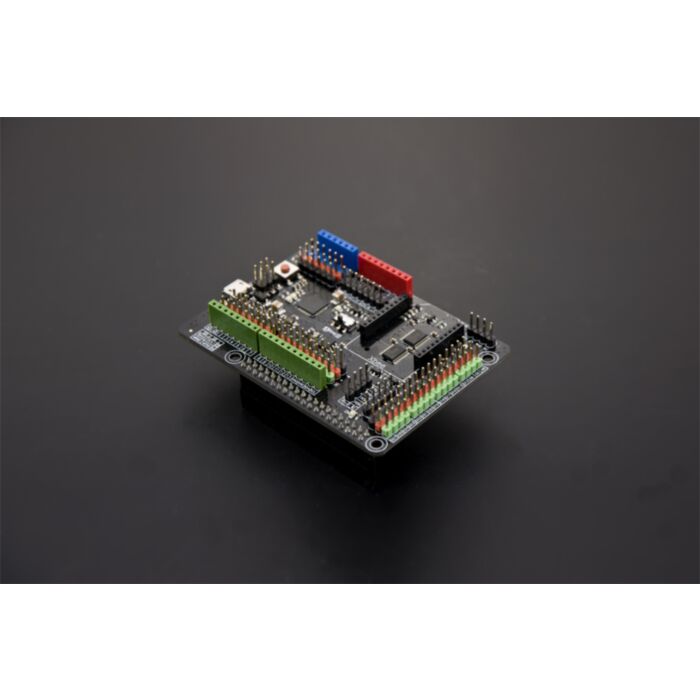

Arduino Expansion Shield for Raspberry Pi B+

Rating:

100% of 100

2 Reviews

SKU: DFR0327 Brand: DFRobot

$33.30 AUD, inc GST

$30.27 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 07 and Jan 13

Quantity Discounts:

10-25 $29.36 (exc GST)
25+ $28.76 (exc GST)

Restrictions apply to this equipment as it uses button/coin cell batteries:

The equipment is intended to be used in trades, professions or industries
The equipment is not intended for sale to the general public
The equipment is not intended to be used where children are present
You are aware that this equipment may not meet child safety testing requirements as it is not intended to be used by consumers or general public, but rather, is intended to be used in trades, professions or industries in conjunction with the limitations and restrictions listed above
You are aware that these restrictions are due to a change in A ustralian legislation in 2022 for button/coin cell batteries

Button Battery Warning

A declaration of use will need to be submitted during checkout.

Introduction

What's the difference between Pi and Arduino?

We all know Raspberry Pi is a mini-computer running on Linux operating system; while Arduino is a microcontroller running on simple I/Os. Both of them focuses on very different areas. Compared with Arduino, the Pi gets much better computing performance.

So What happens when a Pi meets an Arduino?

A simple example would be, when building a mobile robot, we use the Raspberry Pi to extend its vision and get a nice tiny monitor. Meanwhile, Arduino handle nicely with the motor driving part and delivers fast responses like obstacle avoidance. Because, without the OS, the response time of rapid changes on the Arduino is much shorter. Also the high performance Pi can deals much easily with wireless communications, imaging and running complex algorithm.

Therefore, with the Arduino and Pi together, you get a powerful "brain" and "cerebellum" for your project, at one time.

Specification

Onboard Microcontroller: ATmega32u4
Arduino Leonardo Chip
Arduino Compatible pin mapping
Compatible with All arduino standard shield and sensors
System Voltage: 5v
Arduino Digital I/O: 23
Arduino Analog I/O: 12
Raspberry Pi B+ GPIO: 16
Raspberry Pi B+ I2C: 1
Raspberry Pi B+ ID_I2C: 1
Raspberry Pi B+ SPI: 1
Raspberry Pi B+ TTL UART: 1
Dimension: 88mm x 56mm x 26mm

OPTIONAL PARTS

Relay Module V3.1 for IOT AC control
Analog pH Meter Kit for monitoring Water quality of your pool
SHT1x Humidity and Temperature Sensor
Motion Sensor for security and human detection
A nice and low cost LCD12864 display
2A Motor Shield for robot building
Dual Bipolar Stepper Motor Shield
GSM/GPRS and GPS Shield

Documents

Parts List

Arduino Expansion Shield for Raspberry Pi B+ x1
20cm micro USB cable x1
CR1220 button cell x1
