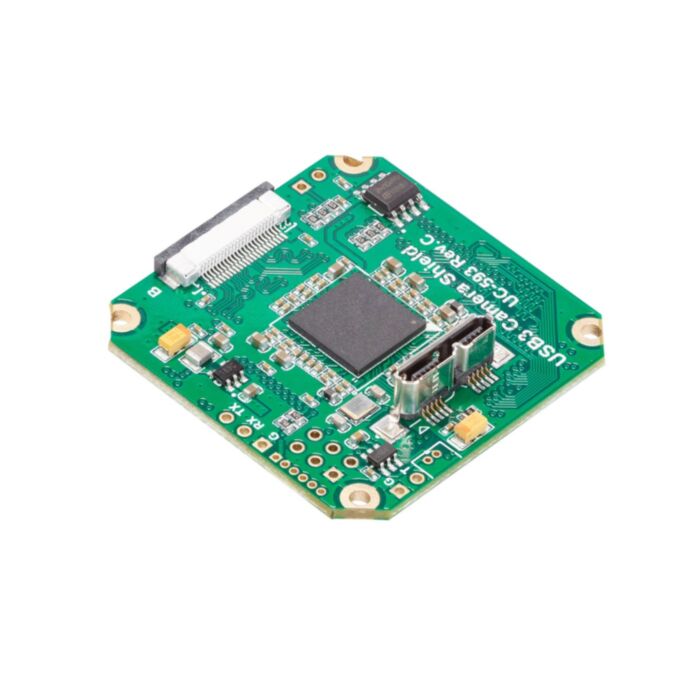

ArduCAM USB3.0 Shield Plus: High-Speed Multi-Camera Control Board for PC & Embedded Systems

SKU: AC-B0317 Brand: Arducam

Explore the versatile ArduCAM USB3.0 Camera Shield Plus, a high-performance USB camera control board for PCs and embedded systems, supporting a wide range of camera modules up to 21MP, featuring advanced MIPI camera support and enhanced USB3.0 bandwidth for robust imaging solutions.

$344.95 AUD, inc GST
$313.59 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 25th of Nov

Quantity Discounts:

  • 3-5 $301.05 (exc GST)
  • 5+ $291.64 (exc GST)
- +

6 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Overview

Arducam series USB camera shield is a general purpose USB camera control board for PC and embedded signal board computer. It hides the complex nature of the camera and provides the plug and play camera control interface as well as the ready to use SDK library and demo software source code. The Arducam supports variety camera modules from 0.3MP to 21MP or even higher.

Arducam USB3.0 Camera Shield Plus is the latest USB3.0 camera shields, it offers the improved performance and enhanced functions than the previous USB3.0 camera shield. It directly supports MIPI camera, supports RAW hardware decoding, and improves USB3.0 transmission bandwidth.It not only supports high resolution and high frame rate image sensors, but also supports stereoscopy camera and IRCUT control feature. With the given camera configuration files, user can switch between different cameras without any effort. It is the ideal solution for camera evaluation/testing, robot/drone, IoT, machine vision and scientific applications.

Features

  • Support DVP camera module( 8/10/12bitPixel color depth; RAW/YUV/RGB/JPG; VSYN,PCLK)
  • Support MIPI camera module( 1/2/4 Lane; RAW8/RAW10 hardware analysis; RAW/YUV/RGB/JPG ) up to 21MP
  • The maximum output bandwidth of USB3.0 is 360MB
  • Build-in IRCUT control (optional)
  • Provide free binary SDK library and demo software source code

Specifications

  • Bandwidth: 5-Gbps USB3.0 PHY
  • Camera Databus: 32bit@100MHz
  • I/O Voltage Standard: 3.3V
  • Connector: Micro-USB3.0
  • Size: 40 x 40 mm
  • Weight: 10g
  • Power Consumption: 5V/300mA
  • Operation Temperature: -10°C~+55°C



Table 1 Featured Camera Modules Supported

DVP camera

ResolutionFrame RateCamera ModuleSensor Vendor
1.2MP54fpsAR0134/AR0135Aptina
1.3MP30fpsMT9M001Micron
1.3MP15fpsMT9M112Micron
2MP15fpsMT9D111Micron
2MP15fpsOV2640Omnivision
2.3MP30fpsAR0234ONSemi
5MP15fpsMT9P001ONSemi
5MP15fpsOV5640/OV5642Omnivision
9MP9.7fpsMT9N001Micron
10MP7.5fpsMT9J001/MT9J003Aptina
14MP6fpsMT9F001Aptina

MIPI camera

ResolutionFrame RateCamera ModuleSensor Vendor
0.3MP120fpsOV7251Omnivision
1MP120fpsOV9281Omnivision
2MP60fpsOV2311/OG02B10Omnivision
5MP15fpsOV5640Omnivision
5MP15fpsOV5647Omnivision
8MP30fpsIMX219Sony
12.3MP24fpsIMX477Sony
13MP20fpsIMX135Sony
16MP18fpsIMX298Sony
18MP15fpsAR1820HSONSemi
21MP13fpsIMX230Sony

HiSPi camera

ResolutionFrame RateCamera ModuleSensor Vendor
14MP10fpsMT9F002Aptina

Table 2 Comparison among USB Camera Shield products


 ArduCAM USB2.0



Camera Shield (Rev.E)

ArduCAM USB3.0



Camera Shield

ArduCAM USB3.0



Camera Shield Plus

DVP Camerasupportsupport(function limited)support
MIPI Camerasupported(1/2/4 Lane;RAW/YUV/RGB/JPG)indirect support(Arducam



MIPI Adapter Board required)

support
Number of MIPI Lanes112 ( support single-lane display and dual-lane synthesis)
RAW8/RAW10 Hardware Analysisnot supportnot supportsupport
USB InterfaceUSB2.0USB3.0 (16 bit)USB3.0 (32 bit)
USB bandwidth40MB180MB360MB
IR-cutSupport (customization required)Support (customization required)Support (customization required)



Package Including

  • 1 pcs ArduCAM USB3.0 Camera Shield Plus
  • 1 pcs USB3.0 Cable

NOTE:

  • Camera module is not included, should order separately.

Documentation

USB3.0 Camera Shield Plus Datasheet

Posted: April 5, 2021

Introduction Arducam series USB camera shield is a general purpose USB camera control board for PC and embedded signal board computer. It hides the complex nature of the camera and provides the plug and play camera control interface as well as the ready to use SDK library and demo software source code. The Arducam supports variety camera modules from 0.3MP to 21MP or even higher. Arducam USB3.0 Camera Shield Plus is the latest USB3.0 camera shields, it offers the improved performance and enhanced functions than the previous USB3.0 camera shield. It directly supports MIPI camera, supports RAW hardware decoding, and improves USB3.0 transmission bandwidth.It not only supports high resolution and high frame rate image sensors, but also supports stereoscopy camera and IRCUT control feature. With the given camera configuration files, user can switch between different cameras without any effort. It is the ideal solution for camera evaluation/testing, robot/drone, IoT, machine vision and scientific applications. Application IoT cameras Robot cameras Wildlife cameras Machine vision  Scientific cameras Features Support single-lane DVP camera input Support 8/10/12 bit pixel color depth Support RAW/YUV/RGB/JPG and other formats Support VSYN, PCLK level adjustment Support dual-lane MIPI camera Read more…
