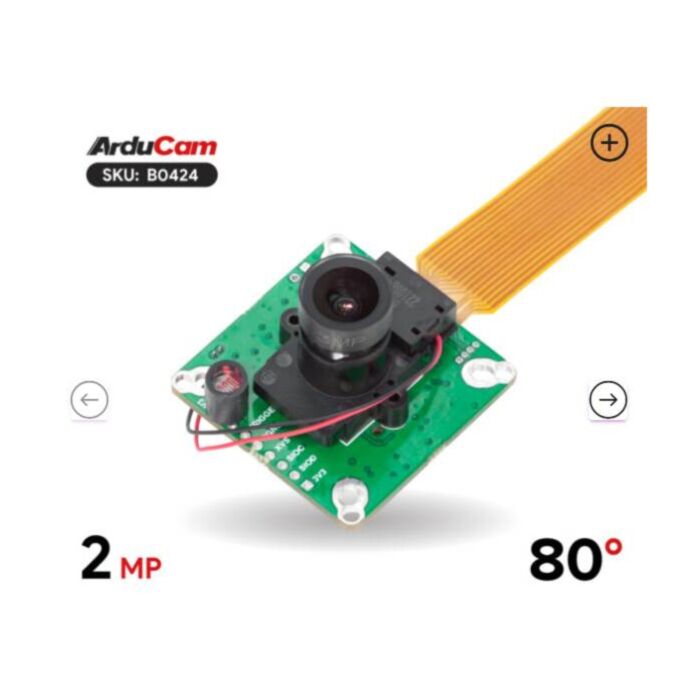

Arducam 2MP Ultra Low Light STARVIS IMX290 Motorzied IR-CUT Camera for Raspberry Pi

SKU: AC-B0424 Brand: Arducam

The camera uses the Sony Low Light STARVIS IMX290 sensor which is a diagonal 6.46 mm (Type 1/2.8) CMOS active pixel type solid state image sensor

$52.80 AUD, inc GST

$48.00 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

6+ $46.08 (exc GST)
12+ $44.64 (exc GST)

The camera uses the Sony Low Light STARVIS IMX290 sensor which is a diagonal 6.46 mm (Type 1/2.8) CMOS active pixel type solid state image sensor with square pixel array and 2.13 million effective pixels. The chip uses analog 2.9 V, digital 1.2 V, and interface 1.8 V. This highly sensitive low-light camera can capture extremely sharp images with minimal noise at extremely low light conditions. It features low power consumption and high functionality. It can achieve high sensitivity, low dark current and no smear. The sensor applies R, G, and B primary color mosaic filters, as well as a variable electronic shutter.

Applications

Surveillance cameras
FA cameras
Industrial cameras
Autonomous mobile robots, UGV/UAV, ADAS, etc.

Features

Input frequency: 74.25 MHz / 37.125 MHz
Pixels: Approx. 1920 (H) × 1080 (V) 2.07 million pixels
Maximum frame rate in Full HD 1080p mode: 30 fps
Wide Dynamic Range (WDR) function: Multiple exposure WDR, Digital Overlay WDR
10-bit/12-bit A/D converter
CSI-2 serial data output: 2 Lane, RAW10 / RAW12 output

Specifications

Sensor	SONY STARVIS IMX290
Optical Size	Type 1/2.8'' (Diagonal 6.46 mm)
Pixel Size	2.9µm×2.9µm
Shutter Type	Rolling Shutter
Number of the Active Pixels	1920x1080
Color Filter	Bayer RGB
Frame Rates	RAW10:1920x1080@46fps;1280x720@90fps RAW12:1920x1080@46fps;1280x720@90fps
Supported Platform	Pi 4/3/Zero/CM3/CM4
Output Format	RAW10/RAW12
Focus Type	Manual Focus
Lens Mount	M12 Mount
F.NO	1.6±10%
Effective Focal Length	4.3±5%mm
MOD.	2.0
Back Focal Length	5.43±0.2mm
Field of View(FOV)	80°H
IR Sensitivity	Motorized IR-cut
Camera Board Size	38mm x 38mm

Comparasion

Among the Sony STARVIS series sensors, IMX290, IMX462, and IMX327 are some of the more popular ones. Though they are all belong to the STARVIS series, there are some differences between them. Please see the following table about the similarities and differences:

Specifications	Sensor
Specifications	IMX462	IMX290	IMX327
Mega Pixels	2.10MP	2.07MP	2.07MP
Max Resolution	1920x1080	1920x1080	1920x1080
Optical Size	1/2.8''	1/2.8''	1/2.8''
Pixel Size	2.9µm×2.9µm	2.9µm×2.9µm	2.9µm×2.9µm
G Sensitivity*	10471	5486	10471
Max Frame Rate	120fps(sensor)	120fps(sensor)	90fps(sensor)
NIR Sensitivity(850nm)*	~1	~0.5	~1

G Sensitivity*: Gravity sensitivity is an important indicator of camera performance in low light conditions. Higher the G sensitivity, better is the low light performance.
NIR sensitivity*:NIR imaging performance is one of the most crucial features for smart surveillance, smart traffic monitoring, and agricultural applications.

If low light sensitivity is your key requirement, then choosing IMX462(B0423) and IMX327(B0425) will better suit your requirements
If you need a higher frame rate for your project, then the higher frame rate IMX462(B0423) and IMX290 (B0424) will be your first choice
Among the above three sensors, IMX462 has relatively high near-infrared sensitivity. If you need this feature more, it is recommended that you choose IMX462 (B0423)

Package Including

1 x IMX290 Motorized IR-CUT Camera Module
1 x 150mm 15pin to 22pin flex cable

Notes

This product uses an interchangeable M12 lens, for more options about M12 lens, please click:LK001
For any issues when using the camera, you can directly contact [email protected] .
If you have any custom requirements for this camera module, you can directly contact [email protected] for help.

Documentation

Used on Pi- Arducam IMX290 Low Light Camera
