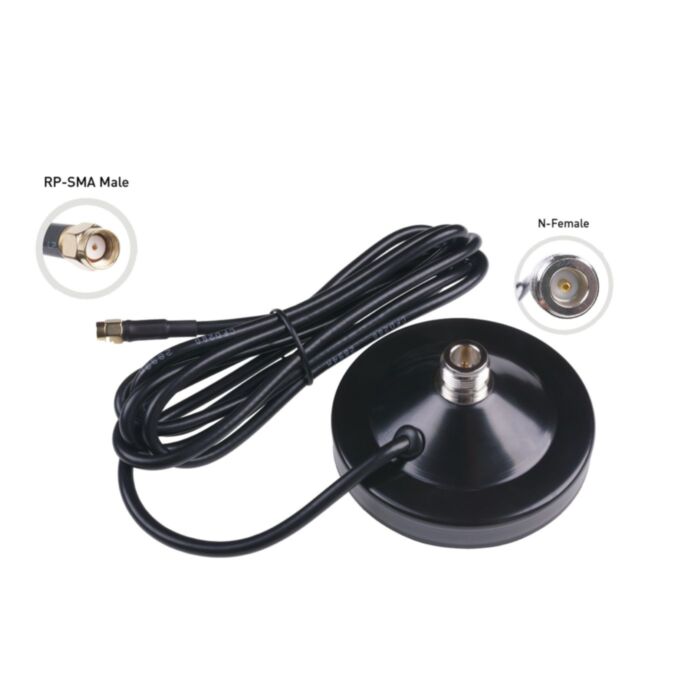

Antenna Magnetic Base; N Female to RP-SMA male - CFD200-Black-2m

SKU: SS321990855 Brand: Seeed Studio

N-type to SMARS Cable to connect LoRa Gateway to Fibreglass antenna and extend the coverage...

$77.05 AUD, inc GST

$70.05 AUD, exc GST

Available with a lead time
Expect dispatch between May 09 and May 12

Quantity Discounts:

6+ $67.25 (exc GST)
12+ $65.15 (exc GST)

Features

Magnetic base with 2m cable to extend the connection between an Antenna(N-type connector) and a Gateway(RP-SMA Female)
Gold plated brass surface connector
Length: 2m
Waterproof
CFD200 Cable (same functionality and quality with LMR200)
Can be used with SenseCAP gateways series including SenseCAP M1

When setting up a LoRa Network the positioning of the Gateway and the Antenna may strongly influence the coverage. When you use a fiberglass antenna to further improve the coverage, this antenna magnetic base with a 2m cable could enable you to extend the distance between the device and the antenna therefore you could have more positioning flexibilities. The base is magnetic, so you could attach it to a magnetic surface. It is also waterproof and can withstand harsh outdoor environments.

Applications

This antenna magnetic base is suitable for:

SenseCAP gateways including SenseCAP M1;
LoRa-E5 Dev Kit and LoRa-E5 mini;
Other devices which have RP-SMA female antenna connectors and connect to N-type connector antennas;

Specification

Electrical Characteristics

Frequency

DC0~6G

V.S.W.R.

<= 2.0

Max Input Power

>= 2 W

Polarization

Linear

Impedance

50 Ohm

Material & Mechanical Characteristics

Material of Radiator

Material of Plastic

Brass

Cable Type

CFD200

Connector Type

N-Female to RP-SMA Male

Environmental

Operation Temperature

- 40 °C~+ 85 °C

Storage Temperature

- 40 °C~+ 85 °C

Antenna Color Storage life

<2Year

Technical Details

1: Base

2: N Female Connector

3: CFD200 with a length of 2m

4: PVC

5: RP-SMA male Connector
