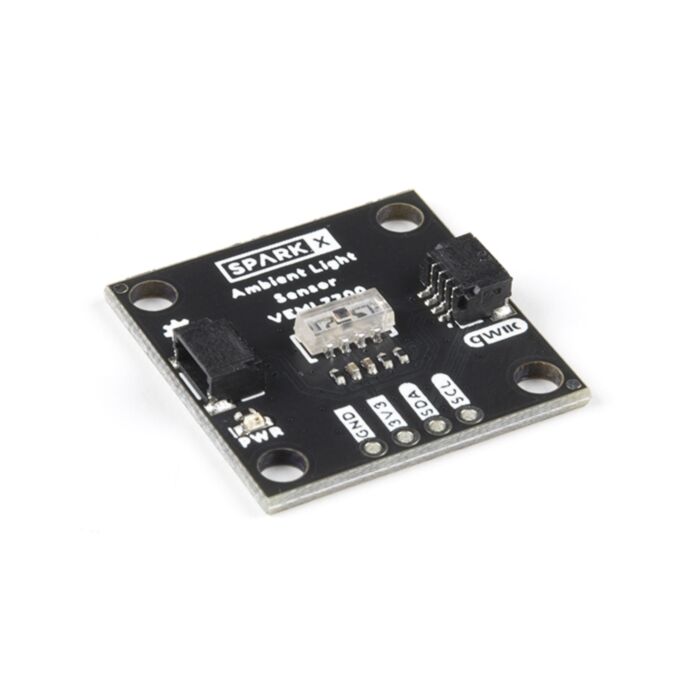

Ambient Light Sensor - VEML7700 (Qwiic)

SKU: SPX-18981 Brand: Sparkfun

Looking for a Qwiic sensor that can measure the ambient light level directly in lux? This is it! The VEML7700 is a high accuracy, 16-bit resolution, dig...

$11.35 AUD, inc GST

$10.32 AUD, exc GST

Quantity Discounts:

10+ $10.16 (exc GST)

Out of Stock

Looking for a Qwiic sensor that can measure the ambient light level directly in lux? This is it!

The VEML7700 is a high accuracy, 16-bit resolution, digital ambient light sensor in a miniature transparent 6.8 mm x 3.0 mm x 2.5 mm package. It includes a high sensitivity photodiode, a low noise amplifier, a 16-bit A/D converter and supports an easy to use I²C bus communication interface.

Filtron^TM technology adaption: close to real human eye response
O-Trim^TM technology adoption: ALS output tolerance = 10 %
16-bit dynamic range for ambient light detection from 0 lx to about 167 klx with resolution down to 0.005 lx/count
100 Hz and 120 Hz flicker noise rejection
Excellent temperature compensation
High dynamic detection resolution
Software shutdown mode control
High and low threshold windows with interrupt flags

Our Arduino Library converts the raw sensor data into lux, automatically compensating for the sensor's gain and integration time settings.

As usual, our breakout board includes:

Two Qwiic connectors
I²C breakout pins
I²C pull-up resistors (configurable)
Power LED (configurable)

Experimental Product: SparkX products are rapidly produced to bring you the most cutting edge technology as it becomes available. These products are tested but come with no guarantees. Live technical support is not available for SparkX products. Head on over to our forum for support or to ask a question.

Filtron^TM technology adaption: close to real human eye response
O-Trim^TM technology adoption: ALS output tolerance = 10 %
16-bit dynamic range for ambient light detection from 0 lx to about 167 klx with resolution down to 0.005 lx/count
100 Hz and 120 Hz flicker noise rejection
Excellent temperature compensation
High dynamic detection resolution
Software shutdown mode control
High and low threshold windows with interrupt flags
Supply voltage:
- 3.3V (TYP); 2.5V (MIN); 3.6V (MAX)
Typical current draw:
- Shut down: 0.5µA
- Refresh time 4100ms: 2µA
- Refresh time 100ms: 45µA
I²C address: 0x10 (unshifted)
