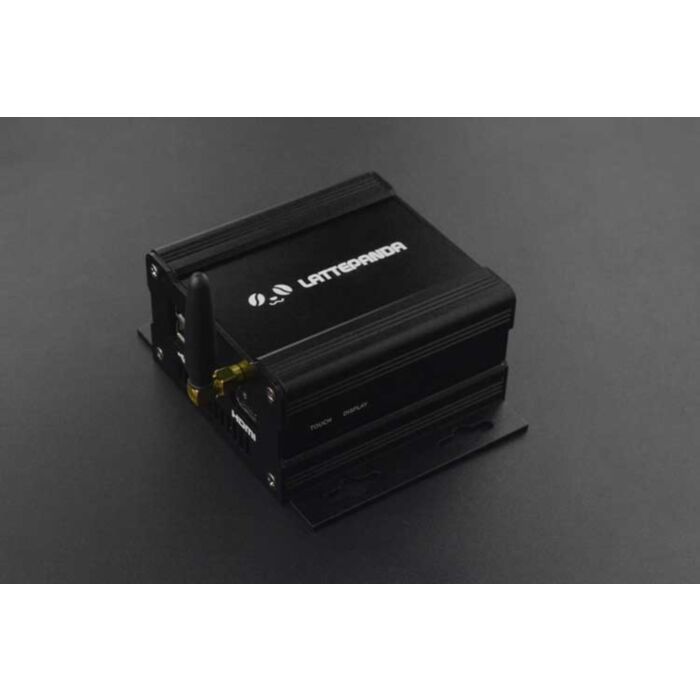

Aluminum Heatsink Case for LattePanda V1

SKU: FIT0677 Brand: DFRobot

This Aluminum Heatsink Case is an aluminum alloy enclosure made for the LattePanda V1 board. All-metal material with all black anodizing and sandblasting brings...

$70.05 AUD, inc GST

$63.68 AUD, exc GST

Available with a lead time
Expect dispatch between May 08 and May 14

Quantity Discounts:

6-12 $61.77 (exc GST)
12+ $60.50 (exc GST)

This Aluminum Heatsink Case is an aluminum alloy enclosure made for the LattePanda V1 board. All-metal material with all black anodizing and sandblasting brings the advantages of hardness and wear resistance, and makes the case looks more elegant sedate. A set of external enhancement antennas is provided inside the box to introduce external Wi-Fi and Bluetooth signals into the box. The wing-shaped fixing plate enables the shell to be placed on the table or fixed on the wall stable.

The case is also included with a heat dissipation module made by a complete aluminum alloy at the bottom. The 12mm long fins on the heatsink can take away the heat quickly. After testing, the mainboard can be operated under full loading in a 24°C environment, so that the mainboard will not run slow due to overheating.

Meanwhile, learn from the design of modularization, we make the case easy to customize. Using the different length and width of the surface panels made by yourself, it can easily accommodate the official or third-party expansion shield. To convenient for customization, the LattePanda team also open the design drawing of the surface panel to users.

If you have customized cooperation and batch demand, please contact us or [email protected] for further discussion.

Features

Passive heatsink
All-metal material
External antenna
Wall-mounted

Specification

Dimensions: 90 mm * 116.5 (excluding wing piece: 86) mm * 48.5mm
Material: Aluminum alloy
Weight: 450g
Thermal Pad: 6 W/m.K
Antenna frequency: 2.4GHz
Compatible motherboard: LattePanda V1

Documents

Parts List

Case parts x1
Heat dissipation module x1
Antenna x1
IPEX to SMA adapter x1
Thermal Pad x2
