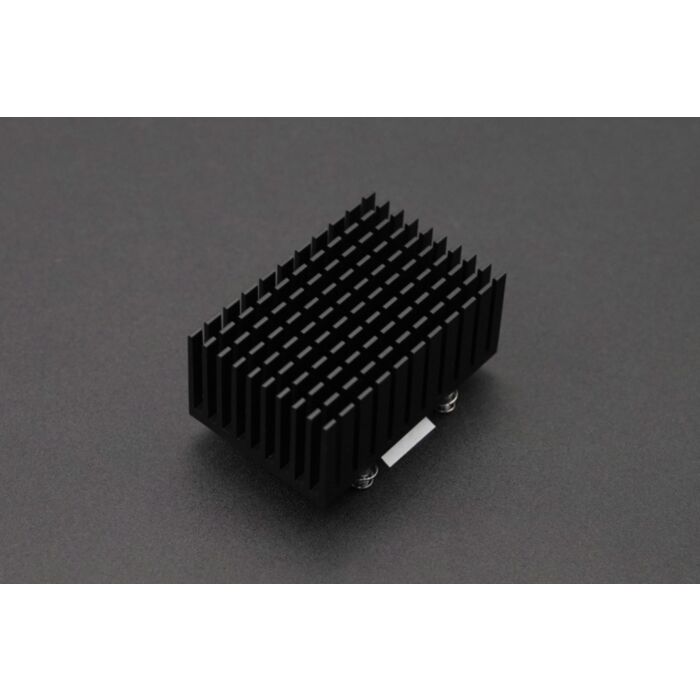

Aluminum Fanless Heatsink for LattePanda Mu Compute Module

SKU: FIT0989 Brand: DFRobot

The aluminum alloy passive heatsink provides comprehensive protection for LattePanda Mu, allowing users to expand and connect to other carrier boards, and...

Special Price $11.30 AUD, inc GST

Regular Price $14.53 AUD, inc GST

$10.27 AUD, exc GST

Special pricing ends 05 August 2024

* this special may end earlier than shown

Available with a lead time
Expect dispatch between May 16 and May 20

The LattePanda Mu Fanless Heatsink is a high-quality cooler designed specifically for the LattePanda Mu Compute Module. It allows for perfect integration between LattePanda Mu and the carrier board, enabling you to freely build various DIY projects. This heatsink ensures stable temperature for your LattePanda Mu, and the heat dissipation fins quickly absorb the heat generated by the CPU. This simple yet effective method keeps your LattePanda Mu in its best condition at all times! The aluminum alloy housing has excellent thermal conductivity and comes with high-quality phase change materials for even better heat dissipation performance.

Installation steps:

1. Remove the three spring screws of the heatsink and peel off the phase change material protective film.

2. Align the CPU of the LattePanda Mu with the phase change material of the heatsink and align the screw holes.

3. Tighten the three spring screws in a circular motion until the installation is complete. Be careful not to fully tighten one screw before loosening another, as it may cause damage to the CPU chip due to uneven force.

Note: Compatible solely with the LattePanda Mu model

1. When installing or removing the heatsink, the LattePanda Mu must be powered off

2. During use, please avoid direct contact between your skin and the case to prevent burns

Aluminum Fanless Heatsink and LattePanda Mu Compute Module

Features

All-metal material

Wall-mounted

Fanless

Passive cooling aluminum alloy heatsink

Aluminum alloy material, corrosion-resistant and durable

Specification

Compatible: LattePanda Mu

Heat dissipation capacity: TDP 6W, temperature rise of 35°C; TDP 10W, temperature rise of 60°C

Dimensions: 70 * 45.5 * 33mm

Material: Aluminum alloy

Weight: 100g

Parts List

LattePanda Mu Fanless Heatsink x1
