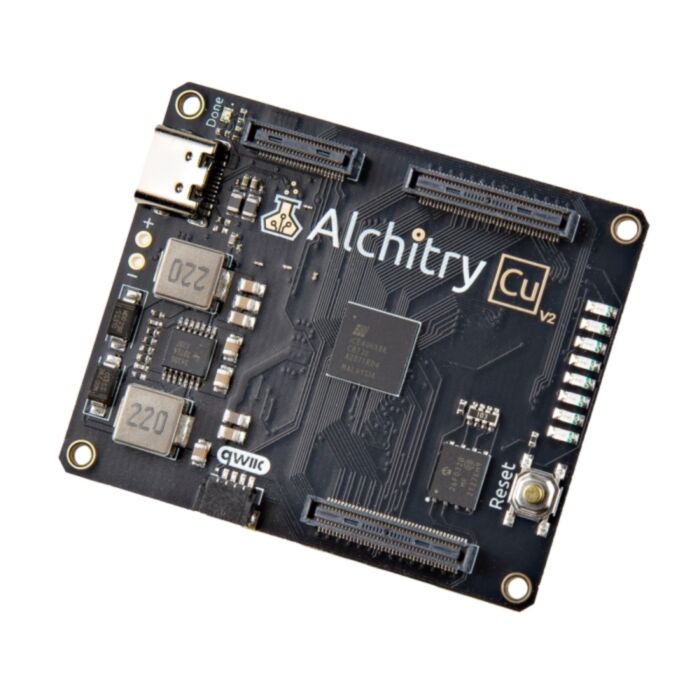

Alchitry Cu V2

SKU: DEV-27875 Brand: Sparkfun

The same features as the previous Cu but in the new Alchitry V2 format (smaller board, new connectors). If you are not needing a lot of power to start...

$104.95 AUD, inc GST

$95.41 AUD, exc GST

Available with a lead time
Expect dispatch between Aug 29 and Sep 01

Quantity Discounts:

5+ $92.55 (exc GST)
25+ $90.64 (exc GST)
100+ $86.82 (exc GST)

The same features as the previous Cu but in the new Alchitry V2 format (smaller board, new connectors).

If you are not needing a lot of power to start your FPGA adventure, or are looking for a more economical option, the Alchitry Cu V2 FPGA Development Board might be the perfect option for you! The Alchitry Cu is a "lighter" FPGA version than the Alchitry Au but still offers something completely unique. FPGAs, or Field-Programmable Gate Arrays, are an advanced development board type for engineers and hobbyists alike to experience the next step in programming with electronics. The Cu truly exemplifies the trend of more affordable and increasingly powerful FPGA boards arriving each year. This board is a fantastic starting point into the world of FPGAs and the heart of your next project. Finally, now that this board is built by SparkFun, Sparkfun added a Qwiic connector for easy I²C integration!

The Alchitry Cu uses the Lattice iCE40 HX FPGA with 7680 logic cells and is supported by the open source tool chain Project IceStorm. The Cu possesses 79 IO pins with eight general purpose LEDs; a 100MHz on-board clock that can be manipulated internally by the FPGA; a USB-C connector to configure and power the board; and a USB to serial interface for data transfer.

Notice: Lattice offers free licenses to hobbyists, enthusiasts, community educators & start-up companies. If this describes you, please contact them to register for a free iCEcube2 license with subject “New iCEcube2 License Request”.

By adding stackable expansion boards similar to shields or HATs called "Elements," the Alchitry Cu is able to expand its own hardware capabilities by adding prototyping spaces, buttons, LEDs, and more!

Features & Specs

Lattice iCE40-HX8K FPGA - 7680 logic elements
79 IO pins (3.3V logic level)
USB-C to configure and power the board
Eight general purpose LEDs
One button (typically used as a reset)
100MHz on-board clock (can be multiplied internally by the FPGA)
Powered with 5V through USB-C port, 0.1" holes, or headers
USB to serial interface for data transfer (up to 12Mbaud)
Qwiic Connector
Dimensions of 65mm x 45mm
