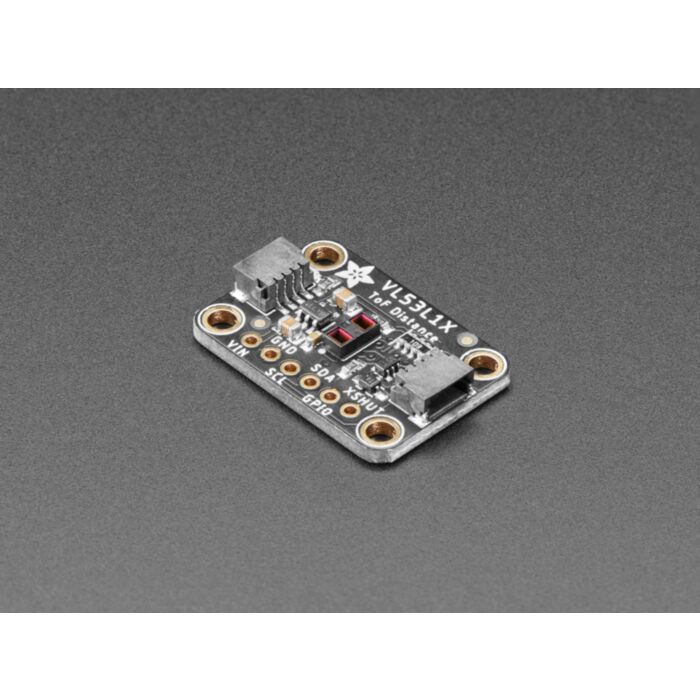

Adafruit VL53L1X Time of Flight Distance Sensor - ~30 to 4000mm - STEMMA QT / Qwiic

The Adafruit VL53L1X Time of Flight Distance Sensor (also known as VL53L1CX) is a Time of Flight distance sensor that has a massive 4 meter range and LIDAR-like precision. The sensor contains a very tiny invisible laser source and a matching sensor. The VL53L1X can detect the "time of flight", or how long the light has taken to bounce back to the sensor.

Since it uses a very narrow light source, it is good for determining the distance of only the surface directly in front of it. Unlike sonars that bounce ultrasonic waves, the 'cone' of sensing is very narrow. Unlike IR distance sensors that try to measure the amount of light bounced, the VL53L1X is much more precise and doesn't have linearity problems or 'double imaging' where you can't tell if an object is very far or very close.

This is the 'next generation' of the VL53L0X ToF sensor and can handle about ~30 to 4000mm of range distance, with up to 50Hz update rate. If you need an even smaller/closer range, check out the VL6180X which can measure 5mm to 200mm and also contains a light sensor.

The sensor is small and easy to use in any robotics or interactive project. Since it needs 2.8V power and logic Adafruit put the little fellow on a breakout board with a regulator and level shifting. You can use it with any 3-5V power or logic microcontroller with no worries. Works great with the 3.3V logic level of a Feather or Raspberry Pi, or the 5V level of a Metro 328 or Arduino Uno, this breakout is ready to work with most common microcontrollers or SBCs. and since it speaks I2C, you can easily connect it up with two data wires plus power and ground.

As if that weren't enough, Adafruit have also added SparkFun qwiic compatible STEMMA QT connectors for the I2C bus so you don't even need to solder. Just wire up to your favorite micro with a plug-and-play cable to get 6-DoF data ASAP. For a no-solder experience, just wire up to your favorite micro, like the STM32F405 Feather using a STEMMA QT adapter cable. The Stemma QT connectors also mean the VL53L1X can be used with our various associated accessories. QT Cable is not included, but Adafruit have a variety in the shop

Communicating to the sensor is done over I2C with an API written by ST, so it's not too hard to port it to your favorite microcontroller. Adafruit have written a wrapper library for Arduino so you can use it with any of your Arduino-compatible boards.

Technical Details

VL53L1CX specifications:

• Emitter: 940 nm invisible laser (Class1)
• SPAD (single photon avalanche diode) receiving array with integrated lens
• FlightSense™ ranging sensor for fast and accurate long distance ranging
• Up to 400 cm distance measurement
• Up to 50 Hz ranging frequency
• Typical full field-of-view (FoV): 27 °
• Programmable region-of-interest (ROI) size on the receiving array, allowing the sensor FoV to be reduced
• Programmable ROI position on the receiving array, providing multizone operation control from the host
• Can be hidden behind many cover window materials
• I²C interface (up to 400 kHz)
• Shutdown and interrupt pins
• Default I2C address 0x29 (can be changed in software by using shutdown pin to disable other sensors on the same bus)

Product Dimensions: 25.5mm x 17.5mm x 4.6mm / 1.0" x 0.7" x 0.2"

Product Weight: 1.8g / 0.1oz
