Adafruit RP2350 22-pin FPC HSTX to DVI Adapter for HDMI Displays

SKU: ADA6055 Brand: Adafruit
You may have noticed that our RP2350 Feather has an FPC output connector on the end for accessing the HSTX (High Speed Transmission) peripheral. This new...
$9.25 AUD, inc GST
$8.41 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

  • 10+ $8.07 (exc GST)
  • 25+ $7.82 (exc GST)
- +

2 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

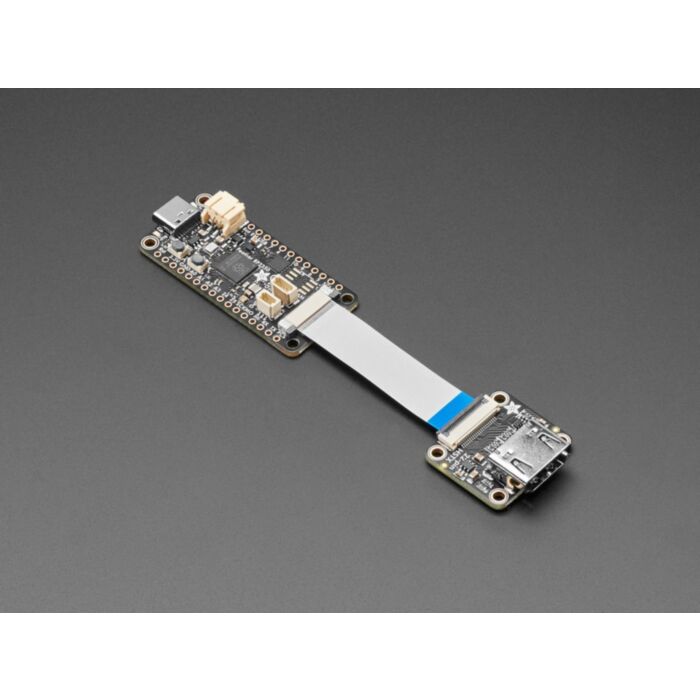

You may have noticed that Adafruit's RP2350 Feather has an FPC output connector on the end for accessing the HSTX (High Speed Transmission) peripheral. This new capability, not available on the RP2040, is specifically designed to allow the RP2350 chip drive DVI displays really easily! Historically you could use DVI on the RP2040 by mashing together some overclocking and a lot of PIO - it works but its quite hacky. The HSTX peripheral is streamlined, and doesn't require PIO or overclocking and there's a lot more RAM on the RP2350.

If you want to try out HSTX to drive an HDMI monitor or display, this dongle is what you need to take HSTX out and give you a connector with proper level shifting and signal conditioning. Simply connect a 22 pin FPC cable between the Feather RP2350 and Adafruit RP2350 22-pin FPC HSTX to DVI Adapter for HDMI Displays then load DVI output code. In CircuitPython, Adafruit have support for 320x240 pixels at 16-bit color, which gets pixel doubled to 640x480. Or, if you're willing to cut some colorspace to save RAM, you can get true 640x480 resolution at 4 / 8 bit color, or 1 / 2 bit grayscale.

The eight HSTX lines are connected to the differential Clock (IO #14 & 15), Lane0 (#18, 19), Lane1 (#16, #17), and Lane2 (#12, #13) connections. I2C is connected as well so you can read the display EEPROM. Hot-plug-detect is connected to IO #11 on the Feather, but can be disconnected by cutting a jumper on the bottom. Ditto for CEC which Adafruit connect by default to IO #10.

Each order comes with one DVI adapter board. 22-pin FPC cable is not included, so be sure to get one too!

Technical Details

Product Dimensions: 25.9mm x 24.9mm x 7.8mm / 1.0" x 1.0" x 0.3"

Product Weight: 4.3g / 0.2oz

    RoHS 2 2011 65 EU CompliantRoHS 2 2015 863 EU Compliant
