Adafruit NeoPixel Breakout with JST SH Connectors

SKU: ADA5975 Brand: Adafruit
This little breakout makes it easy to add a single NeoPixel to a project, with mounting holes and a pluggable connector. The PCB is less than...
$3.70 AUD, inc GST
$3.36 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 02 and Dec 05

Quantity Discounts:

  • 10-25 $3.23 (exc GST)
  • 25+ $3.13 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

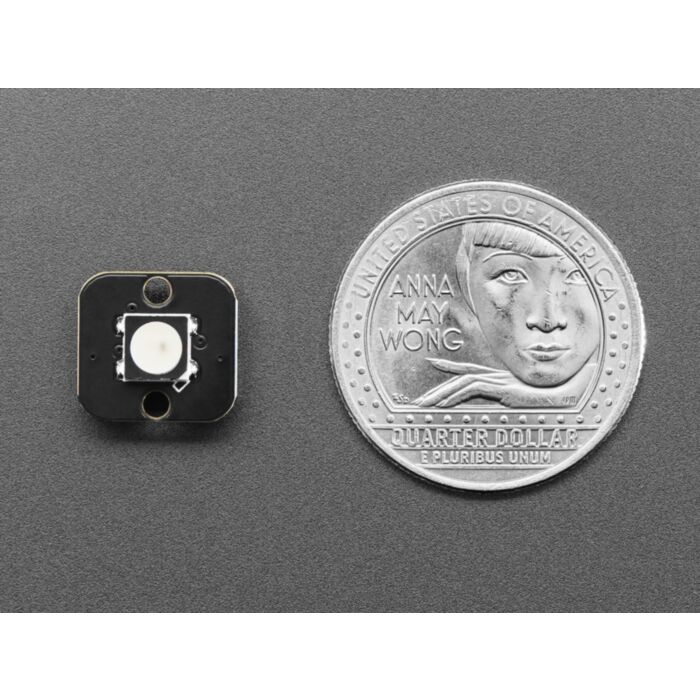

This little breakout makes it easy to add a single NeoPixel to a project, with mounting holes and a pluggable connector. The PCB is less than 0.5"x0.5" and comes with two 3-pin JST SH 1mm pitch connectors for input and output. On the opposite side, a 5050 (5mm square) classic RGB NeoPixel that can be powered and controlled with 3.3V or 5V power.

The two mounting holes are M2 size and have clearance for the screw head, or could be used for sewing onto a fabric backing or attaching to a small model. Of course this design will never be as affordable as a pre-made strand with dozens of LEDs, but there's probably some time it would be useful - especially since it can be easily swapped out.

Comes as a single NeoPixel, no cables included so check out Adafruit's JST SH compatible cables in plug or socket.

Technical Details

Product Dimensions: 12.3mm x 11.3mm x 6.2mm / 0.5" x 0.4" x 0.2"

Product Weight: 0.7g / 0.0oz

RoHS 2 2011 65 EU CompliantRoHS 2 2015 863 EU Compliant
