Flora RGB Smart NeoPixel version 2 - Sheet of 20
Available with a lead time
Expect dispatch between Nov 25 and Nov 28
Quantity Discounts:
- 10-25 $43.47 (exc GST)
- 25+ $42.57 (exc GST)

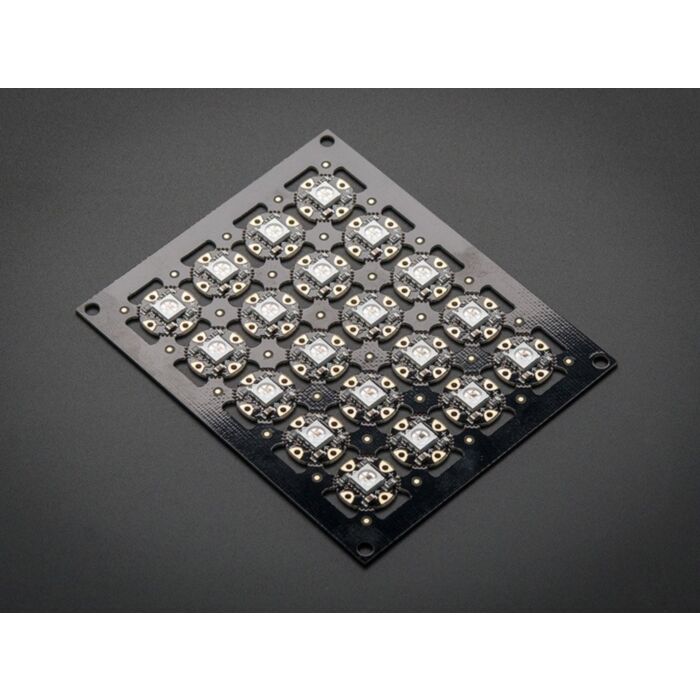

So, you want lots and lots of NeoPixels? And you want them for less? Not a problem! Here's a sheet of Flora NeoPixels fresh from the (reflow) oven. Cut them off as you need 'em and save a pretty penny while you're at it.
Each order comes with 20 pixels on a sheet. If you want a smaller number, They also have them in packs of 4. We suggest cutting them out with diagonal cutters or heavy-duty scissors.
What's a wearable project without LEDs? Adafruit's favorite part of the Flora platform is these tiny smart pixels. Designed specifically for wearables, these updated Flora NeoPixels have ultra-cool technology: these ultra-bright LEDs have a constant-current driver cooked right into the LED package! The pixels are chainable - so you only need 1 pin/wire to control as many LEDs as you like. They're easy to sew, and the chainable design means no crossed threads.
These pixels have full 24-bit color ability with PWM taken care of by the controller chip. Since the LED is so bright, you need less current/power to get the effects you want. The driver is constant current so it's OK if your battery power changes or fluctuates a little.
Each pixel draws as much as 60mA (all three RGB LEDs on for full brightness white). In theory, the Flora can drive up to 500 pixels at 30 FPS (it will run out of RAM after that). However, after about 10 pixels (or if the distance between pixels is more than an inch or two) the resistance of the thread can affect the power supply. For large quantities of pixels over 10, you may want to consider using stranded core wire or copper braid to provide a "power bus" for the pixels - the current draw will add up fast!
Check out NeoPixel Uberguide for everything you could ever want to know (and more)!
Flora RGB Smart Neo Pixel version 2 - Sheet of 20 (11:46)
Technical Details
- 0.5" (12.5mm) diameter circle PCB, 0.1" (2.5mm) total thickness
- 800 KHz speed protocol
- Chainable design
- 5-9VDC power (can run at 3.5V but color will be dimmed), constant current 18.5mA per LED (~55mA max total per pixel)
- EagleCAD PCB files and Fritzing Library available in the NeoPixel tutorial
Head to the Adafruit Learning System for the following FLORA tutorials:
