NeoKey 1x4 QT I2C - Four Mechanical Key Switches with NeoPixels - STEMMA QT / Qwiic

SKU: ADA4980 Brand: Adafruit

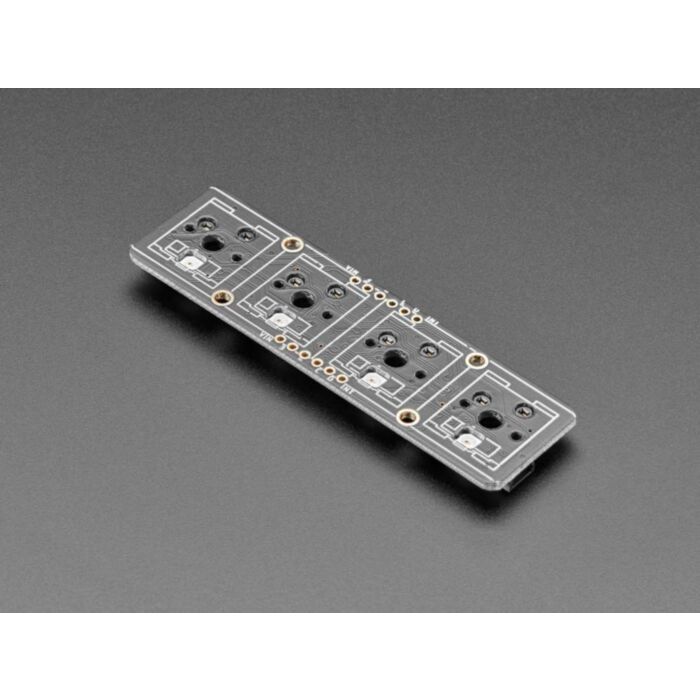

The only thing better than a nice mechanical key is, perhaps, FOUR mechanical keys that also can glow any color of the rainbow - and that's what the Adafruit NeoKey 1x4 QT I2C Breakout will let you do! This longgg 3" x 0.8" PCB fits four Cherry MX or compatible switches and make it easy to use with a breadboard/perfboard or with a STEMMA QT (Qwiic) connector for instant I2C connectivity on any platform.
$20.20 AUD, inc GST
$18.36 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

  • 10-25 $17.63 (exc GST)
  • 25+ $17.08 (exc GST)
- +

2 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The only thing better than a nice mechanical key is, perhaps, FOUR mechanical keys that also can glow any color of the rainbow - and that's what the Adafruit NeoKey 1x4 QT I2C Breakout will let you do! This longgg 3" x 0.8" PCB fits four Cherry MX or compatible switches and make it easy to use with a breadboard/perfboard or with a STEMMA QT (Qwiic) connector for instant I2C connectivity on any platform.

The breakout has four Kailh sockets, which means you can plug in any MX-compatible switch instead of soldering it in. You may need a little glue to keep the switch in place: hot glue or a dot of epoxy worked fine for us. Each key also has a reverse-mount NeoPixel pointing up through the spot where many switches would have an LED to shine through.

A microcontroller is pre-programmed with Adafruit's seesaw firmware so button presses and NeoPixel-controlling is done all over I2C. You can even connect multiple board by chaining the I2C and soldering closed the I2C address jumpers - with four jumpers you can have up to 16 of these boards on a single I2C bus. Adafruit have Arduino and CircuitPython/Python libraries for controlling the NeoKey 1x4's so you can use any microcontroller/computer for quick creation of a custom macropad.

You can also fit the breakouts onto a breadboard if you like - with two sets of breakout pads, there's plenty of flexibility for any kind of use. There are two rows of 6-pin contacts on a 0.1" grid on both sides. Solder in both sides for mechanical stability.

Please note, each order comes with one assembled and programmed PCB but no switches or keycaps. Soldering is required to attach the header for breadboard use, you may also need to solder jumpers closed to connect multiple boards together. A microcontroller is required to drive this board, it isn't stand-alone. Keys & keycaps are not included! Use any MX-compatible switch: Kailh, Gateron, etc all work!

Technical Specifications

  • Product Dimensions: 76.5mm x 21.5mm x 4.6mm / 3.0" x 0.8" x 0.2"
  • Product Weight: 6.0g / 0.2oz

This product is listed in:

Components & Parts>Switches>Other
