Adafruit MCP9600 I2C Thermocouple Amplifier - K, J, T, N, S, E, B and R Type T

SKU: ADA4101 Brand: Adafruit
Thermocouples are very sensitive, requiring a good amplifier with a cold-compensation reference. The Adafruit MCP9600 does all that for you, and can be easily interfaced...
$31.35 AUD, inc GST
$28.50 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

  • 10-25 $27.65 (exc GST)
  • 25+ $27.07 (exc GST)
- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Thermocouples are very sensitive, requiring a good amplifier with a cold-compensation reference. The Adafruit MCP9600 does all that for you, and can be easily interfaced with any microcontroller or single-board-computer with I2C. Inside, the chip handles all the analog stuff for you, and can interface with just about any thermocouple type: K, J, T, N, S, E, B and R type are all supported! You can also set various alerts for over/under temperature, and read the thermocouple (hot) temperature and the chip (cold) temperature. All this over common I2C

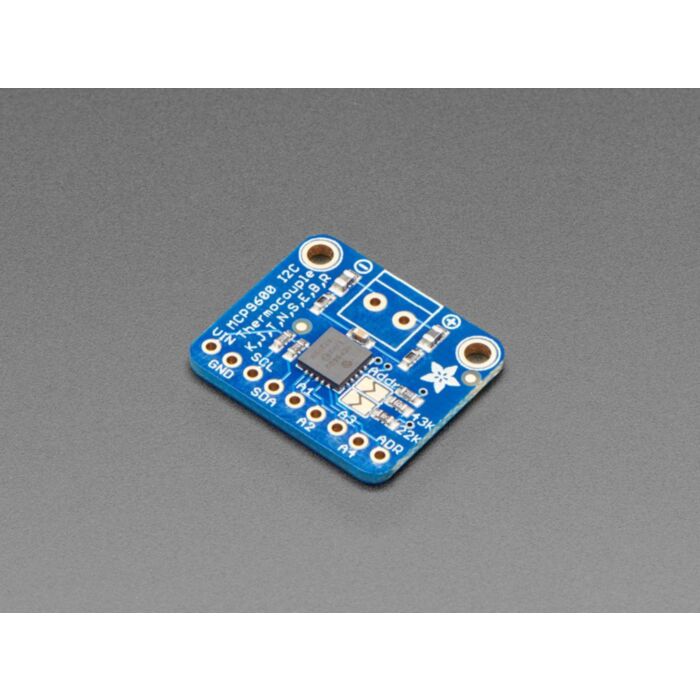

This breakout board has the chip itself, a 3.3V regulator and level shifting circuitry, all assembled and tested. Works great with 3.3V or 5V logic. Comes with a 2 pin terminal block (for connecting to the thermocouple) and pin header (to plug into any breadboard or perfboard). Match it up with Adafruit's 1m K-type thermocouple.

  • Works with any K, J, T, N, S, E, B and R type thermocouple
  • Datasheet rated for:K Type: -200°C to +1372°CJ Type: -150°C to +1200°CT Type: -200°C to +400°CN Type: -150°C to +1300°CE Type: -200°C to +1000°CS Type: +250°C to +1664°CB Type: +1000°C to +1800°CR Type: +250°C to +1664°C
  • Resolution of ±0.0625 °C - note that K thermocouples have about ±2°C to ±6°C accuracy
  • Internal temperature reading
  • 3.3 to 5v power supply and logic level compliant
  • I2C data connection

Technical Details

Product Dimensions: 24.3mm x 20.3mm x 2.6mm / 1.0" x 0.8" x 0.1"

Product Weight: 1.7g / 0.1oz
