Assembled Adafruit FeatherWing OLED - 128x64 OLED Add-on - STEMMA QT / Qwiic

SKU: ADA6313 Brand: Adafruit

A Feather board without ambition is a Feather board without FeatherWings! This is the FeatherWing 128x64 OLED: it adds a gorgeous 128x64 monochrome OLED...

Special Price $25.26 AUD, inc GST

Regular Price $32.92 AUD, inc GST

$22.96 AUD, exc GST

Special pricing ends 21 September 2025

* this special may end earlier than shown

Available with a lead time
Expect dispatch between Jul 04 and Jul 08

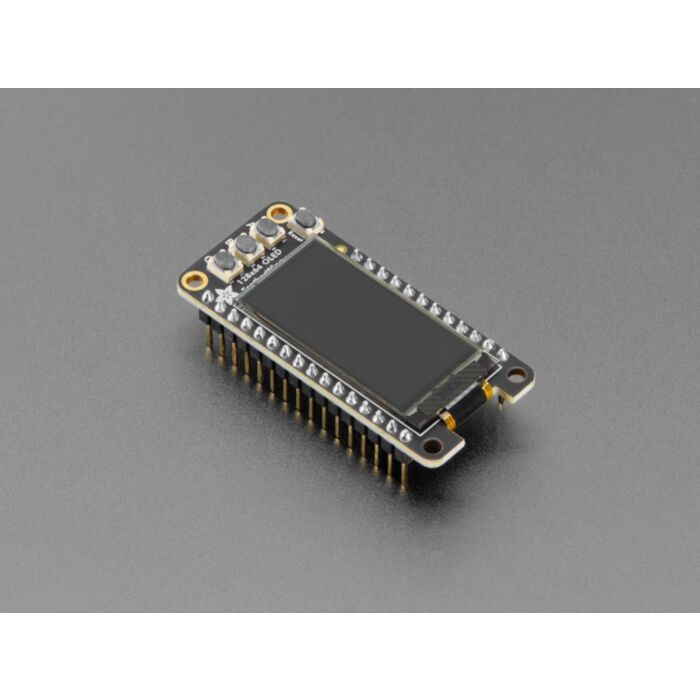

A Feather board without ambition is a Feather board without FeatherWings! This is the FeatherWing 128x64 OLED: it adds a gorgeous 128x64 monochrome OLED plus 3 user buttons to any Feather main board. Comes fully assembled so you can connect the FeatherWing on top of your Feather board and let the board take flight, no soldering required!

These displays are small, only about 1.3" diagonal, but very readable due to the high contrast of an OLED display. This screen is made of 128x64 individual white OLED pixels, and because the display makes its own light, no backlight is required. This reduces the power required to run the OLED, and is why the display has such high contrast; Adafruit really like this miniature display for its crispness! They also toss on a reset button and three mini tactile buttons called A B and C, so you can add a mini user interface to your feather. If you've used Adafruit's 128x32 OLED FeatherWing, you'll be happy to know that this FeatherWing is pin-compatible for a quick and easy upgrade. Note that you will need new code since the OLED driver is SH1107, not SSD1306.

The display uses only I2C, so you can easily connect it up with just two pins (plus reset, power, and ground!). There's a reset button on the top. Adafruit have even included a SparkFun qwiic-compatible STEMMA QT connector for the I2C bus so that you can plug and play any of Adafruit's STEMMA QT, qwiic, or Grove I2C sensors and device peripherals! Please note that you cannot use this Wing itself as a STEMMA peripheral with only a STEMMA cable connected; it is meant only to be used as a FeatherWing, with all pins soldered & plugged/connected to the Feather driver.

Tested working with all Feather boards. The OLED uses only the two I2C pins on the Feather plus reset, and you can pretty much stack it with any other FeatherWing, even ones that use I2C since that is a shared bus. This display is an SH1107, which has both Arduino library and CircuitPython support. To use it, check out Adafruit's tutorial! It has schematics, datasheets, files, and code examples.

This embedded content is from a site (www.youtube.com, flickr.com, etc) that does not comply with the Do Not Track (DNT) setting now enabled on your browser.

Clicking through to the embedded content will allow you to be tracked by the embed provider.

This embedded content is from a site (www.youtube.com, flickr.com, etc) that does not comply with the Do Not Track (DNT) setting now enabled on your browser.

Clicking through to the embedded content will allow you to be tracked by the embed provider.

Technical Details

Product Dimensions: 52.0mm x 23.0mm x 11.8mm / 2.0" x 0.9" x 0.5"

Product Weight: 8.1g / 0.3oz

Learn

Primary Guide: Adafruit 128x64 OLED FeatherWing Easily add a gorgeous 128x64 OLED to your Feather project!
